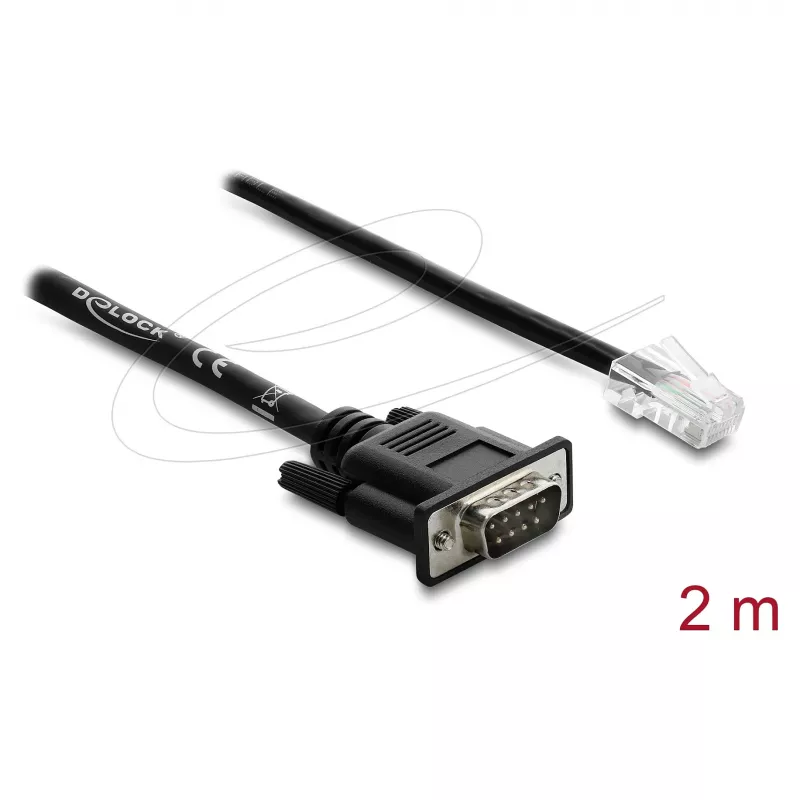

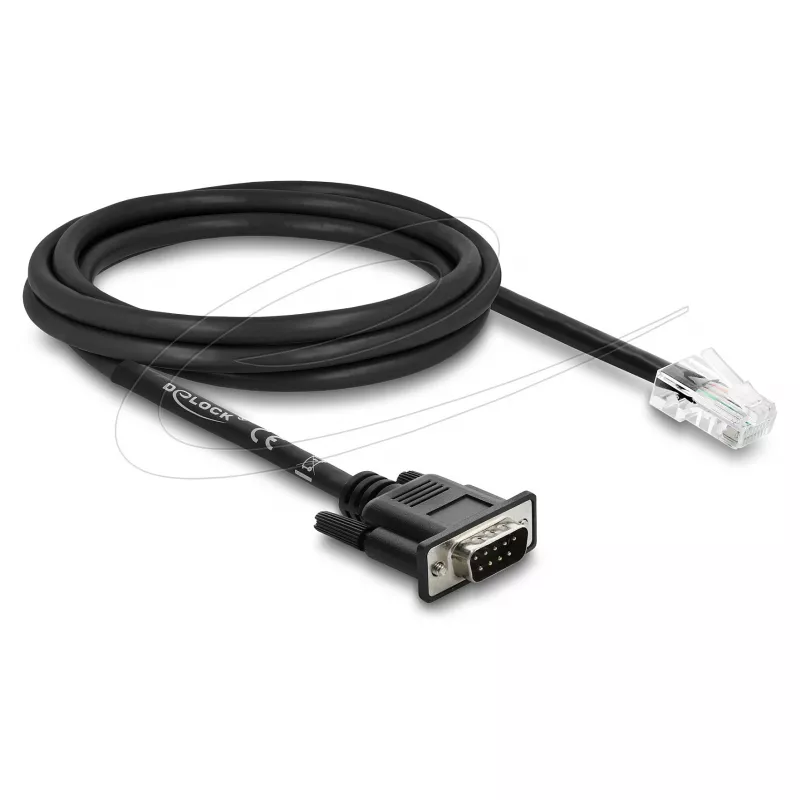

Delock Serial RS-232/422/485 Adapter Cable DB9 Male to RJ45 Male 2 m

This Delock serial adapter cable enables reliable communication between devices with a DB9 serial port and those with an RJ45 serial interface. Supporting RS-232, RS-422, and RS-485 standards, it is ideal for industrial control, networking consoles, and POS systems. The cable features a male DB9 connector on one end and a male RJ45 connector on the other, with a length of 2 meters for flexible placement.

Advantages

Configurable pin assignments via 8 DIP switches allow adaptation to various serial protocols. The robust PVC jacket and nickel-plated connectors ensure durability and reliable signal transmission. Copper conductors provide excellent conductivity.

Suitable for

• Connecting serial devices (e.g., barcode scanners, industrial controllers) to network equipment with RJ45 serial ports
• Use in industrial automation, building management, and point-of-sale environments
• Replacing or extending existing serial connections

Key specifications

• Connector A: D-Sub 9 pin male (DB9 male)
• Connector B: RJ45 male
• Supported serial standards: RS-232, RS-422, RS-485
• Length: 2.0 m
• Pinout configuration: 8 DIP switches
• Colour: Black
• Jacket material: PVC
• Connector plating: Nickel
• Conductor material: Copper
• Number of conductors: 8

Recommendations

For best performance, ensure that the DIP switches are set according to the pinout required by your devices. This cable is not suitable for Ethernet networking; it is designed for serial communication only.
