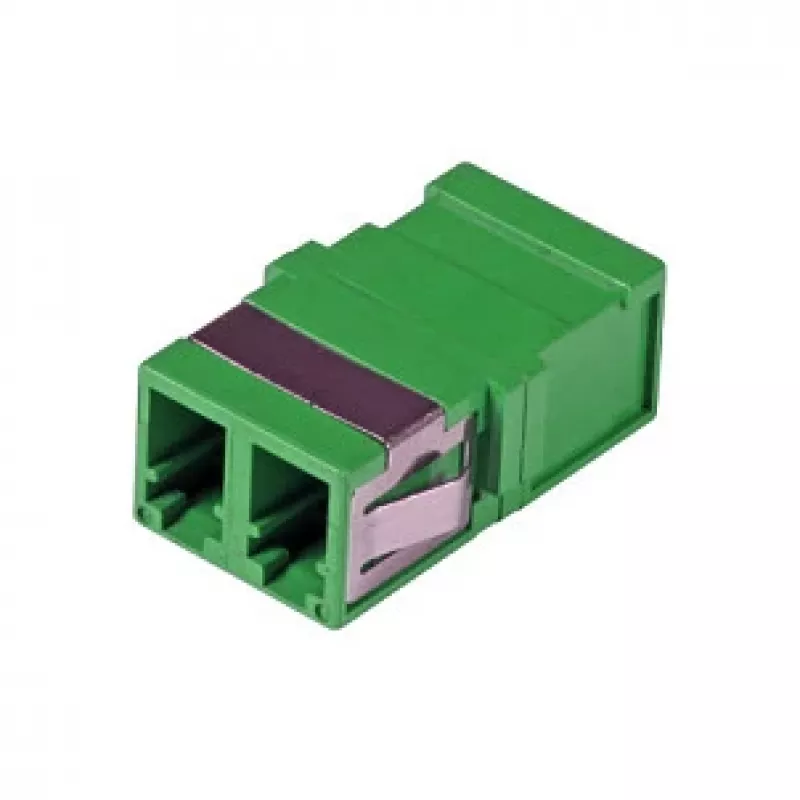

EFB Electronics Network Adapter LC Single Mode (S)

The EFB Electronics Network Adapter LC Single Mode (S) is a high-quality fiber optic coupler designed for reliable singlemode connections in structured cabling environments. This adapter ensures low insertion loss and high return loss, making it ideal for demanding network applications.

Advantages

• Ceramic sleeve for precise alignment and durability
• Low insertion loss < 0.2 dB for optimal signal integrity
• High return loss > 50 dB minimizes reflections
• Robust flange mounting for secure installation
• Compliant with RoHS and REACH standards

Suitable for

• Fiber optic patch panels
• Wall outlets
• Data center cabling
• Telecommunications networks

Key specifications

• Connector type: LC duplex to LC duplex
• Fiber mode: Singlemode (OS2)
• Sleeve material: Ceramic
• Housing color: Blue
• Insertion loss: < 0.2 dB
• Return loss: > 50 dB
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Durability: 500 mating cycles

Recommendations

For optimal performance, use with OS2 singlemode fiber cables and ensure clean connector end-faces before mating.
