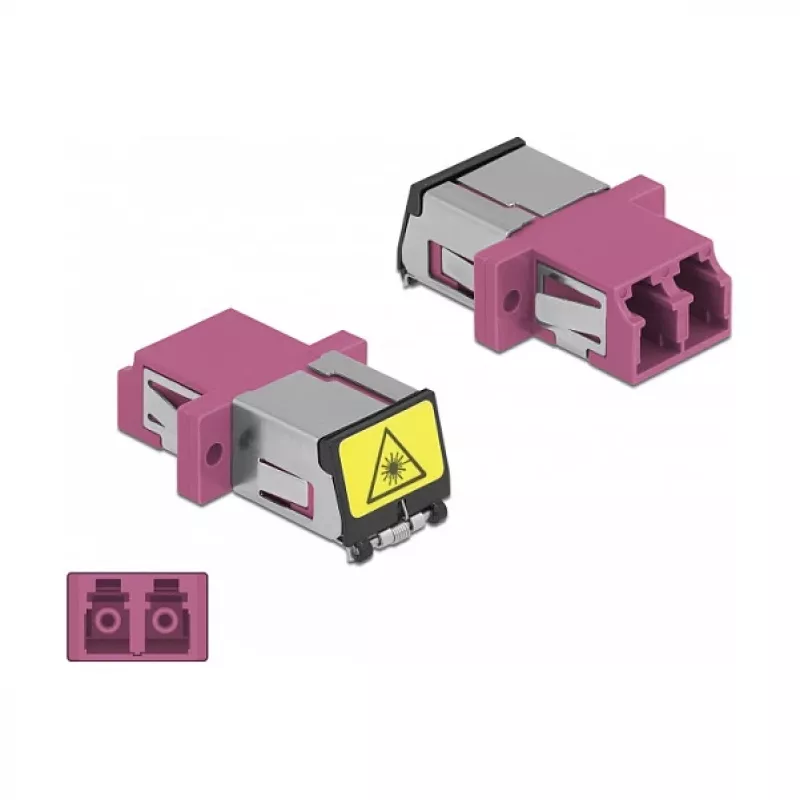

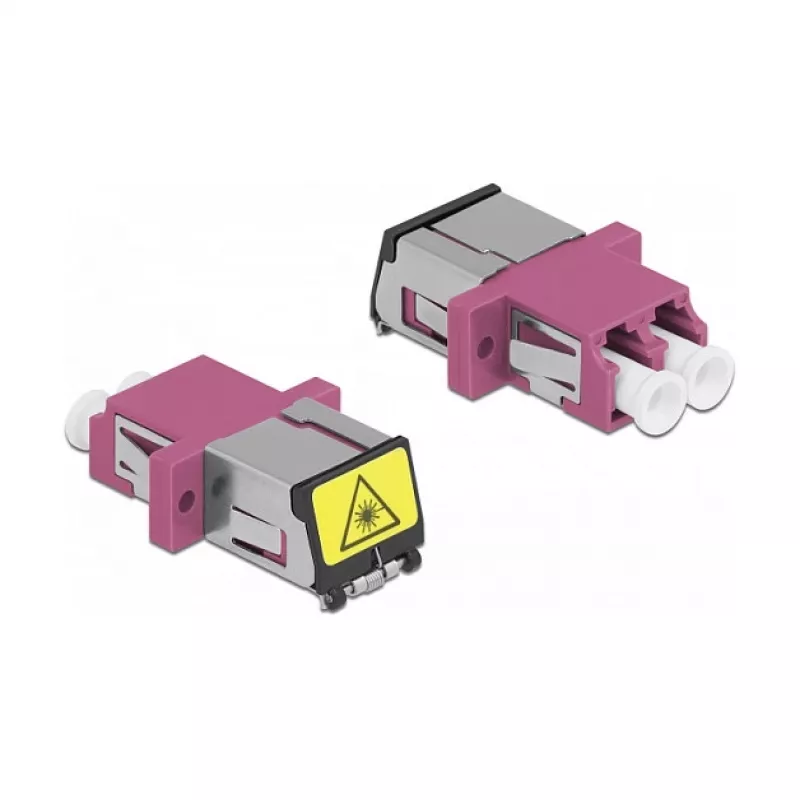

Optical Fiber Coupler DeLOCK 86901 LC Duplex Female to LC Duplex Female Multi-mode Violet

The DeLOCK Optical Fiber Coupler 86901 is an LC Duplex female to LC Duplex female multi-mode coupling designed to join optical fiber male connectors quickly and securely. Its compact dimensions (12.7 mm width, 29.2 mm depth, 9.3 mm height) and violet color make it suitable for installation in optical fiber connection boxes, cabinets and patch panels. The coupling includes laser protection and a dust cap to keep the sleeve clean.

Advantages

This LC Duplex coupling provides a direct connection between optical fiber cables with LC Duplex female interfaces, offers integrated flip protection against laser radiation and includes a dust cover to prevent contamination of the sleeve. Its small size allows easy mounting in standard fiber enclosures and patch panels.

Suitable for

• Connecting multi-mode LC Duplex fiber optic cables
• Use in fiber connection boxes and distribution cabinets
• Patch panels and local fiber links

Key specifications

• Brand: DELOCK
• Model / MPN: 86901
• Type: LC Duplex female to LC Duplex female
• Fiber: Multi-mode
• Color: Violet
• Dimensions (W x D x H): 12.7 x 29.2 x 9.3 mm
• EAN: 4043619869015

How to use

Remove the protective caps from the LC connectors on the fiber cables and from the coupling. Align the LC male connectors with the coupling openings and insert them until they click into place. Use the integrated flip to ensure laser protection is engaged. To clean or store the coupling, replace the dust cap to protect the sleeve from contamination.

Recommendations

Handle fiber connectors and the coupling with care: avoid touching the ferrule end face, keep protective caps on when not in use, and clean connectors with appropriate fiber cleaning tools before making connections to minimize signal loss and contamination.
