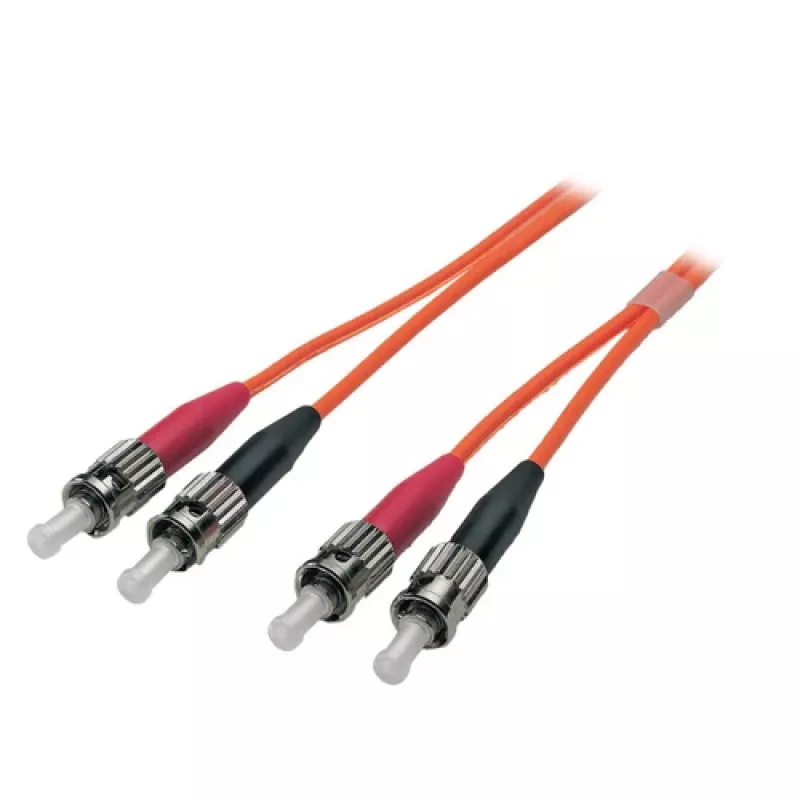

EFB Electronics Duplex Jumper ST-ST 50/125µ, OM2, LSZH, Orange, 3.0mm, 1m

The EFB Electronics Duplex Jumper ST-ST is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With OM2 performance, this cable ensures efficient connectivity for data centers, telecommunications, and local area networks.

Advantages

This cable features a durable LSZH (Low Smoke Zero Halogen) jacket, making it safe for use in enclosed spaces by reducing toxic smoke emissions in case of fire. The duplex configuration allows for simultaneous bidirectional communication, and the ST connectors provide secure, easy connections.

Suitable for

• Data networking and telecommunications
• Fiber-to-the-desk applications
• Server room and data center patching

Key specifications

• Fiber Type: Multimode OM2
• Connectors: ST to ST, Duplex
• Core/Cladding: 50/125 µm
• Cable Length: 1 meter
• Jacket Material: LSZH, Orange, 3.0 mm diameter
• Connector Polish: PC (Physical Contact)
• Number of Fibers: 2
• Supported Wavelengths: 850 nm, 1300 nm
• Max. Attenuation @ 850nm: 3.5 dB/km
• Max. Attenuation @ 1300nm: 1.5 dB/km
• Modal Bandwidth @ 850nm: 500 MHz·km
• Modal Bandwidth @ 1300nm: 500 MHz·km

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for short-distance patching within racks or between patch panels.
