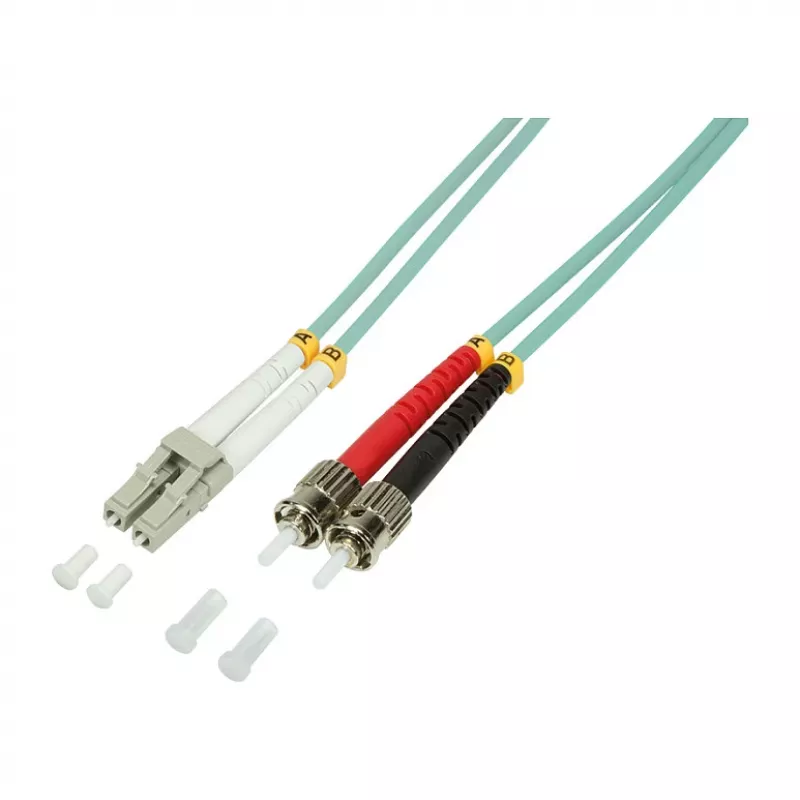

LogiLink OM3 LC to ST Duplex Multimode Fiber Patch Cable, 1m, LSZH Aqua

High-speed network links demand a cable that preserves signal integrity over distance and across connector transitions. The LogiLink OM3 LC/ST Duplex Patch Cable answers that challenge with laser-optimized multimode fiber, precision-polished connectors, and a low-smoke zero-halogen jacket. It is built for data centers, enterprise backbones, and any environment where 10G, 40G, or 100G Ethernet must run without compromise.

Who is it for

Network engineers, data center technicians, and IT integrators who need a dependable OM3 fiber link between LC and ST equipment. It suits high-density patching, backbone cabling, and legacy ST-based infrastructure upgrades. The LSZH jacket also makes it appropriate for public buildings, transportation, and confined spaces where fire safety and low toxicity are critical.

Main features

• OM3 laser-optimized multimode fiber with 50/125 µm core/cladding for 10G up to 300 m and 40/100G using MPO aggregation.
• LC duplex to ST duplex connectors with PC polish for low insertion loss and stable return loss.
• LSZH (Low Smoke Zero Halogen) aqua jacket reduces toxic smoke and corrosive gases in fire conditions.
• Duplex zip-cord construction with 3.0 mm outer diameter for easy handling and routing.
• Compliant with IEC 60793-2-10 Type A1a.2, TIA/EIA-568-C.3, and ISO/IEC 11801 standards.

Specifications

• Cable type: Fiber optic patch cable, multimode OM3
• Connector A: LC duplex (PC polish)
• Connector B: ST duplex (PC polish)
• Length: 1.0 m
• Fiber count: 2 (duplex)
• Core/cladding diameter: 50/125 µm
• Jacket material: LSZH
• Jacket colour: Aqua
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Operating wavelengths: 850 nm, 1300 nm
• Maximum bandwidth: 2000 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Applications: 1/10/40/100 Gigabit Ethernet, Fibre Channel
• Cable diameter: 3.0 mm
• Compliance: IEC 60793-2-10 Type A1a.2, TIA/EIA-568-C.3, ISO/IEC 11801

Tips

Pair with OM3-compatible transceivers for optimal performance. Use bend-radius management to avoid microbending losses. For 40/100G links, combine with MPO breakout cassettes. Store in a clean, dust-free environment and inspect connector end faces before installation.
