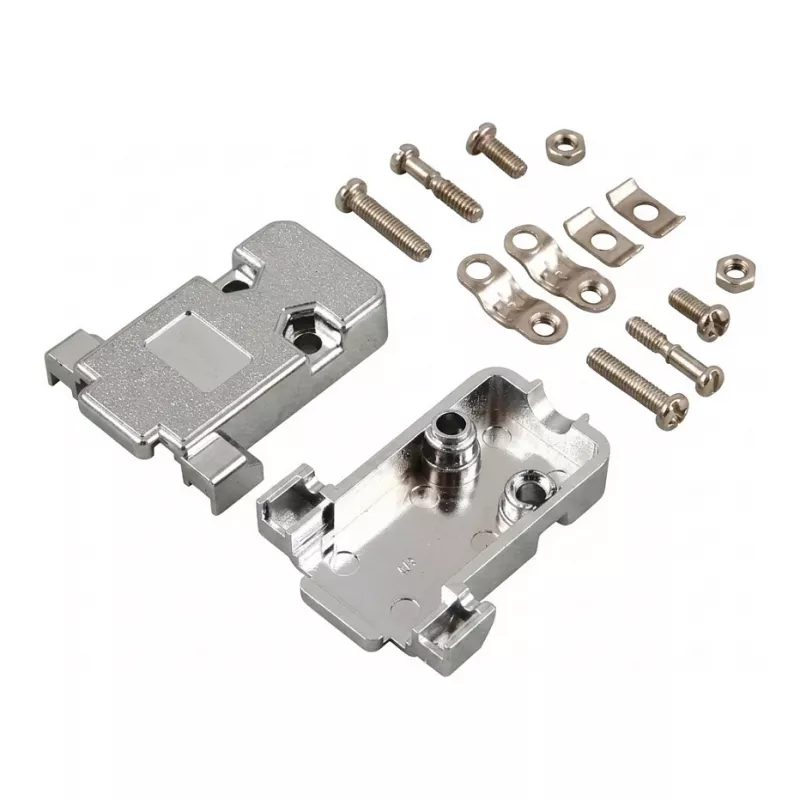

EFB E-DH09 Metallized D-Sub Hood for DB9, Grey

The EFB E-DH09 is a high-quality metallized D-Sub hood designed for 9-pin D-Sub connectors (DB9). It provides reliable EMI/RFI shielding and robust cable strain relief, making it ideal for industrial and data communication applications. The hood features a two-part screw-together shell for easy assembly and secure cable clamping.

Advantages

Metallized finish ensures excellent electromagnetic interference protection. Integrated cable clamp and strain relief prevent cable damage. Compact design fits standard DB9 connectors. RoHS and halogen-free compliant for environmental safety.

Suitable for

• Industrial automation and control systems
• Data communication and networking equipment
• Serial port connections requiring shielding
• Custom cable assemblies

Key specifications

• Product Type: D-Sub Hood
• Connector Compatibility: D-Sub 9-pin (DB9)
• Housing Material: ABS Plastic
• Shielding: Metallized for EMI/RFI
• Cable Entry: Straight, single entry
• Cable Diameter Range: 4 - 10 mm
• Locking Screws: 4-40 UNC (included)
• Colour: Grey (Metallized Finish)
• Assembly: Two-part shell, screw-together
• Strain Relief: Integrated Cable Clamp
• Operating Temperature: -20°C to +85°C
• Flammability Rating: UL 94 V-0
• RoHS Compliant: Yes
• Halogen-free: Yes

Recommendations

For optimal performance, use with standard DB9 connectors and cables within the specified diameter range. Ensure screws are tightened evenly to maintain shielding integrity.
