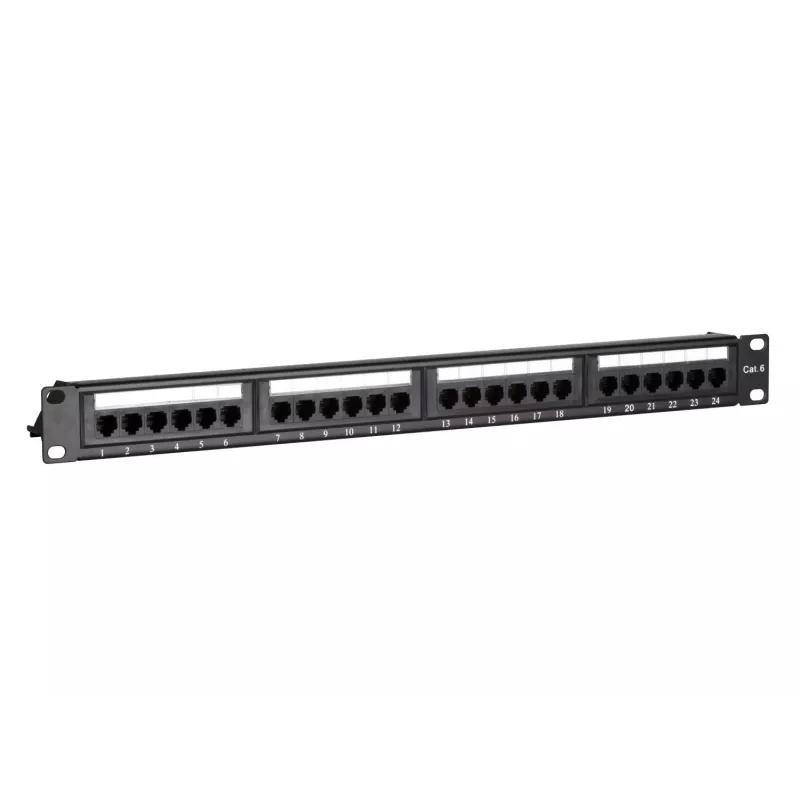

DS-IT CAT 6 UTP Network Patch Panel, 19 inch, 24-Port DS-Patch6-24UTP

The DSIT DS-Patch6-24UTP is a 24-port CAT 6 UTP patch panel built for 19-inch racks, offering a straightforward way to manage network connections in a compact 1U footprint. Unlike many panels that require special tools, this model uses standard LSA/Krone punch-down terminations, simplifying installation.

Highlights

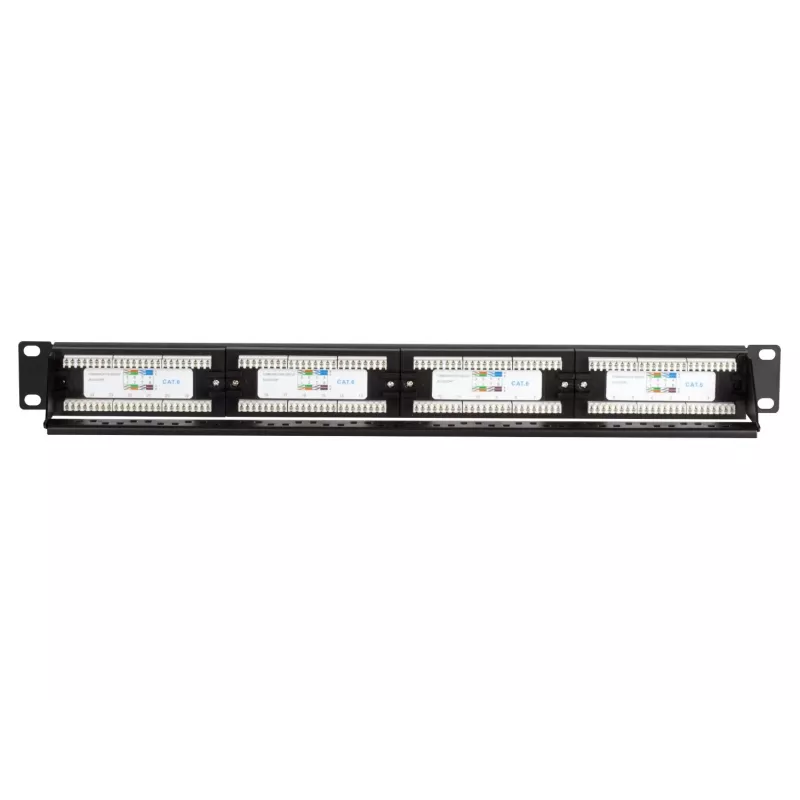

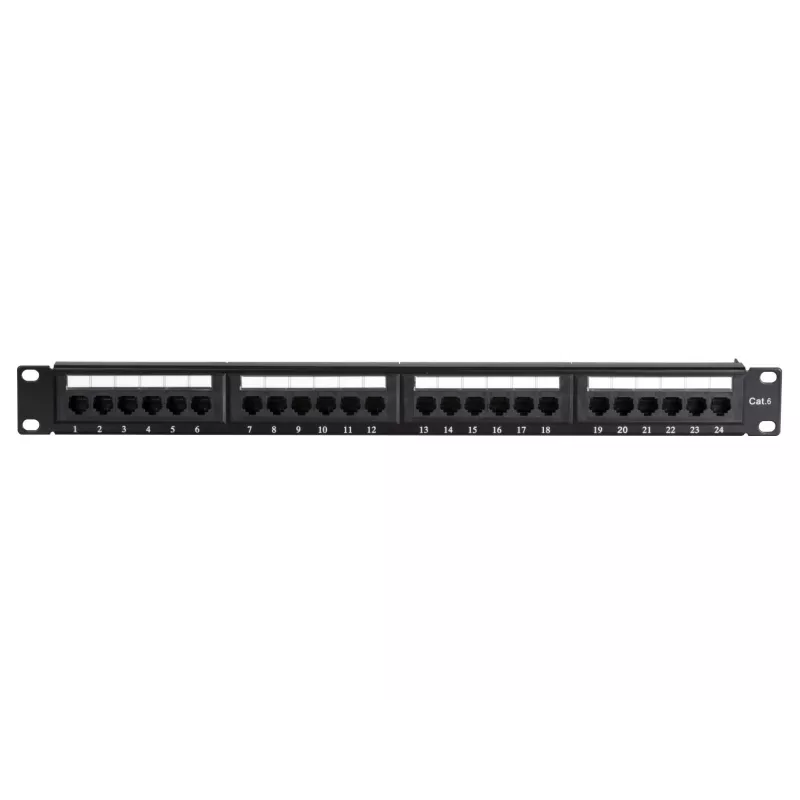

• 24 RJ45 ports on the front, with color-coded IDC terminals on the rear for TIA/EIA 568A/B wiring.
• Supports Gigabit Ethernet (up to 1000 Mbps) over unshielded twisted pair cabling.
• Durable SPCC steel housing with black finish, suitable for solid or stranded copper conductors.
• Numbered ports and a wiring diagram label help keep installations organized.

In daily use

Installers will appreciate the clear labeling and standard punch-down blocks, which reduce the chance of wiring errors. The panel's 19-inch rack-mount design fits standard server racks and cabinets, and its 1U height conserves valuable rack space. The black steel construction provides a professional appearance and long-term durability in typical network environments.

Full specifications

• Product type: Network patch panel
• Category: CAT 6
• Shielding: UTP (unshielded twisted pair)
• Number of ports: 24
• Rack size: 19-inch
• Height: 1U
• Front connectors: 24x RJ45 female
• Rear termination: IDC (insulation displacement connector)
• Wiring standard: TIA/EIA 568A/B color coded
• Data transfer rate: up to 1000 Mbps
• Housing material: SPCC steel
• Contact material: phosphor bronze with gold plating
• Compatible cable types: solid and stranded copper
• Tool requirement: LSA/Krone punch down tool
• Operating temperature: -10°C to 60°C
• Operating relative humidity: 10% to 90% RH (non-condensing)

Final note

A reliable, no-frills patch panel for structured cabling projects where CAT 6 performance and easy termination are key.
