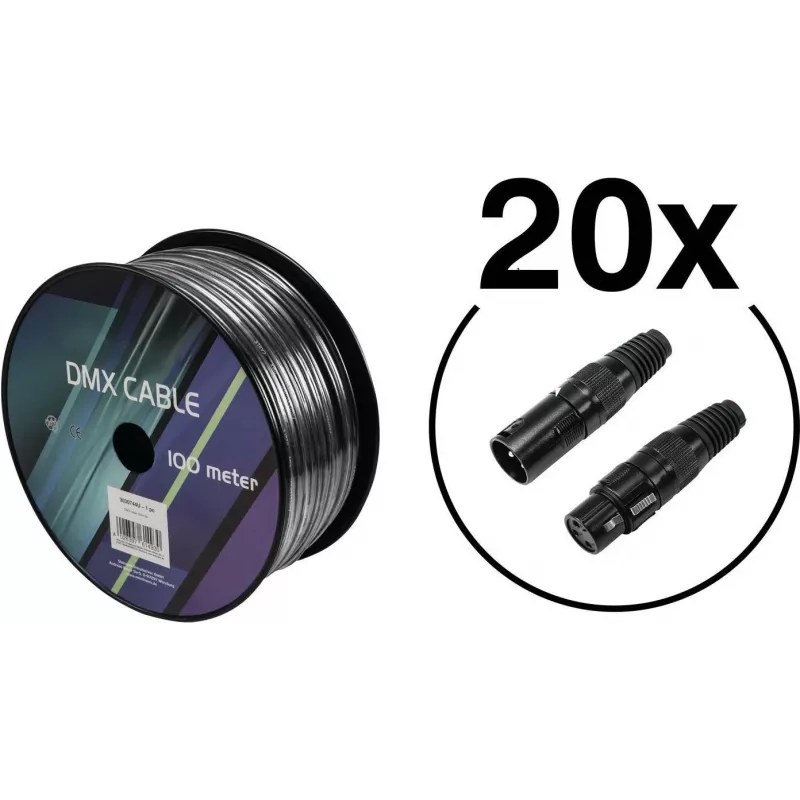

DMX cable set EUROLITE 20000431 — 2 x 0.22 mm² conductors, length 100 m

EUROLITE DMX cable set 20000431 includes a 100 m length of cable with two 0.22 mm² conductors specifically designed for DMX signal transmission. The cable provides a single dedicated twisted pair suitable for carrying DMX512 control data between lighting controllers and fixtures. Its 100 m length allows for flexible routing in both permanent and temporary stage, theatre, and event installations.

Advantages

The cable set delivers a clear, focused conductive path for DMX signals using two 0.22 mm² conductors, minimising interference when installed according to DMX wiring practices. A long 100 m spool reduces the need for multiple joints and intermediate repeaters in medium-sized venues. The construction is intended for use with standard DMX systems and simplifies cable management for lighting rigs and control desks.

Suitable for

Key specifications

How to use

Install the cable by routing it between the DMX controller and the first fixture, keeping the run as direct as practical and avoiding parallel routing with mains power to reduce potential interference. Terminate the DMX line appropriately at the end of the run with a 120 Ω terminator where required by the lighting system. If multiple segments are needed, use suitable DMX-compatible connectors and maintain correct DMX chain wiring conventions.

Recommendations

For reliable DMX performance, use the cable for data only and avoid bundling it tightly with mains or high-current cables. Observe recommended DMX topology: daisy-chain fixtures, place a termination resistor at the end of the line, and keep overall cable lengths and node counts within DMX512 specifications for best results.
