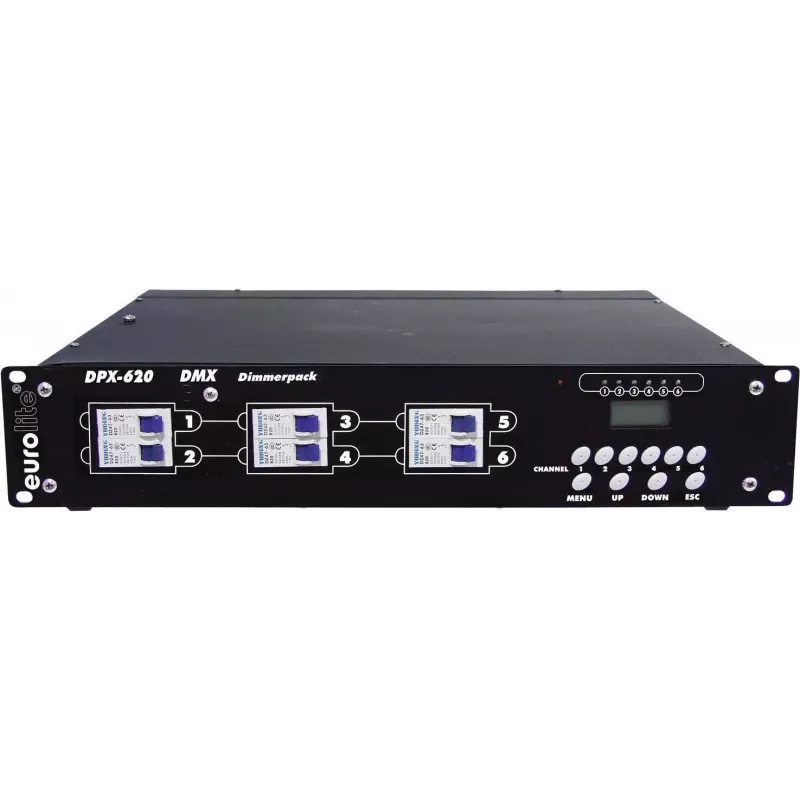

Lighting dimmer pack EUROLITE DPX-620 6-channel 230V

EUROLITE DPX-620 6-channel 230V dimmer pack accepts DMX input and provides six independent output channels for controlling mains-powered lighting fixtures. Designed for integration into DMX512 control systems, the unit distributes dimming commands to connected lamps on standard 230V circuits. The compact rack-compatible housing and clear channel separation make it suitable for use in installations, stages, clubs and temporary event rigs where centralised control of multiple lights is required.

Advantages

The dimmer pack offers six individually addressable channels, enabling separate control of multiple luminaires from a single DMX universe. Its 230V outputs are suitable for a wide range of mains-powered lamps and resistive or inductive loads typically used in general stage and installation lighting. The device is built for straightforward system integration with standard DMX input and intuitive channel layout, providing reliable dimming performance in live and installed environments.

Suitable for

Key specifications

How to use

Install the EUROLITE DPX-620 in a suitable rack or fix it in an installation location, ensuring the unit is connected to a 230 V AC supply with proper earthing. Connect the DMX controller to the DMX input and assign DMX addresses according to the control layout required for your show or installation. Attach each lighting fixture to a separate channel output, taking care to verify load compatibility and not to exceed channel ratings. Test each channel from the controller and make any required addressing or fade time adjustments on the controlling desk or console.

Recommendations

Use the dimmer pack with fixtures that match the expected load types and power range, and observe correct cable sizing and grounding practices. Provide adequate ventilation around the unit and avoid overloading individual channels. For touring or rental use, secure connections and protect the unit from mechanical stress and moisture.
