DisplayPort Module DeLOCK Easy 45 81305

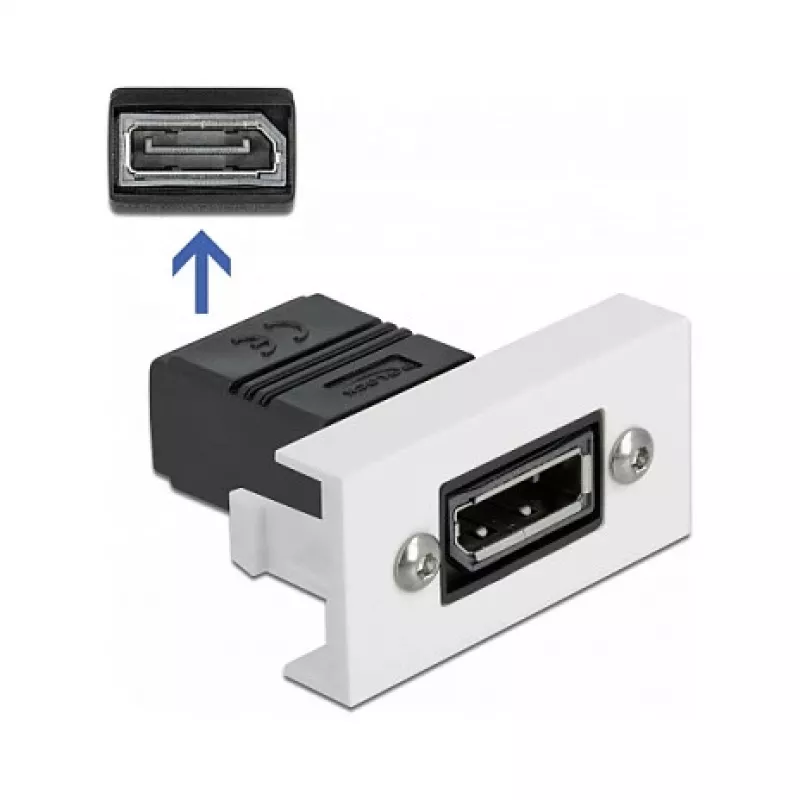

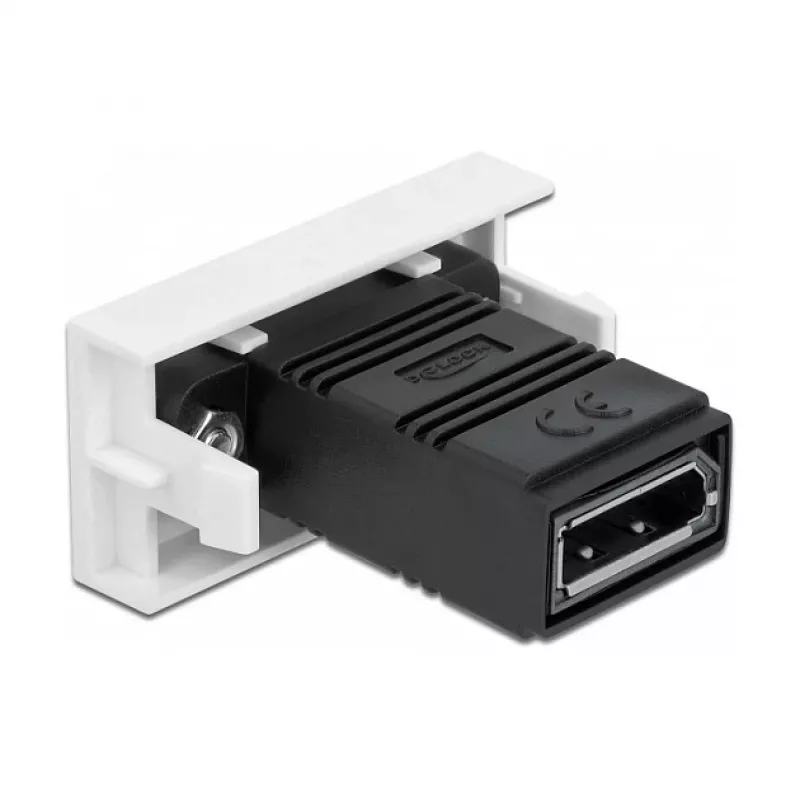

The DeLOCK Easy 45 81305 DisplayPort module provides a DisplayPort female connector in a compact, standardized 45 mm module format. It has a straight design, measures 22.5 x 45 mm with a height of 38.5 mm, and comes in black. The module snaps securely into Easy 45 frames or cable ducts and can be removed if necessary, creating an interface between system installation and DisplayPort-equipped devices.

Advantages

This Easy 45 module offers a standardized form factor compatible with common 45 mm mounting frames and module holders. The snap-in mechanism ensures firm mounting and easy removal. The straight DisplayPort female port supports video and audio transmission and integrates with other Easy 45 components such as HDMI or USB modules to build customized connection panels.

Suitable for

• Connecting DisplayPort monitors and displays
• Integration into modular 45 mm frames and cable ducts
• Multimedia workstations, conference rooms and AV installations
• Systems requiring interchangeable connector modules (HDMI/USB alongside DisplayPort)

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 81305
• EAN: 4043619813056
• Connector: DisplayPort female (straight)

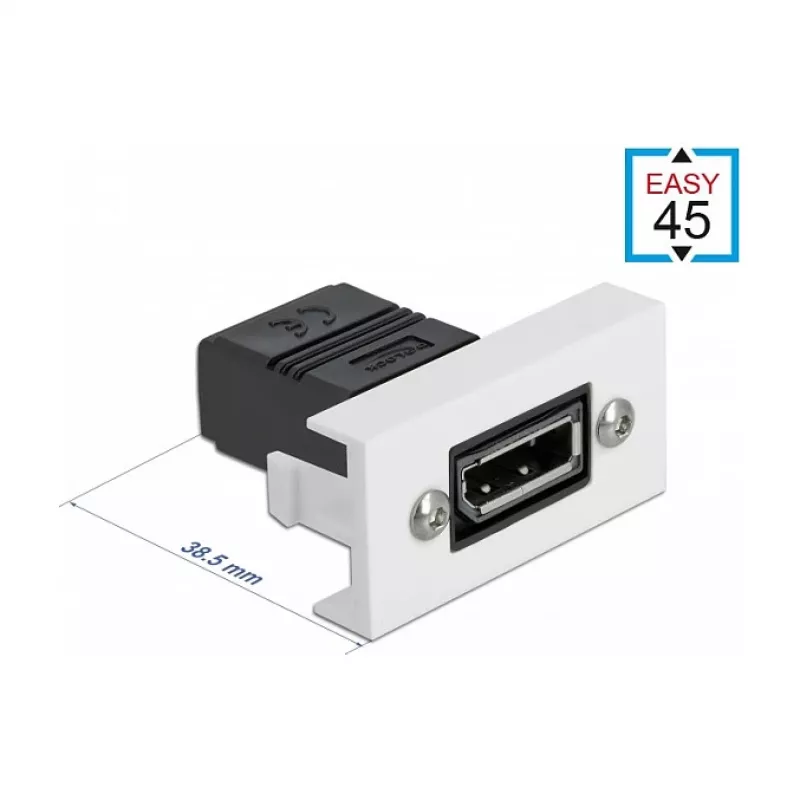

• Module dimensions: 22.5 x 45 mm, height 38.5 mm
• Colour: Black
• System: Easy 45 modular system (snap-in)

How to use

Insert the module into a compatible Easy 45 mounting frame or cable duct until the snap-in mechanism clicks into place. Connect a DisplayPort cable from your source or display to the DisplayPort female port. To remove the module, release the snap-in latch and pull the module out of the holder. Ensure the frame and surrounding wiring are de-energized when installing in electrical enclosures.

Recommendations

Use the module only with compatible Easy 45 frames and maintain secure cable strain relief. Verify DisplayPort cable compatibility for required video/audio resolutions and disconnect power before installation in system cabinets.
