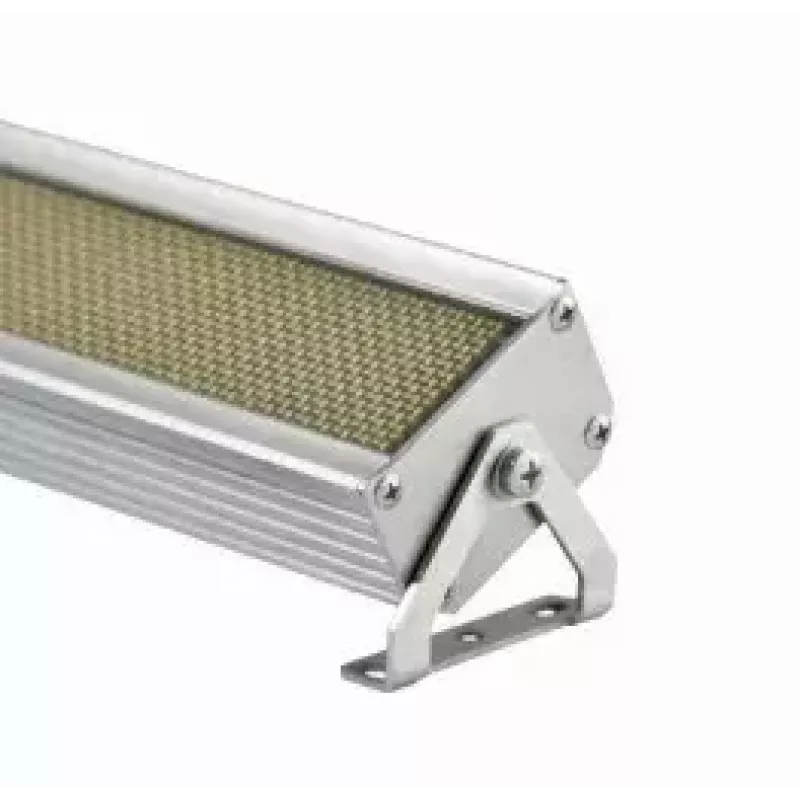

Display ALLNET ALL4550_L4_1037

The ALLNET ALL4550_L4_1037 is an LED display module designed for use with development boards and prototyping environments. With a panel width of 1037 mm, a depth of 50 mm and a height of 35 mm, the module provides a compact form factor that fits into constrained enclosures while offering a clear, bright LED image. The display is intended for integration into ALLNET systems and compatible controller boards, providing a straightforward visual interface for development, testing and small-scale deployments.

Advantages

This LED display delivers high brightness and clear visibility suitable for indoor development settings. The modest depth and low profile make it easy to mount in prototypes and custom housings. Designed for compatibility with ALLNET development products, the module simplifies wiring and integration with supported controllers. The construction focuses on reliable performance during iterative development and frequent reconfiguration.

Suitable for

• Development board visual output and debugging
• Prototyping user interfaces and status displays
• Small control panels and instrument indicators
• Educational electronics projects and lab setups

Key specifications

• Display technology: LED
• Width: 1037 mm
• Depth: 50 mm
• Height: 35 mm
• Mounting: panel or enclosure integration
• Intended use: development boards and prototyping

How to use

Connect the display to a compatible development board or controller following the manufacturer’s interface documentation. Ensure power and signal connections match the voltage and pinout requirements of the host board. Secure the module in the desired position using appropriate mounting points or clamps that accommodate its 50 mm depth and 35 mm height. During initial setup, verify display communication and brightness settings in the development environment and adjust timing or driver parameters as needed for stable operation.

Recommendations

Operate the module in dry, indoor environments and avoid exposure to excessive heat or direct sunlight. Use compatible ALLNET controllers or follow recommended interface specifications to prevent signal or power mismatches. When integrating into custom enclosures, allow sufficient ventilation and avoid mechanical stress on the display connector during assembly and maintenance.
