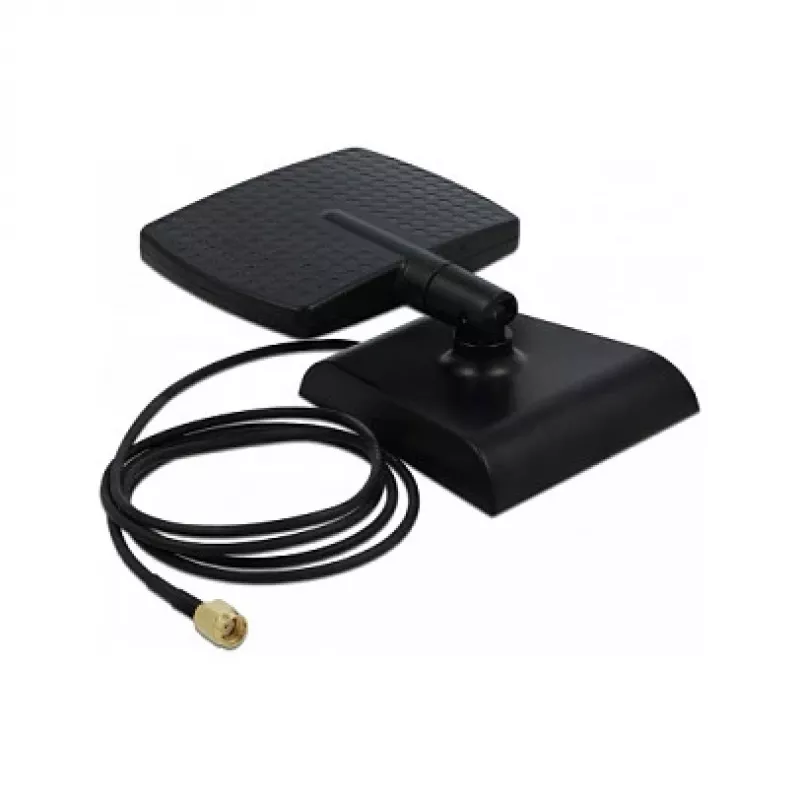

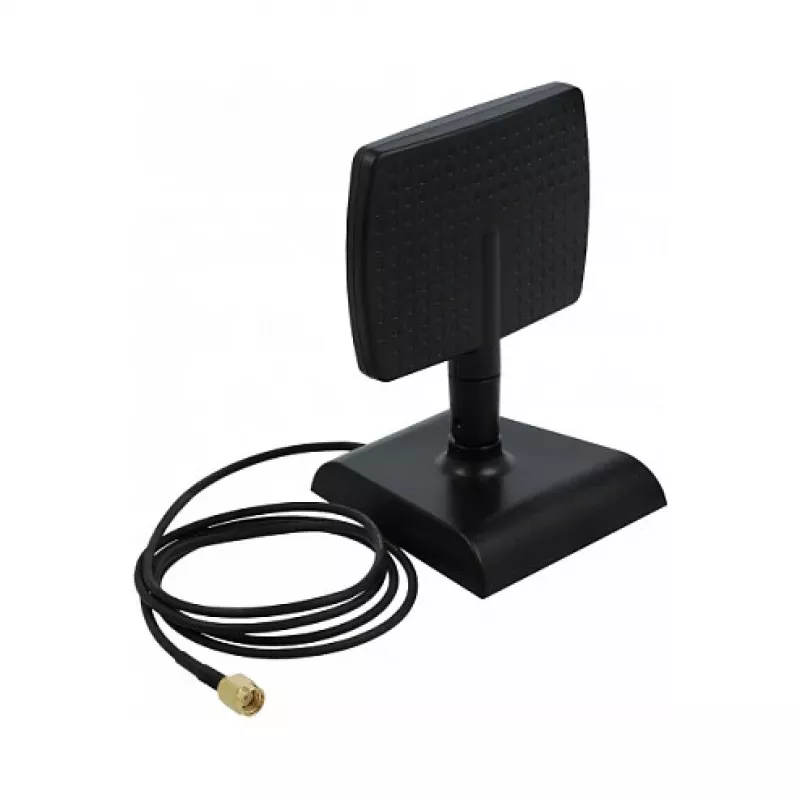

Directional antenna DeLOCK 90297

The DeLOCK 90297 is a directional Wireless LAN antenna designed to connect to WLAN devices with an RP-SMA interface to send and receive signals. It operates in the 2.4–2.5 GHz and 5.15–5.875 GHz frequency bands, supports IEEE 802.11ax, delivers up to 6 dBi gain and has a magnetic base with adjustable tilt for flexible positioning. Its compact dimensions (90 mm × 115.5 mm × 80 mm) and vertical polarization make it suitable for improving signal strength in targeted areas.

Advantages

The antenna provides focused signal reception and transmission with a 6 dBi gain, compatibility with RP-SMA connectors, and dual-band operation across common Wi‑Fi frequencies. The magnetic base and adjustable inclination allow easy and precise alignment for optimal coverage in specific directions. The compact, black housing supports discreet installation in various indoor environments.

Suitable for

Key specifications

How to use

Attach the antenna to a WLAN device with an RP‑SMA female connector. Place the antenna on a suitable metal surface using the magnetic base or mount it on a non‑metallic surface where appropriate. Adjust the tilt and orientation to aim the antenna toward the desired coverage area; test signal strength and fine‑tune the position for best performance. Ensure the connector is tightened securely but do not over‑torque.

Recommendations

For optimal results, position the antenna with a clear line of sight toward the target area, avoid obstructions and large metal objects that can attenuate signals, and test different tilt angles to find the best directional coverage for your IEEE 802.11ax network.
