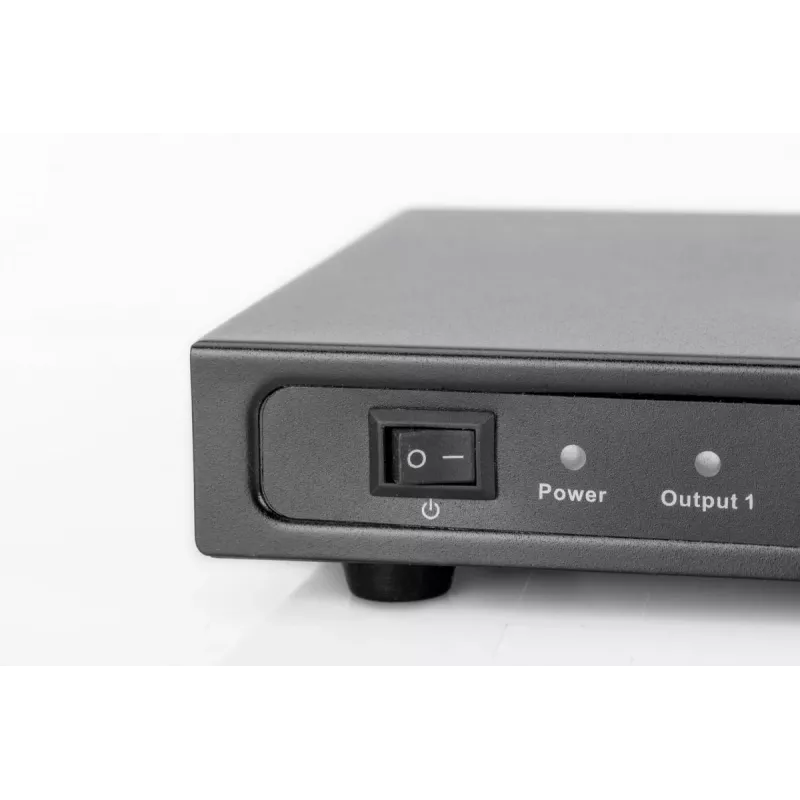

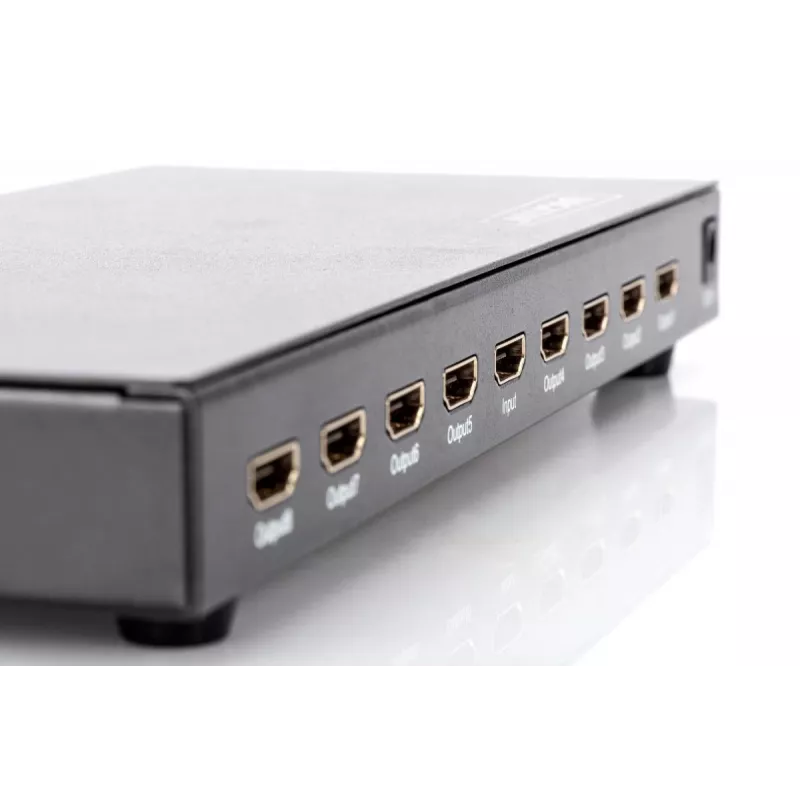

DIGITUS HDMI Splitter, 8 Port 1080p, 3D, HDMI High Speed, 2.25 GHz/225 MHz, Metal housing, black

The Digitus HDMI Splitter DS-43302 1x8 distributes a single HDMI source to up to eight HDMI displays (TVs, monitors, projectors or displays). It supports resolutions up to 1920 x 1200 (including 1080p) and common video modes such as 480i/p, 576i/p, 720p and 1080i/p. The compact 1x8 splitter is suitable for multi-display installations in offices, retail, hospitality and exhibition spaces and can be cascaded one level to expand the number of outputs up to 64 devices.

Advantages

The splitter supports Standard HDMI and HDCP, passes compressed audio formats such as DTS Digital, Dolby Digital, DTS-HD and Dolby TrueHD, and offers a 225 MHz bandwidth for stable video transmission. Its compact dimensions (258 x 27 x 111 mm) and light weight (0.73 kg) simplify integration into existing AV setups. Cascadable design allows expansion by connecting additional 1x8 splitters for larger installations.

Suitable for

• Presentations and meeting rooms
• Retail displays and shop windows
• Trade show booths and exhibition stands
• Waiting areas, restaurants and cafés
• Multi-screen digital signage and video walls (up to 64 outputs via cascading)

Key specifications

• Model: Digitus DS-43302 (1x8)
• Input/output: 1 HDMI input, 8 HDMI outputs
• Supported resolutions: up to 1920 x 1200 (includes 1080p)
• Video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
• Bandwidth: 225 MHz
• HDMI standard support: Standard HDMI, HDCP
• Audio: supports compressed formats (DTS Digital, Dolby Digital, DTS-HD, Dolby TrueHD)
• Cascadable: one level (up to 64 total HDMI outputs)
• Dimensions: 258 x 27 x 111 mm
• Weight: 0.73 kg

How to use

Connect the HDMI source (PC, media player, Blu-ray player, etc.) to the splitter's HDMI input and connect up to eight HDMI displays to the splitter's outputs. Power the unit with the supplied adapter and select appropriate resolution settings on the source device if required. If more than eight displays are needed, connect additional identical 1x8 Digitus splitters to cascade the system to a maximum of 64 outputs, ensuring each cascade connection uses an HDMI cable that supports the required resolution and HDCP requirements.

Recommendations

For reliable signal transmission, use high-quality HDMI cables rated for the target resolution and audio format. Verify that connected displays support the chosen resolution and HDCP if protected content will be played. Place the splitter in a ventilated space and avoid stacking equipment directly on top of it.
