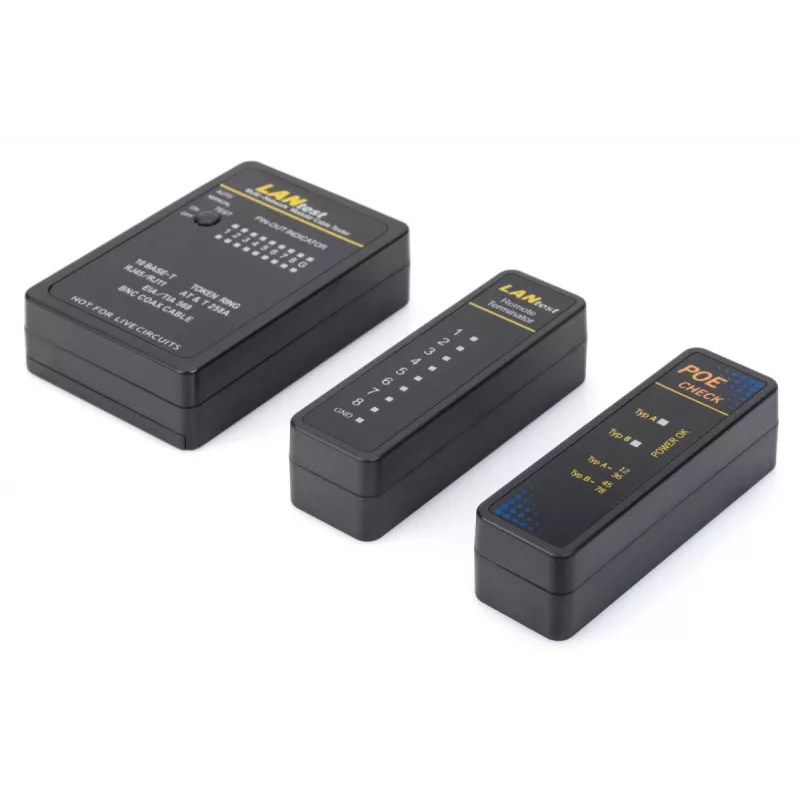

DIGITUS Cable tester, network, RJ45, BNC main device, remote unit, PoE tester, with case

The Digitus Network and Communication Cable Tester DN-14001-1 is a compact, battery-powered tool for verifying RJ45 (LAN) and BNC cabling. It supports testing of 10Base-T, 10Base-2, RJ45/TM11 modular cables and wiring standards such as 258A and TIA-568A/568B, and can compare the outgoing cable end with the receiving end to identify correct pin assignment. The kit includes a remote unit and an adapter for BNC cable tests and is supplied in a hard shell case.

Advantages

The tester performs loop, remote and PoE tests and displays results via LED indicators for straightforward interpretation. Tests can be run automatically or manually, and the remote tester enables verification of cables installed in wall distributors or patch panels. Its compact design and included BNC and LAN cables make it suitable for field use and quick troubleshooting.

Suitable for

• Checking RJ45 network patch cables
• Testing BNC coaxial cables (with included adapter)
• Verifying installed cables in wall outlets, distributors or patch fields using the remote unit
• Quick continuity, pinout and PoE presence checks

Key specifications

• Model: Digitus DN-14001-1
• Supported cable types: RJ45 (LAN), BNC (10Base-2), modular cables
• Wiring standards: 258A, TIA-568A/568B, token ring
• Tests: loop test, remote test, PoE test, pin assignment
• Power: 9 V battery
• Dimensions: 55 mm x 25 mm x 80 mm
• Included: remote tester, BNC adapter, LAN and BNC cables, hard shell case
• Brand: DIGITUS, MPN: DN-14001-1, EAN: 4016032458692

How to use

Connect one end of the cable to the main tester and the other end to the remote unit (or use the BNC adapter for coaxial cables). Power the unit with a 9 V battery, select automatic or manual test mode and start the test. Read the LED indicators to determine continuity, correct pin assignment or PoE presence. For installed cabling, leave the remote unit at the far end in a wall distributor or patch field and initiate the test from the main unit.

Recommendations

For reliable results, ensure the 9 V battery has sufficient charge and connect clean, undamaged connectors. Use the remote unit to isolate faults in installed cabling and consult wiring standards (258A, TIA-568A/568B) when interpreting pinout results.
