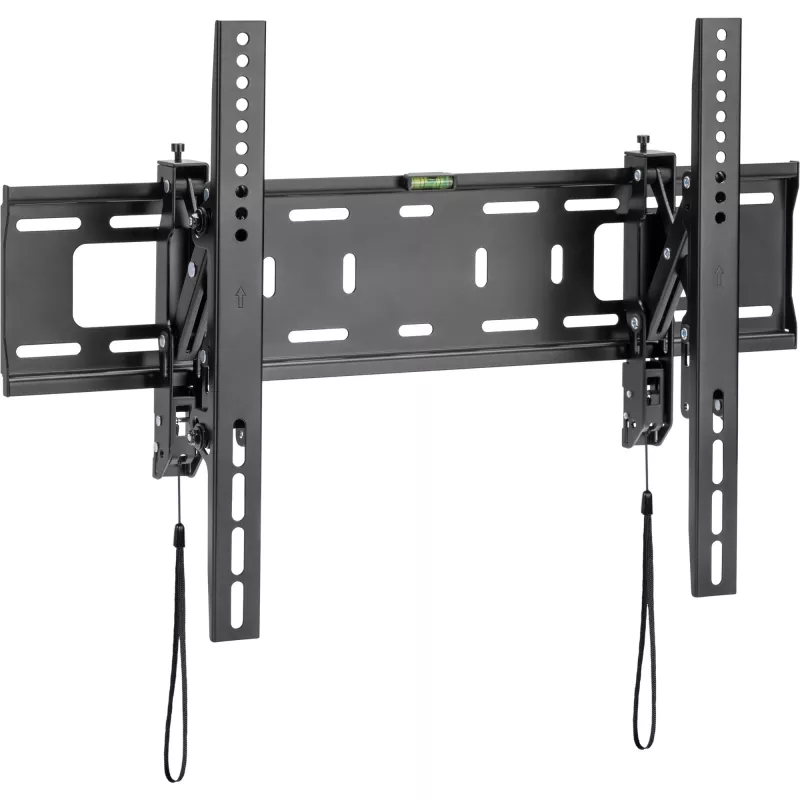

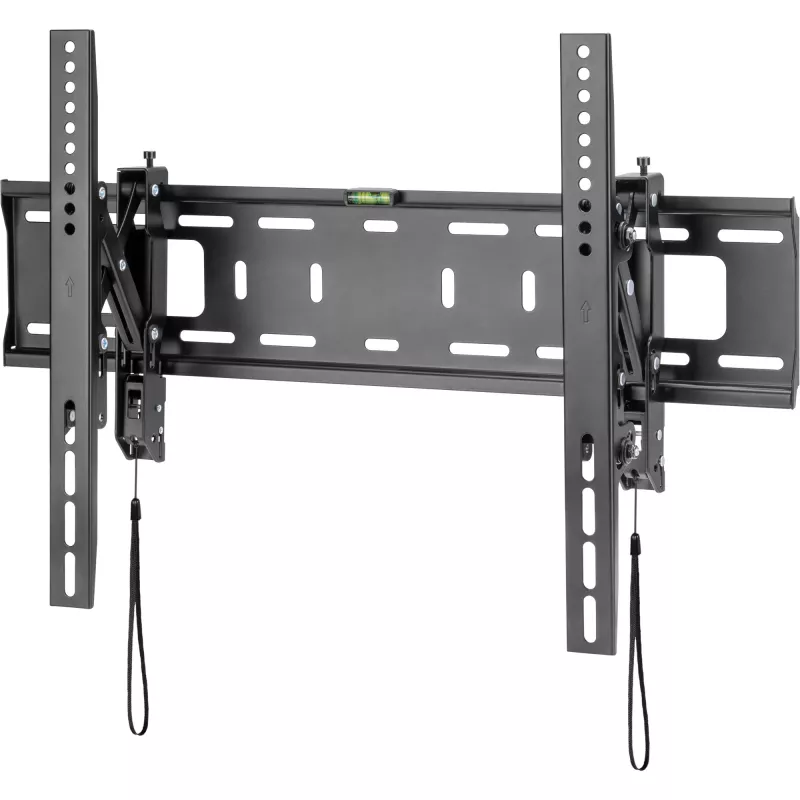

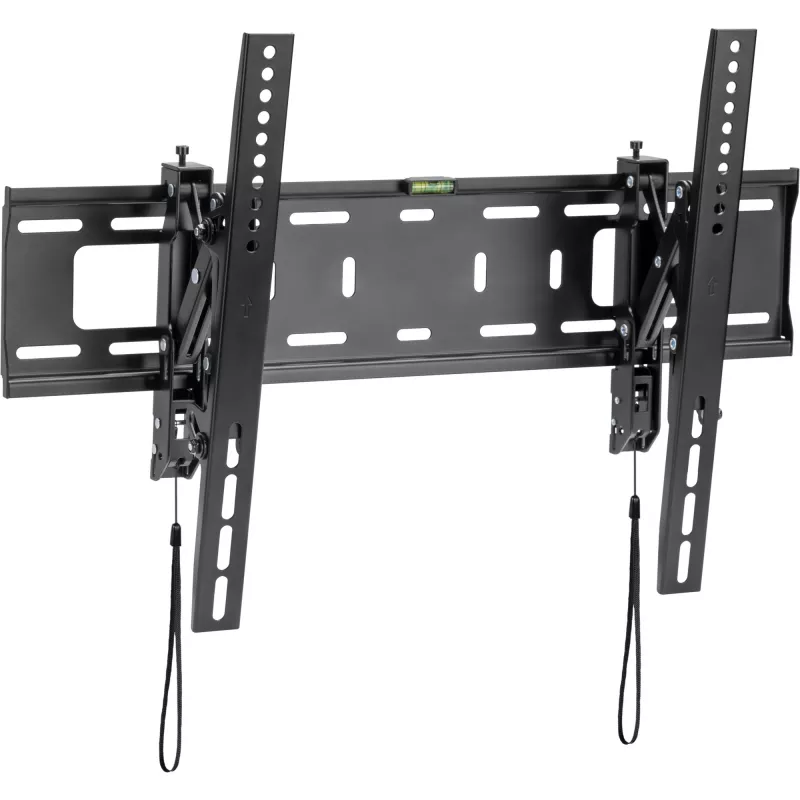

InLine Heavy-duty wall mount, tiltable, for flat screen TV (37-80 inch), max. 75kg

The InLine heavy-duty wall mount is designed for flat screen TVs from 37 to 80 inches and supports devices up to 75 kg. The mount offers adjustable distance from the wall (7.2 cm to 133 cm), a tilt range of -10° to 5° and a swivel range of -5° to 5°, and is compatible with VESA patterns from 200 x 200 mm up to 600 x 400 mm. Spring locks with release tabs enable quick detachment of the TV, while an anti-theft function secures the unit to the wall. Built for large and heavy displays, the bracket includes an extension that allows the screen to be fully tilted so the back becomes accessible for cabling and maintenance, and integrated levelling helps achieve a perfectly balanced installation.

Advantages

The mount supports a wide range of VESA standards and a maximum load of 75 kg, making it suitable for large flat screen TVs. Adjustable extension and tilt make the TV back accessible for cabling and servicing. Levelling adjustment ensures accurate alignment after installation, and the swivel function allows flexible viewing angle changes. Spring locks with release tabs speed up removal, and the anti-theft feature provides additional security.

Suitable for

• Home or office installation of large flat-screen TVs (37–80")
• Rooms where occasional access to the TV rear for cabling or maintenance is required
• Installations that require accurate levelling and small swivel/tilt adjustment
• Locations where secure mounting with anti-theft protection is desired

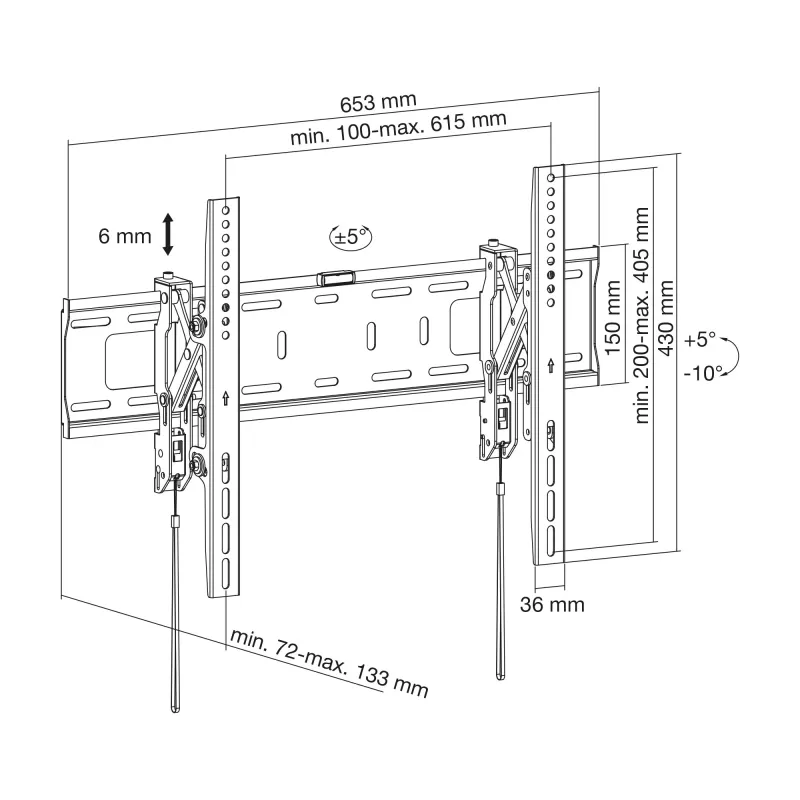

Key specifications

• Screen size compatibility: 37–80 inches
• Maximum weight capacity: 75 kg
• VESA compatibility: 200 x 200 mm to 600 x 400 mm
• Tilt range: -10° to 5°
• Swivel range: -5° to 5°
• Distance from wall: adjustable 7.2 cm to 133 cm
• Colour: Black
• Supports one display

How to use

Mount the InLine heavy-duty wall bracket to a suitable load-bearing wall following the included installation instructions and using appropriate wall anchors for your wall type. Attach the TV to the bracket using the correct VESA mounting holes and fasteners. Use the levelling adjustment to align the screen precisely, extend and tilt the mount to access rear connections when needed, and adjust the swivel and tilt angles to achieve the desired viewing position. Engage the spring locks to secure the TV; use the release tabs when you need to detach the screen from the wall.

Recommendations

Verify the TV weight and VESA pattern before installation, use suitable mounting hardware for the wall material, and if in doubt seek professional installation to ensure secure attachment and correct alignment.
