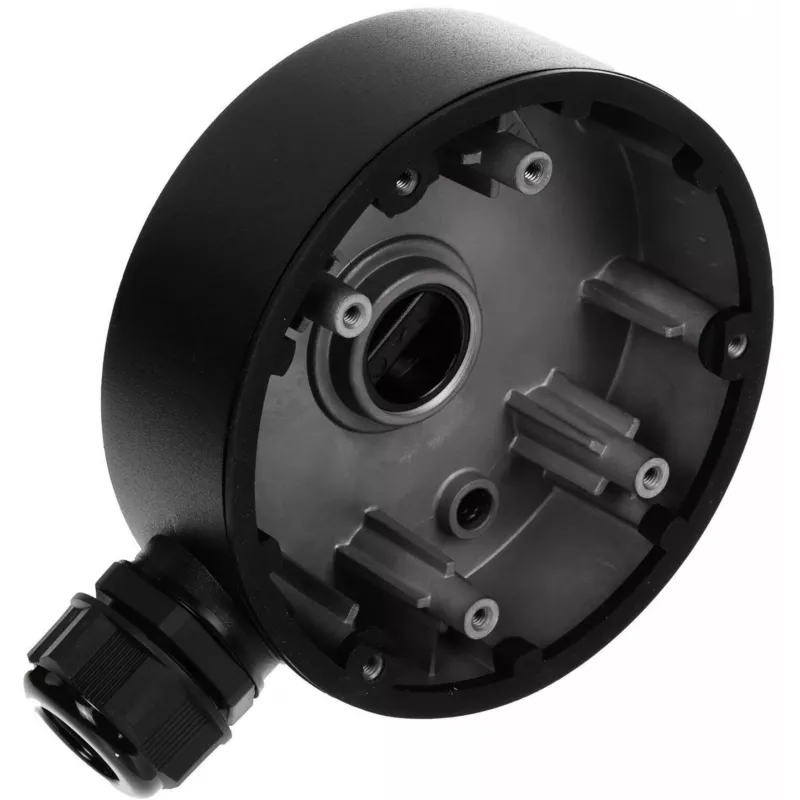

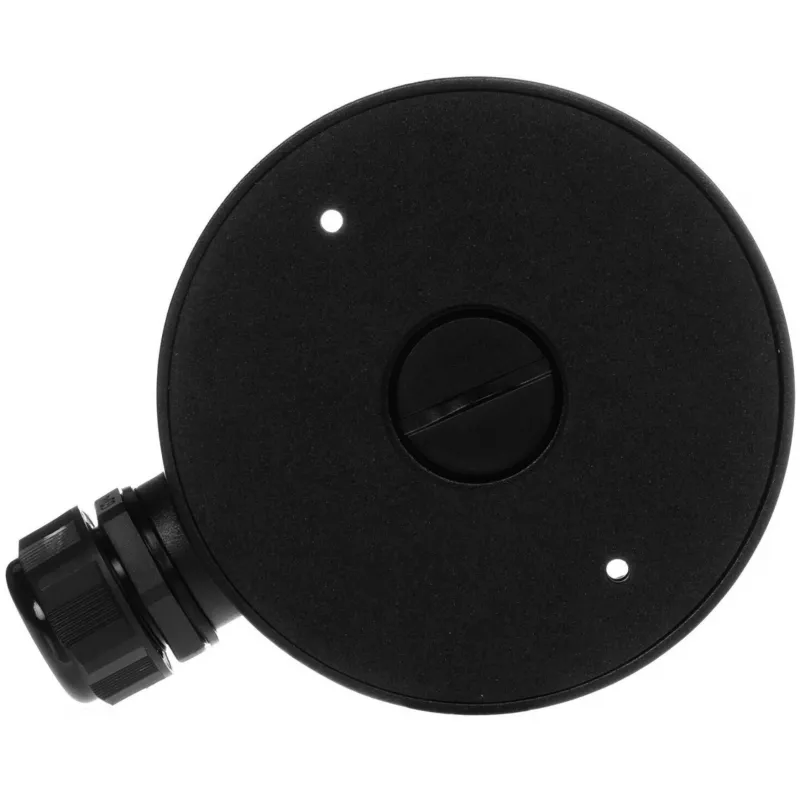

DELTA STG-1280ZJ-DM46(BLACK) Junction Box / Camera Mount, Black, Aluminum Alloy

The DELTA STG-1280ZJ-DM46(BLACK) is a high-quality junction box and camera mount designed for professional surveillance installations. Crafted from durable aluminum alloy with a powder-coated finish, this black mount offers excellent corrosion and weather resistance, making it suitable for both indoor and outdoor environments. It features integrated cable management for a clean installation and supports a maximum load capacity of 4.5 kg.

Advantages

This mount provides a secure and reliable mounting solution for dome cameras, with a circular design that allows for wall or ceiling installation. The integrated cable management ensures a tidy setup, while the robust aluminum alloy construction guarantees long-lasting performance even in harsh conditions.

Suitable for

• Hikvision DS-2CD21xx, DS-2CE56xx, DS-2CE76xx series dome cameras
• Other compatible dome cameras with standard M4 mounting screw thread
• Indoor and outdoor surveillance applications

Key specifications

• Product Type: Junction Box / Camera Mount
• Material: Aluminum Alloy
• Color: Black
• Mounting Type: Wall Mount, Ceiling Mount
• Application Environment: Indoor / Outdoor
• Cable Management: Integrated
• Max Load Capacity: 4.5 kg (9.92 lbs)

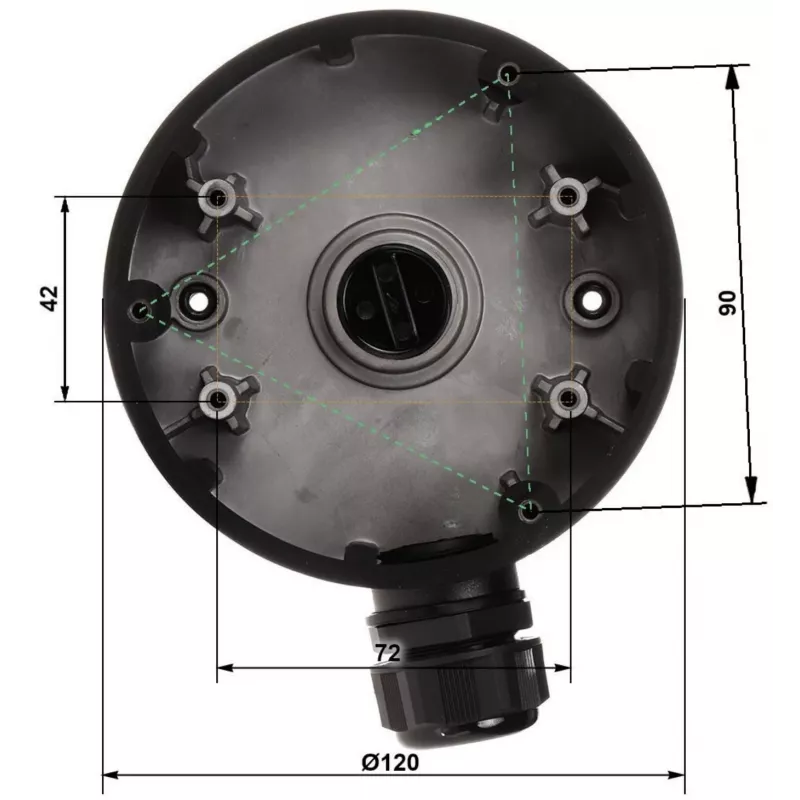

• Diameter: 120 mm (4.72 inches)
• Height: 43.2 mm (1.70 inches)
• Operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Humidity: 0% to 90% (non-condensing)
• Compatibility: Hikvision DS-2CD21xx, DS-2CE56xx, DS-2CE76xx series dome cameras
• Corrosion Resistance: Yes
• Weather Resistance: Yes (Outdoor Rated)
• Design: Circular Junction Box
• Finish: Powder Coated
• Mounting Screw Thread: M4

Recommendations

For optimal performance, ensure that the mount is securely fastened to a solid surface and that the camera is properly attached using the M4 screws. This mount is ideal for professional security system installations requiring a durable and weatherproof mounting solution.
