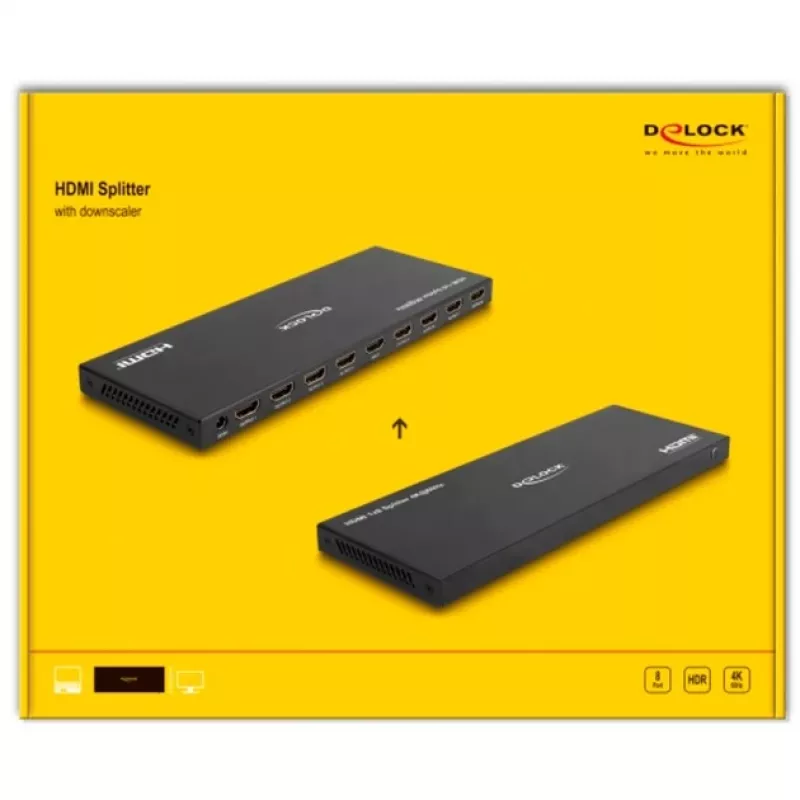

DeLOCK HDMI Splitter 1 x HDMI in to 8 x HDMI out 4K 60 Hz

The DeLOCK HDMI Splitter receives one HDMI signal from a PC or laptop and distributes it to eight HDMI displays. It supports a maximum resolution of 3840 x 2160 at 60 Hz and is housed in a robust black metal case. The device operates from an AC input of 100–240 V and allows a single HDMI connection to run multiple monitors for presentations, digital signage or home entertainment.

Advantages

The splitter enables one HDMI source to drive eight HDMI outputs simultaneously, reducing the need for multiple source devices. It supports 4K@60 Hz for high-resolution content and includes an integrated downscaler to output 1080p to displays that do not support 4K. The metal housing improves durability and heat dissipation while the compact design simplifies installation in AV setups.

Suitable for

• Presentations in meeting rooms and classrooms
• Digital signage and information displays
• Multi-screen home entertainment systems
• Exhibitions and trade show booths

Key specifications

• Brand: DELOCK
• Model / MPN: 18654
• EAN: 4043619186549
• Video port type: HDMI
• Inputs / Outputs: 1 x HDMI in, 8 x HDMI out (9 total video ports)
• Maximum resolution: 3840 x 2160 (4K) at 60 Hz
• Downscaler: 4K to 1080p
• Supply voltage: AC 100–240 V
• Colour: Black

How to use

Connect the HDMI source (PC, laptop or media player) to the splitter's HDMI input and connect up to eight HDMI displays to the outputs. Plug the AC power adapter into a suitable mains outlet (100–240 V). Power on the source and the connected displays. If a connected monitor does not support 4K, the splitter's downscaler will automatically output 1080p to that display.

Recommendations

Use high-quality HDMI cables rated for 4K@60 Hz and keep cable runs within recommended lengths to maintain signal integrity. Ensure connected displays and source devices are set to compatible resolutions and refresh rates. Place the splitter in a ventilated location to avoid overheating.
