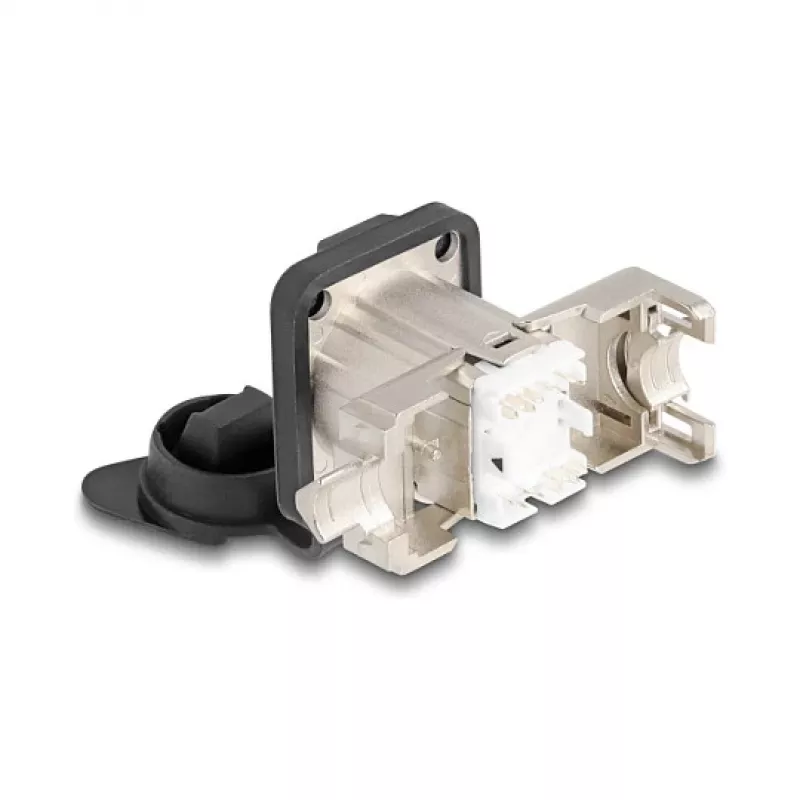

Delock D-Type RJ45 Panel Mount Jack Cat.6A STP with LSA Termination and IP66 Protective Cap

Industrial and outdoor Ethernet installations often fail when standard RJ45 jacks are exposed to dust, moisture, or mechanical stress. The Delock 67063 solves this by providing a rugged D-type panel mount jack with a sealed protective cap, ensuring reliable 10 Gigabit connectivity even in harsh environments.

Who is it for

Network installers, system integrators, and maintenance teams who need a dependable, weatherproof Ethernet connection point for industrial machinery, outdoor enclosures, or professional AV setups.

Main features

• Cat.6A performance supports 10GBASE-T up to 500 MHz, ideal for high-speed backbone links.
• STP shielding with nickel-plated metal housing reduces EMI interference in electrically noisy areas.
• LSA (Krone) IDC termination allows quick, tool-free connection of solid core installation cables.
• IP66-rated protective cap keeps the jack dustproof and waterproof when not in use, or when a cable is connected.

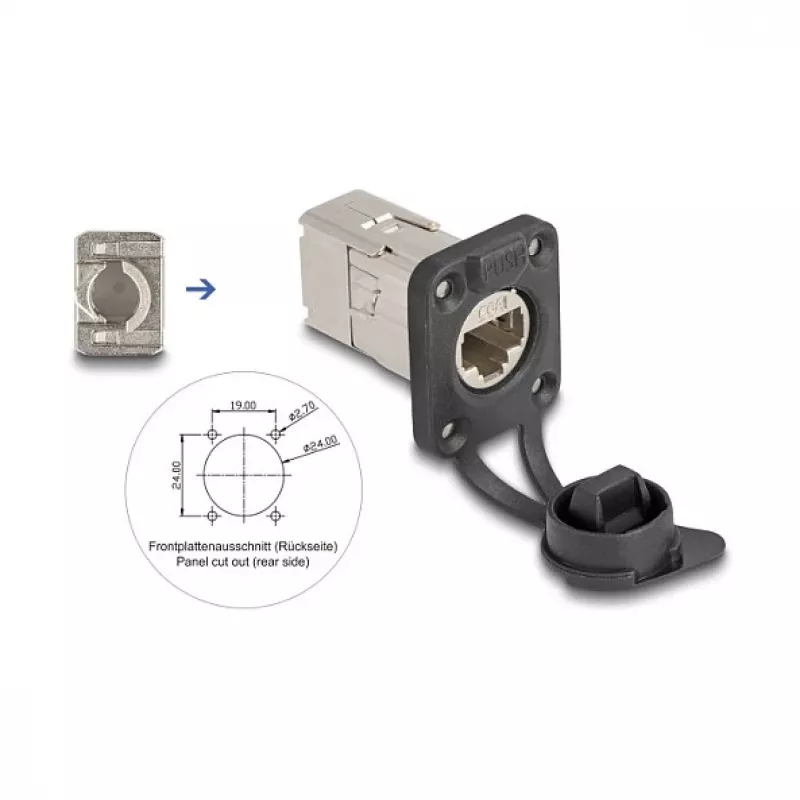

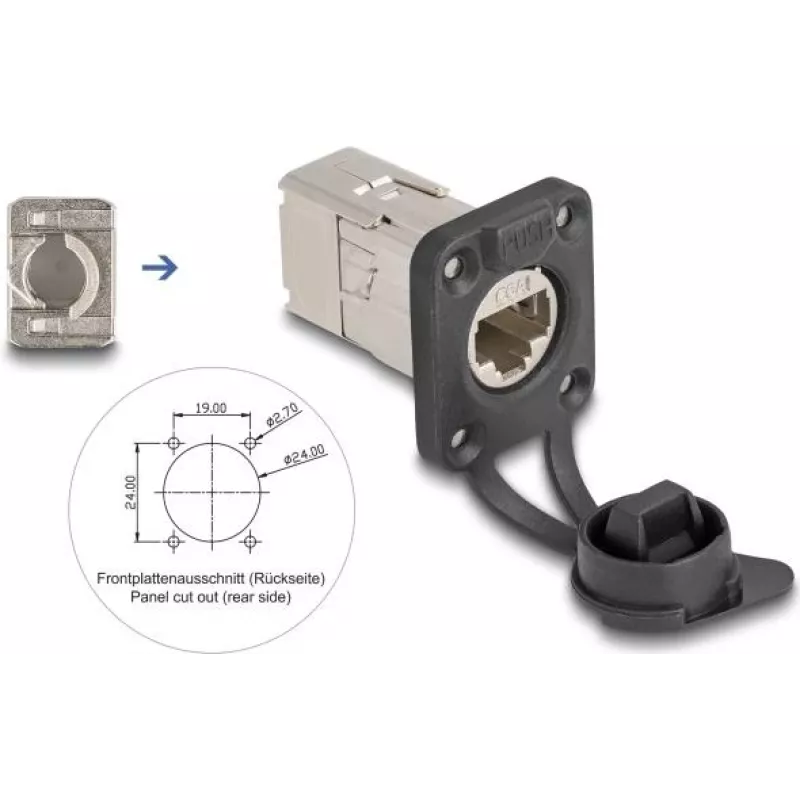

• Standard D-type panel cutout (24 x 19 mm) fits common industrial panels and faceplates.

Specifications

• Connector type: RJ45 female, 8P8C
• Mounting: D-type panel mount, front mount with screws
• Category: Cat.6A (ISO/IEC 11801, TIA/EIA-568B.2-10)
• Shielding: STP, fully shielded metal housing
• Termination: LSA (Krone) insulation displacement, suitable for solid conductors 22-26 AWG
• Data rate: 10 Gigabit Ethernet (10GBASE-T)
• Protection: IP66 with protective cap (dust-tight and protected against powerful water jets)
• Wiring: T568A or T568B
• Operating temperature: -20 °C to 70 °C
• Housing material: nickel-plated metal
• Contact plating: gold
• Colour: silver

Tips

For outdoor use, pair this jack with a shielded Cat.6A patch cable and ensure the protective cap is securely tightened when the port is not in use to maintain the IP66 rating.
