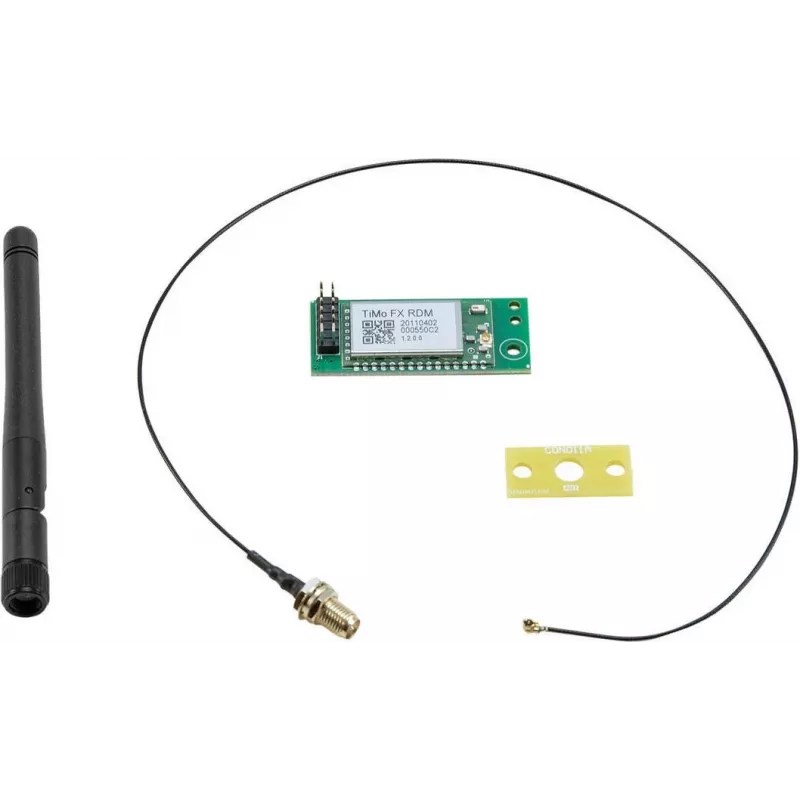

FUTURELIGHT WDR-TIMO-2 Wireless DMX Receiver Board 51834029

Wireless DMX receiver board for internal integration into lighting fixtures, delivering reliable W-DMX G4S compatibility over a 500 m line-of-sight range. This PCB module brings wireless DMX512 reception directly to your fixture's control electronics with ultra-low latency under 5 ms, ensuring tight synchronization for demanding stage and event productions.

Advantages

The WDR-TIMO-2 eliminates the need for external wireless receivers, reducing clutter and simplifying installation. Its adaptive frequency hopping (AFH) technology automatically avoids interference in the crowded 2.4 GHz band, while the failsafe function holds the last DMX state if the signal is lost, preventing blackouts. Plug-and-play operation and LED status indicators make setup straightforward, and the SMA antenna connector allows flexible antenna placement for optimal reception.

Suitable for

• Moving heads, LED pars, and wash lights requiring internal wireless DMX
• Architectural lighting installations where cabling is impractical
• Rental and production companies seeking to retrofit fixtures with wireless capability
• OEM manufacturers integrating wireless DMX into new lighting products

Key specifications

• Wireless protocol: W-DMX G4S compatible
• Frequency band: 2.400 - 2.4835 GHz ISM
• DMX universes: 1 (512 channels)
• Maximum range: 500 m line of sight
• Latency: < 5 ms
• Power supply: 5 V DC
• Antenna connector: SMA
• Data interface: DMX512 via internal header
• Mounting: PCB, for internal integration

Recommendations

For best performance, mount the board away from metal shielding and use a high-gain omnidirectional antenna. Verify that your fixture's DMX input header matches the pinout before installation. Pair with a W-DMX G4S transmitter for a complete wireless solution.
