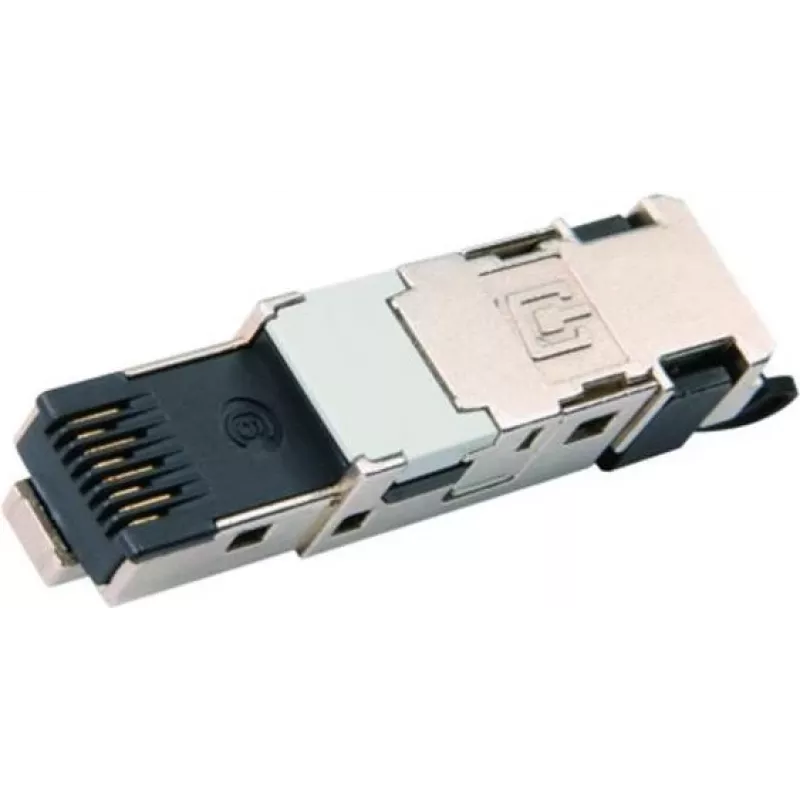

Telegärtner STX IP20 RJ45 Plug Cat.6 AWG22-26, Tool-less Field Termination, T568B Colour-Coded, Shielded, 10G J80026A0046

Network technicians in office buildings and industrial facilities rely on the Telegärtner STX IP20 RJ45 plug for fast, reliable field termination of Cat.6 cabling. This shielded 8P8C connector supports solid and stranded conductors from AWG 22 to 26, with a tool-less IDC mechanism that speeds up installation without sacrificing performance. The printed T568B colour code on the wire manager reduces wiring errors, while the die-cast zinc housing ensures durability in demanding environments.

Key specifications

• Connector type: RJ45 plug, 8P8C
• Category: Cat.6 (Class E), up to 250 MHz
• Shielding: Shielded, compatible with FTP/STP cables
• Termination: Tool-less IDC, field-terminable
• Conductor support: AWG 22/1 - 26/1 solid, AWG 22/7 - 26/7 stranded
• Wiring standard: T568A and T568B, with printed T568B colour code
• Data rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• PoE support: IEEE 802.3af/at/bt (PoE, PoE+, PoE++)
• Housing: Die-cast zinc, nickel-plated
• Contact plating: Gold, 0.8 µm
• Operating temperature: -40 °C to +70 °C
• Mating cycles: ≥ 750
• Cable outer diameter: 4.5 mm - 8.0 mm
• Reusability: Up to 5 termination cycles
• IP rating: IP20

Why choose it

The STX IP20 plug eliminates the need for special crimping tools, reducing installation time and potential errors. Its robust metal housing and gold-plated contacts ensure long-term signal integrity, while the wide conductor range and reusability make it a versatile choice for various cable types. The printed colour code simplifies termination, even for less experienced technicians.

Ideal use cases

• Field termination of Cat.6 horizontal cabling in offices and data centres
• Industrial Ethernet connections requiring shielded connectors
• High-speed PoE applications such as IP cameras and wireless access points
• Retrofitting existing cabling where tool-less installation is preferred

Good to know

The connector is designed for indoor use (IP20) and supports both T568A and T568B wiring schemes. For optimal performance, ensure proper cable preparation and follow the colour-coded wire manager. The zinc die-cast housing provides excellent shielding effectiveness and mechanical stability.
