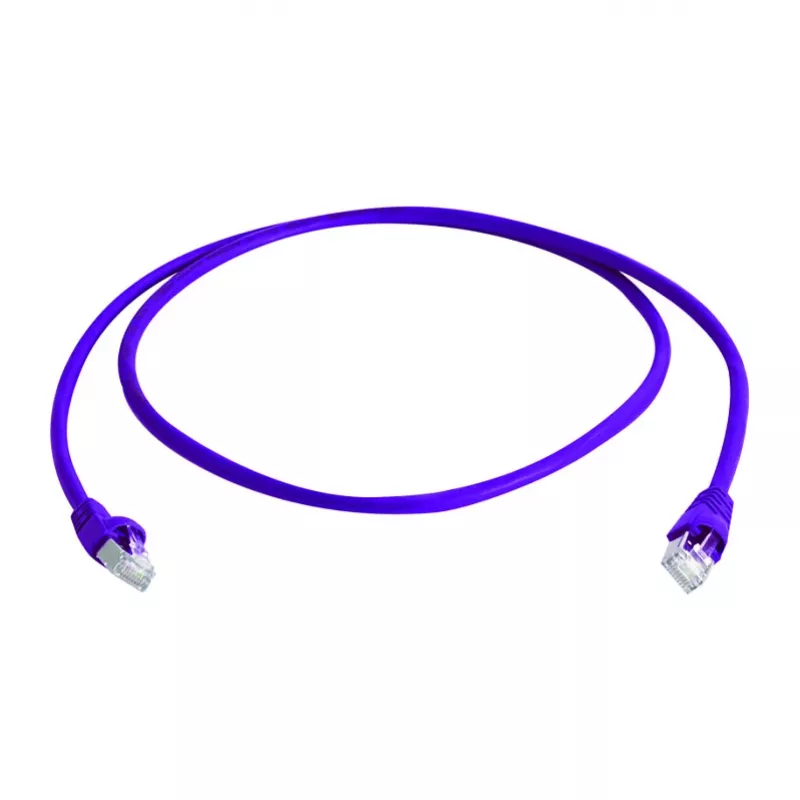

Networking Cable Telegärtner MP8 FS 500 LSZH 1m

The Telegärtner MP8 FS 500 LSZH 1m is a Cat6a networking cable with SF/UTP shielding and RJ-45 connectors, designed for data transmission up to 10000 Mbit/s. The cable uses copper contacts and a moulded strain relief boot; jacket and boot materials are available in PVC or LSZH (Low Smoke, Zero Halogen). Colour options include purple and several other colours, and very short boot variants are available.

Advantages

The moulded boot provides flexible, strain-relieved protection while versions with 90°, 180° and 270° boots and latch protection enable installation in confined spaces. For shielded cable types, the plug offers 360-degree surrounding shielding to maintain signal integrity. Multiple colour options simplify cable identification in complex installations.

Suitable for

• High-speed Ethernet networks (Cat6a) requiring up to 10000 Mbit/s
• Data centres, server racks and patch panels
• Environments where reduced halogen and smoke materials (LSZH) are preferred
• Tight or angled cable routing using 90°, 180° or 270° boot variants

Key specifications

• Standard: Cat6a
• Shielding: SF/UTP (shielded pairs with overall braid)
• Connector: RJ-45 with copper contacts
• Data rate: up to 10000 Mbit/s
• Length: 1 m
• Boot types: 90°, 180°, 270°, and very short boot variants; moulded strain relief
• Plug shielding: 360° surround (for shielded cable types)
• Cable jacket / boot material: PVC or LSZH (Low Smoke, Zero Halogen)
• Colours: grey, green, red, blue, yellow, black, white, purple

How to use

Insert the RJ-45 connector into the network port until the latch clicks to ensure a secure connection. Choose the appropriate boot angle (straight, 90°, 180°, 270° or very short) based on available space and routing requirements. For shielded cable types, ensure proper grounding of the cable shield to maintain the effectiveness of the 360° plug shielding.

Recommendations

Use LSZH material in indoor areas where low smoke and halogen-free behaviour is required. Avoid excessive bending near the connector; maintain bend radii recommended for Cat6a cables and use strain relief to prevent mechanical stress on contacts.
