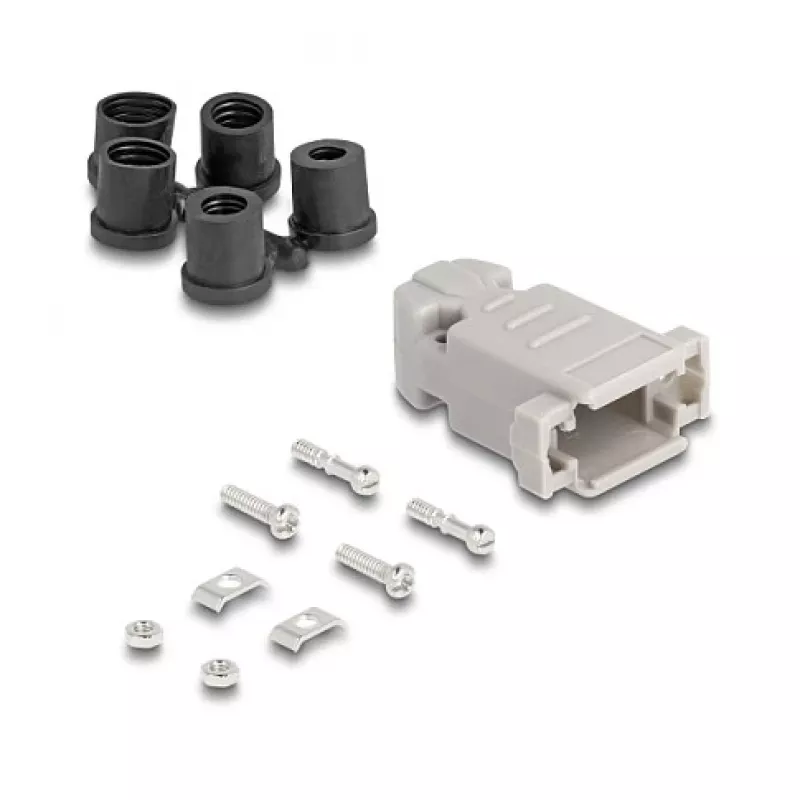

DELOCK D-Sub housing 9‑pin with rubber seals, plastic, black/grey, 41.6×31.6×19.8 mm

This DELOCK D-Sub housing is designed for standard 9‑pin D‑Sub male or female connectors and offers a compact protective enclosure measuring 41.6 × 31.6 × 19.8 mm. The plastic shell combines black and grey tones and includes integrated rubber sealing inserts with different inner diameters to accommodate cable diameters and provide a dust- and splash-reducing interface. Supplied as a single-piece unit, the housing is intended for DIY assembly to encase and protect D‑Sub connections in electronics, instrumentation or control panels.

Advantages

The housing provides a secure outer shell that helps protect the connector from dirt, mechanical abrasion and environmental ingress. Integrated rubber seals of varying inner diameters enable a tailored cable seal to reduce gaps around the cable entry. The compact plastic construction is lightweight and suitable for low-profile installations while allowing straightforward assembly for retrofitting or new builds.

Suitable for

• Encasing standard 9‑pin D‑Sub male or female connectors
• DIY installation and field assembly of D‑Sub connections
• Equipment and control cabinets where dust protection is required
• Small electronic devices and instrumentation with limited space

Key specifications

• Compatibility: standard 9‑pin D‑Sub connectors (male or female)
• Material: plastic housing with integrated rubber seals
• Color: black and grey
• Dimensions: 41.6 × 31.6 × 19.8 mm (external enclosure size)
• Pack quantity: 1 piece

How to use

Open the housing and position the 9‑pin D‑Sub connector inside so the connector flange aligns with the enclosure openings. Select the rubber sealing insert with the inner diameter that best fits the cable to be used and place it around the cable entry. Close the housing around the connector and fasten according to the housing’s assembly method to ensure the seals compress and form an effective barrier. Verify the connector is firmly seated and that the sealing insert surrounds the cable without large gaps.

Recommendations

For improved long-term protection, choose the rubber insert that most closely matches the cable diameter and secure the housing in a stable position to avoid repeated strain on the cable-entry point. Use in environments within the material’s temperature and chemical exposure limits to maintain seal integrity.
