DeLOCK D-Sub 15 pin male to Terminal Block for DIN rail 58mm x 61mm x 30mm

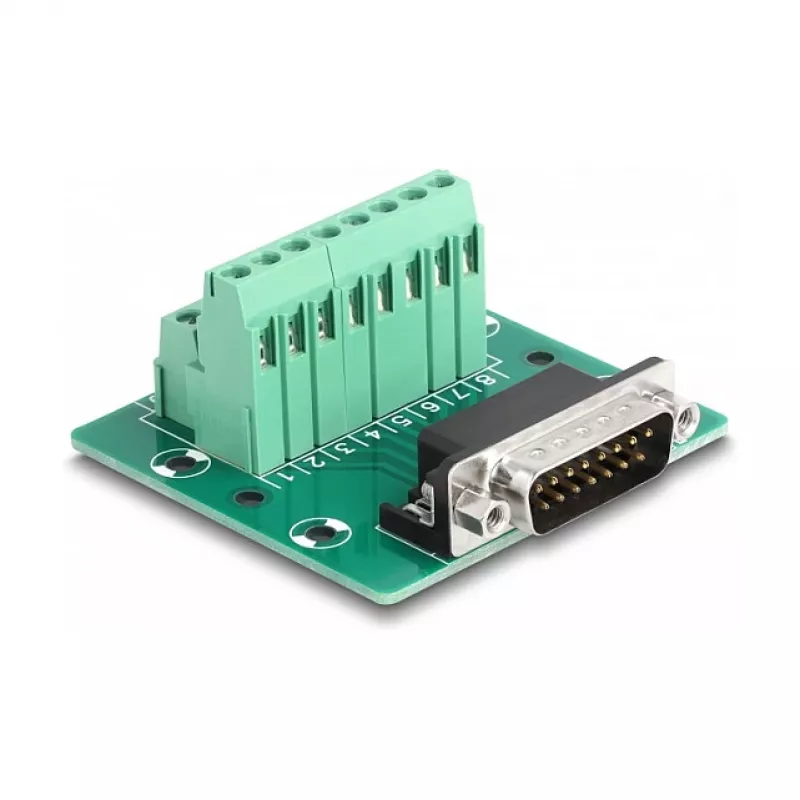

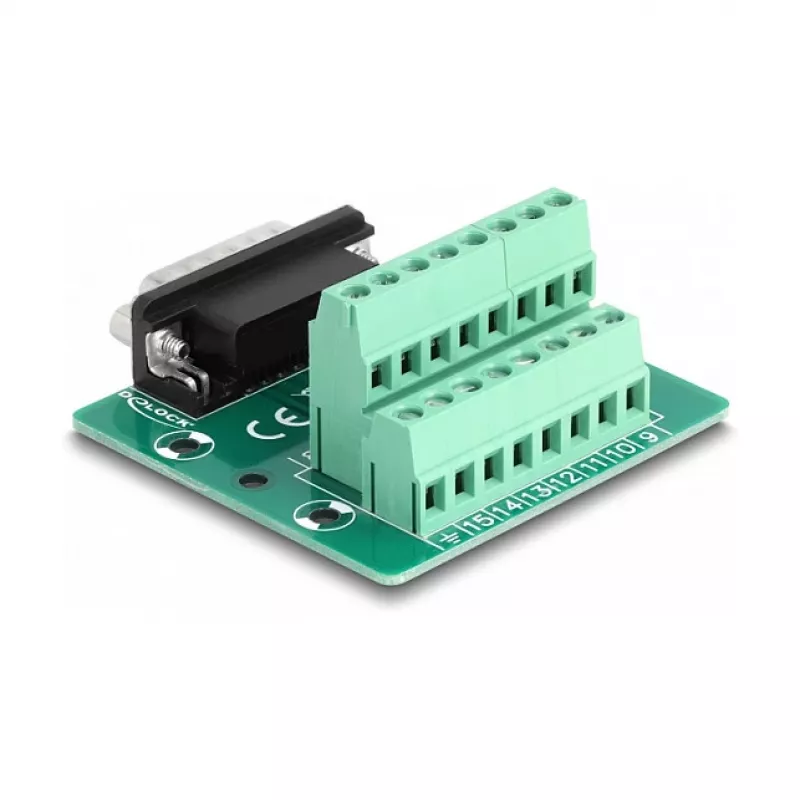

The DeLOCK D-Sub 15 pin male to Terminal Block for DIN rail is a compact adapter that converts a D-Sub 15-pin male connector to a screw terminal block for wires with stripped ends. Designed for DIN rail mounting, the adapter measures 58 mm × 61 mm × 30 mm and is suitable for control cabinets and industrial installations where a D-Sub connection must be routed to individual conductors. The product is green and manufactured in China.

Advantages

The adapter provides a straightforward interface between a male D-Sub 15 connector and individual wires, simplifying signal distribution and field wiring. Its compact dimensions save space in control panels, and included mounting clips allow attachment to either 15 mm or 35 mm DIN rails without additional accessories.

Suitable for

• Connecting D-Sub 15-pin signals to individual stripped wires
• DIN rail installations in control cabinets and electrical enclosures
• Industrial equipment where compact terminal conversion is required

Key specifications

• Connector type: D-Sub 15 pin (male) to terminal block

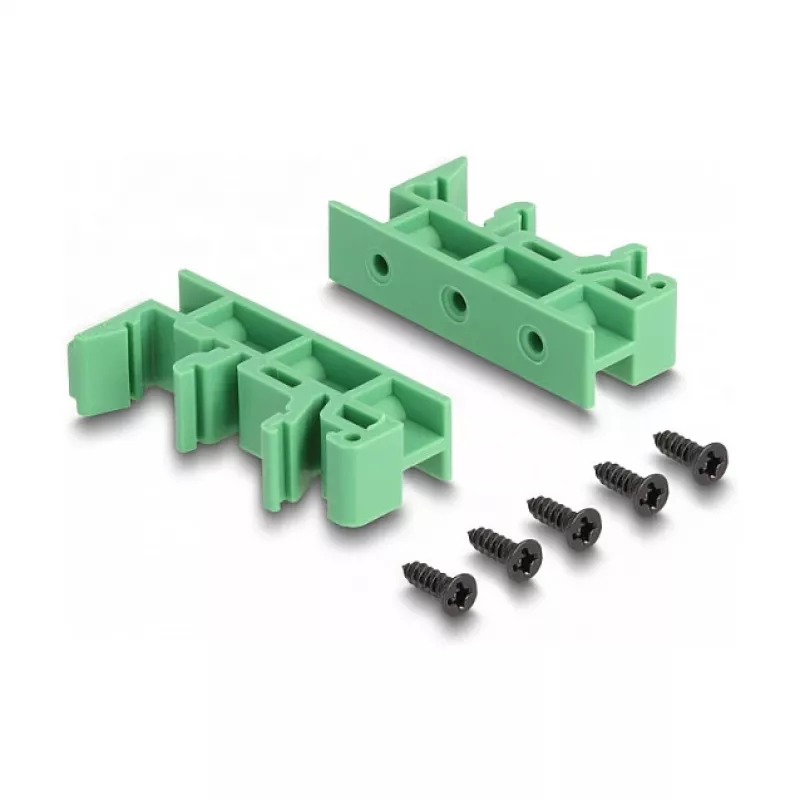

• Mounting: DIN rail (clips for 15 mm and 35 mm included)
• Dimensions: 58 mm (W) × 61 mm (D) × 30 mm (H)
• Colour: Green
• Manufacturer country: China
• Brand: DELOCK, MPN: 66909, EAN: 4043619669097

How to use

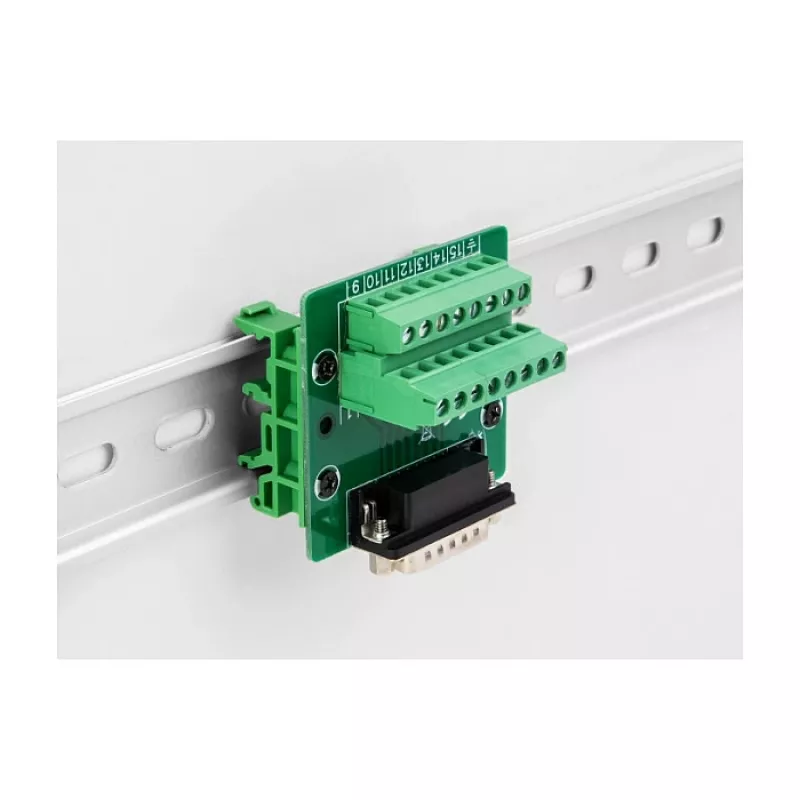

Attach the supplied clips to the adapter and snap it onto a compatible 15 mm or 35 mm DIN rail. Insert the male D-Sub 15 connector into the adapter. Strip the ends of the wires to the appropriate length, insert them into the corresponding terminal block contacts and secure them according to the terminal’s tightening method. Verify all connections before applying power or signal.

Recommendations

Use the adapter in environments that match the product’s electrical and mechanical requirements; ensure proper wire stripping length and torque for secure connections. For safety, perform installation with the system powered down and follow applicable wiring standards.
