DeLOCK 11495 computer data switch 5 Gbit/s Black Plastic

The DeLOCK 11495 computer data switch enables two computer systems to share a single USB 3.0 peripheral at up to 5 Gbit/s. Housed in a black plastic enclosure (106 × 56 × 25 mm), the switch is supplied with USB Type-A to USB Type-B cables and is designed for easy integration on desks or metal surfaces.

Advantages

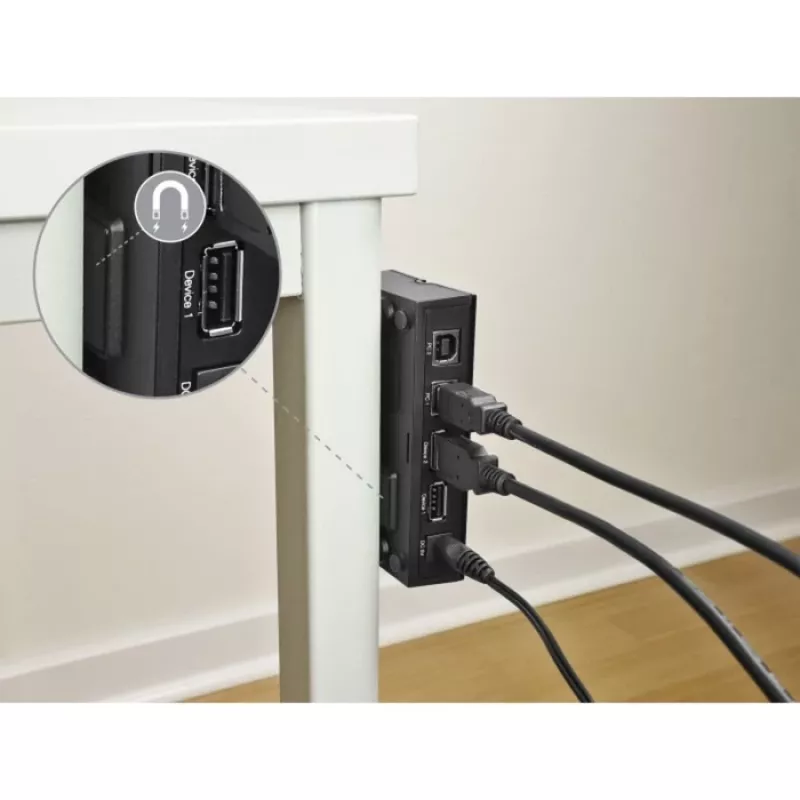

The switch provides a memory function that retains the last selected port even after power-off and supports manual port selection via a front button whether or not one of the connected systems is powered. A built-in magnet allows secure attachment to suitable metal surfaces, and the case also includes provisions for mounting with screws.

Suitable for

• Sharing a single USB 3.0 printer, scanner or external drive between two PCs
• Workstations that require occasional access to the same USB peripheral
• Small offices or home setups where cable swapping should be avoided

Key specifications

• Model: DeLOCK 11495
• Interface: USB 3.0 (up to 5 Gbit/s)
• Included cables: USB Type-A to USB Type-B
• Housing: black plastic
• Dimensions: 106 × 56 × 25 mm
• Mounting: built-in magnet and screw mounting option

How to use

Connect the included USB Type-A to Type-B cables from each computer to the switch, then connect the USB 3.0 peripheral to the switch output. Use the front button to select the active computer; the unit will remember the last selected port after shutdown and restart. Ensure the peripheral drivers are installed on the selected computer before switching.

Recommendations

Place the switch on a clean metal surface for magnetic mounting or secure it using screws to prevent accidental movement. For reliable operation, connect high-speed USB devices with the supplied USB 3.0 cables and avoid switching during large data transfers.
