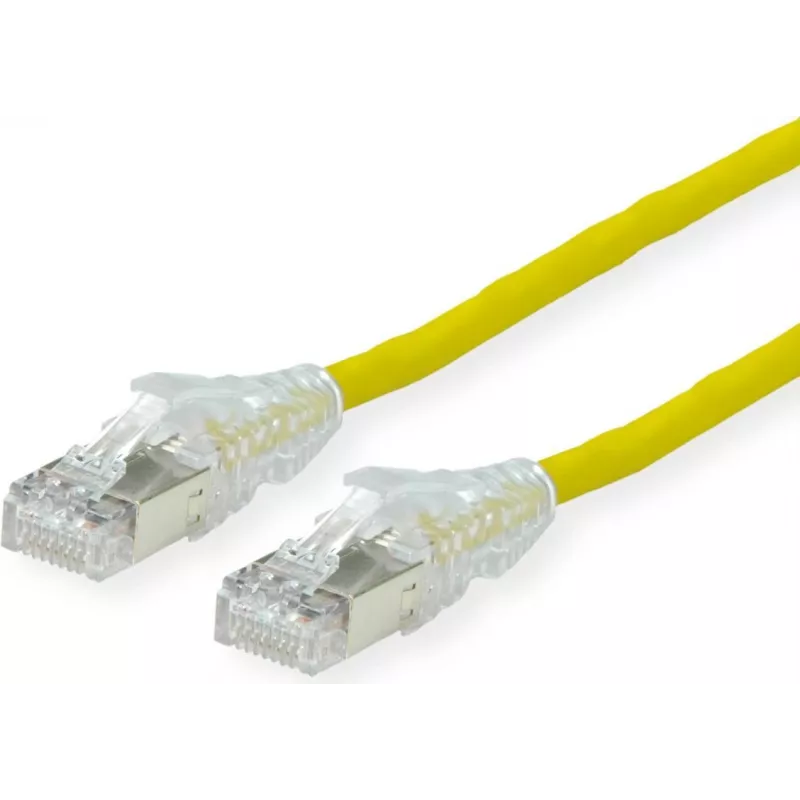

Dätwyler Cat.6A U/UTP Patch Cable, Yellow, 0.5m, AMP v2, LS0H

The Dätwyler Cat.6A U/UTP patch cable in yellow, 0.5m length, is a high-performance network cable designed for reliable Gigabit Ethernet connections. Featuring the AMP v2 connector series and LS0H jacket, it ensures safety and durability in demanding environments.

Advantages

This cable offers excellent transmission performance up to 250 MHz, supporting 10/100/1000BASE-T networks. The LS0H jacket reduces toxic smoke in case of fire, making it ideal for public and commercial buildings. The stranded bare copper conductors provide flexibility and long-lasting connectivity.

Suitable for

• Data center patching
• Office network connections
• Industrial Ethernet applications
• PoE and PoE+ devices

Key specifications

• Cable Category: Cat.6A
• Length: 0.5 m
• Colour: Yellow
• Connector: RJ45 Male to RJ45 Male, AMP v2
• Jacket Material: LS0H (Low Smoke Zero Halogen)
• Conductor: Bare Copper, AWG 26/7 stranded
• Wiring Standard: TIA/EIA-568B
• Frequency Bandwidth: Up to 250 MHz
• PoE Support: PoE, PoE+
• Flame Retardancy: IEC 60332-1-2
• Halogen-Free: IEC 60754-2
• Smoke Density: IEC 61034-2
• Operating Temperature: -20°C to +60°C

Recommendations

For optimal performance, use with Cat.6A compatible switches and patch panels. Ensure proper cable management to maintain signal integrity.
