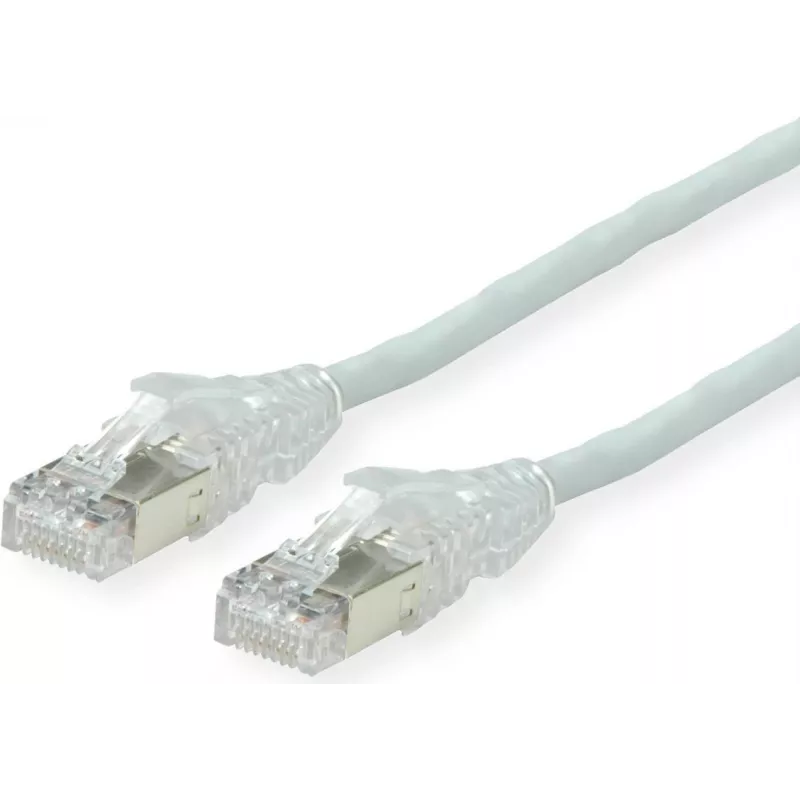

Dätwyler Cat6A AMP X v2 Grey 1m CU 7702 flex LS0H v2 Network SFTP Patch Cable

The Dätwyler Cat6A AMP X v2 patch cable is a high-performance network cable designed for demanding Ethernet applications. With a length of 1 meter and a grey LS0H jacket, this cable ensures reliable data transmission and safety in case of fire. It features stranded copper conductors for flexibility and is shielded (S/FTP) to minimize electromagnetic interference. Compatible with AMP X v2 connectors, it supports data rates up to 10 Gbps and is ideal for data centers and office environments.

Advantages

This cable offers excellent signal integrity and reduced crosstalk thanks to its Category 6A performance and shielding. The LS0H jacket makes it halogen-free and low smoke, enhancing safety in enclosed spaces. Its flexible stranded design allows for easy installation in tight spaces and patch panels.

Suitable for

• Ethernet networks requiring 10GBASE-T
• Data centers and server rooms
• Office and commercial building cabling
• PoE applications (Power over Ethernet)

Key specifications

• Cable Category: Cat6A
• Length: 1 meter
• Colour: Grey
• Jacket Material: LS0H (Low Smoke Zero Halogen)
• Conductor Material: Copper (CU)
• Conductor Type: Stranded (Flexible)
• Shielding: S/FTP (Braid + Foil)
• Connector Type: RJ45 (8P8C) with AMP X v2
• Data Rate Support: 10/100/1000BASE-T, 10GBASE-T
• Bandwidth: Up to 500 MHz
• PoE Support: Yes
• Flame Retardancy: IEC 60332-1
• Halogen Free: Yes
• Low Smoke: IEC 61034-2
• Zero Halogen: IEC 60754-1/2

Recommendations

For optimal performance, use with compatible Cat6A components and ensure proper termination. This cable is suitable for permanent installations where high data rates and safety are required.
