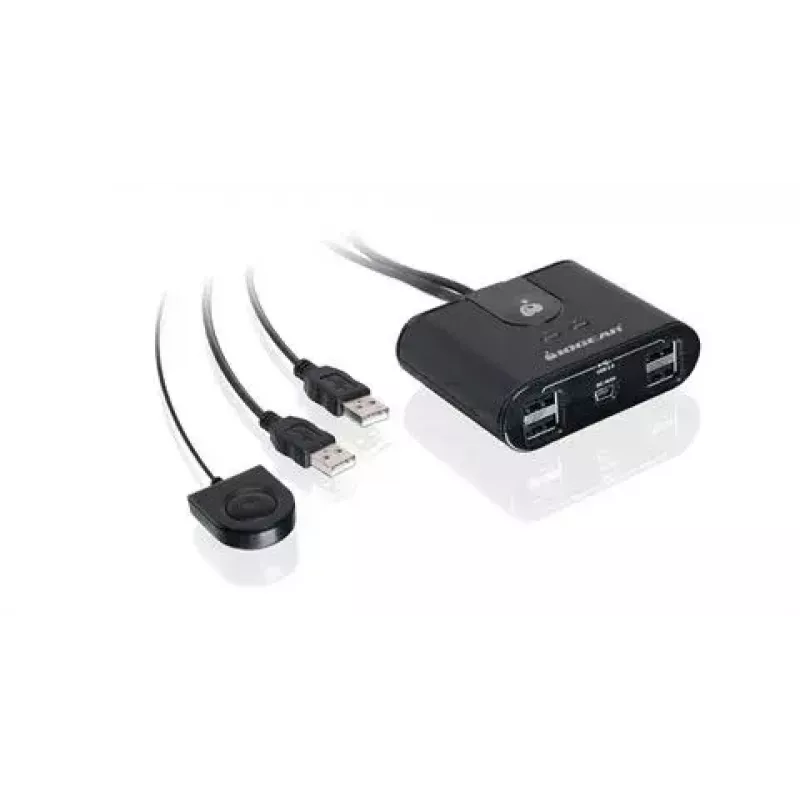

Data Switch IOGEAR GUS402

The IOGEAR 2x4 USB switch (GUS402) lets two computers share up to four USB 2.0 devices such as keyboard, mouse, printer or portable hard drives. The compact unit (77 × 82 × 25 mm, 0.14 kg) reduces cable clutter and removes the need for duplicate peripherals by enabling quick switching between systems with a front button and LED indicator. It supports data transfer rates up to 480 Mbps, is hot-pluggable and includes over-current protection. When a keyboard and mouse are connected, the switch can function as a small USB dock to control two laptops while sharing other connected USB devices.

Advantages

The IOGEAR GUS402 provides simple hardware-based switching between two computers without installing software, saving space and reducing the number of required USB peripherals. Its molded computer-side cables simplify installation and help keep work areas tidy. The device supports charging and syncing of mobile devices through connected computers and offers over-current protection to help protect attached devices.

Suitable for

• Home offices where two computers need to share keyboard and mouse
• Small offices or reception desks that require shared printers or scanners
• Workstations that use external storage devices between two systems
• Environments needing a compact USB dock for two laptops

Key specifications

• Brand: IOGEAR
• Model: GUS402
• Type: 2x4 USB 2.0 peripheral sharing switch
• USB standard: USB 2.0, up to 480 Mbps
• Dimensions: 77 mm (W) × 82 mm (D) × 25 mm (H)
• Weight: 0.14 kg
• Features: Hot-pluggable, LED indicator, over-current protection, molded computer-side cable
• EAN: 881317510969

How to use

Connect the switch to both computers using the molded cables on the computer side, then attach up to four USB devices (keyboard, mouse, printer, external drive) to the device’s USB ports. Press the front button to toggle control between the two connected computers; the LED indicates the active computer. Devices may be hot-plugged as needed. To use the unit as a mini dock, connect a keyboard and mouse and then share additional USB peripherals between the two systems.

Recommendations

For best results, connect high-power devices (such as certain external hard drives) to a computer or a powered USB hub when possible, as the switch is intended for USB peripheral sharing and may not provide dedicated power for all high-current devices.
