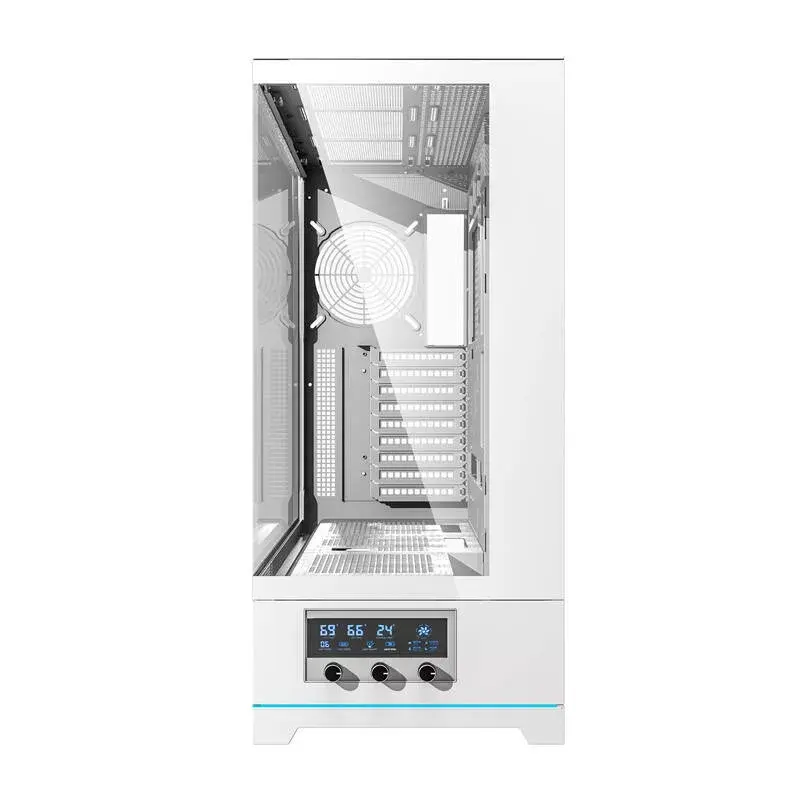

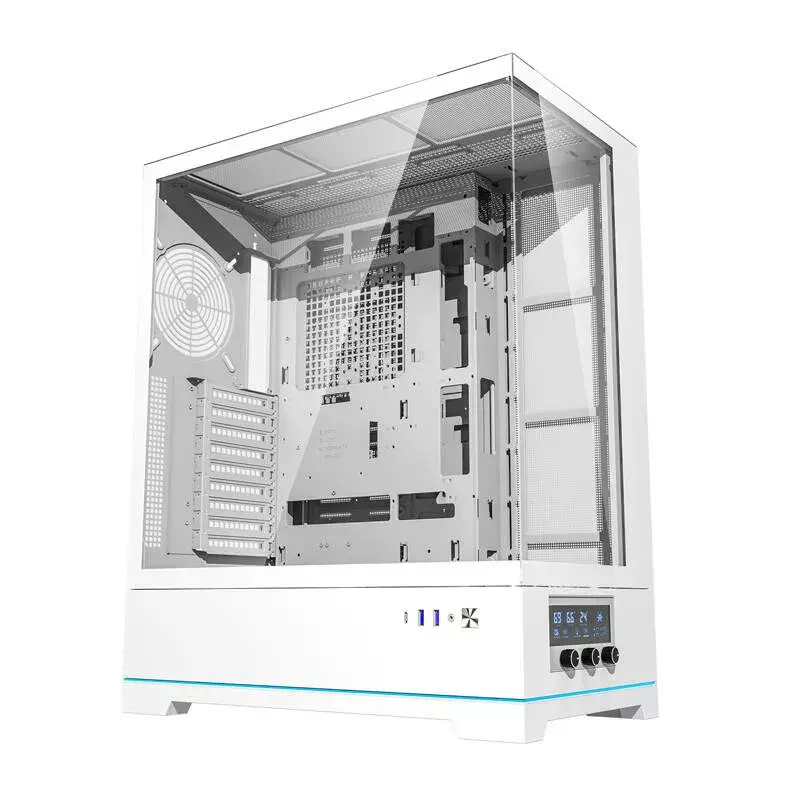

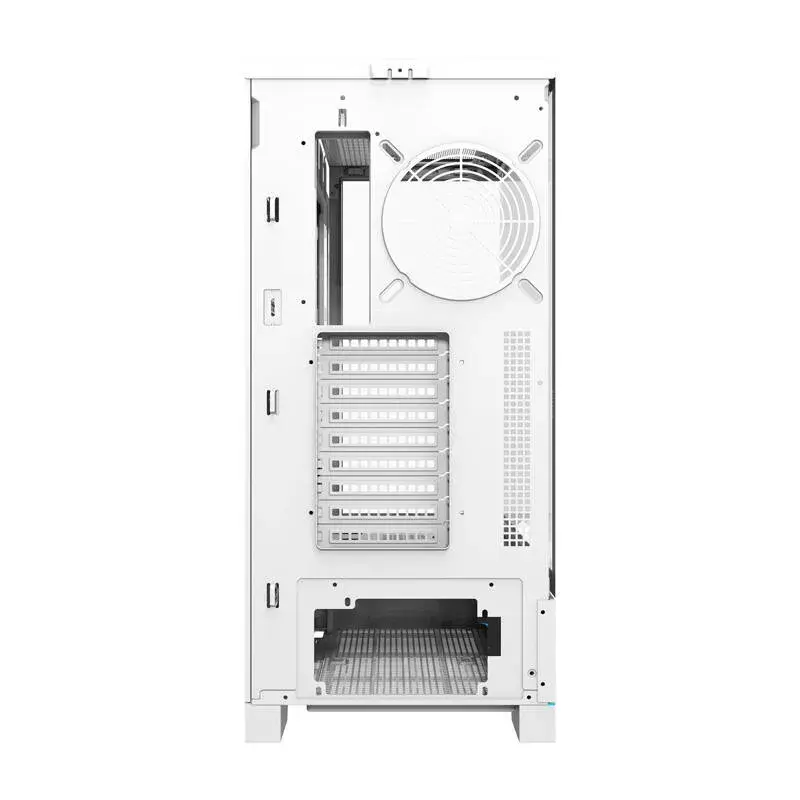

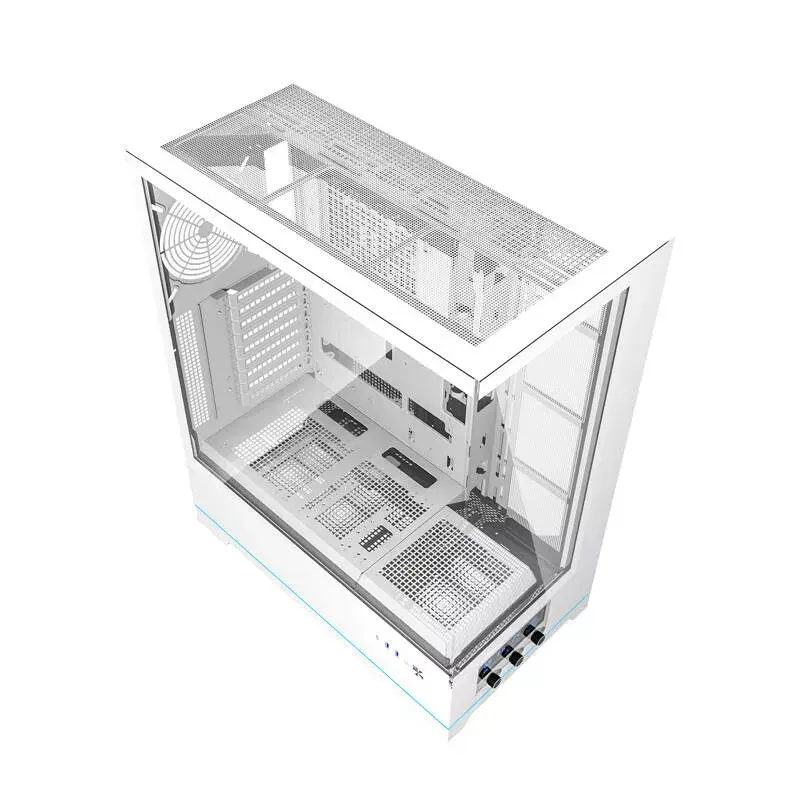

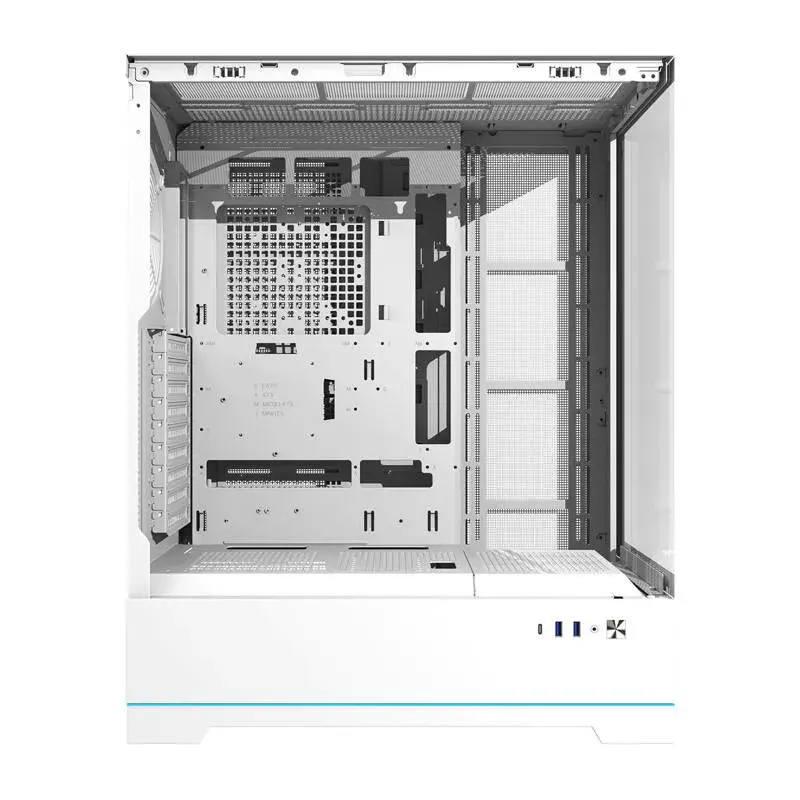

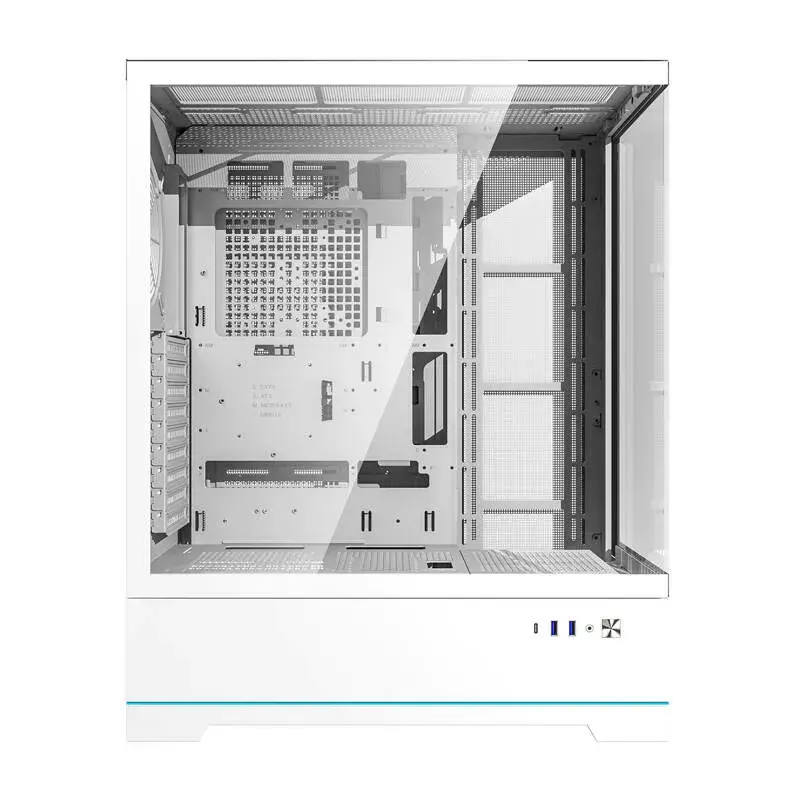

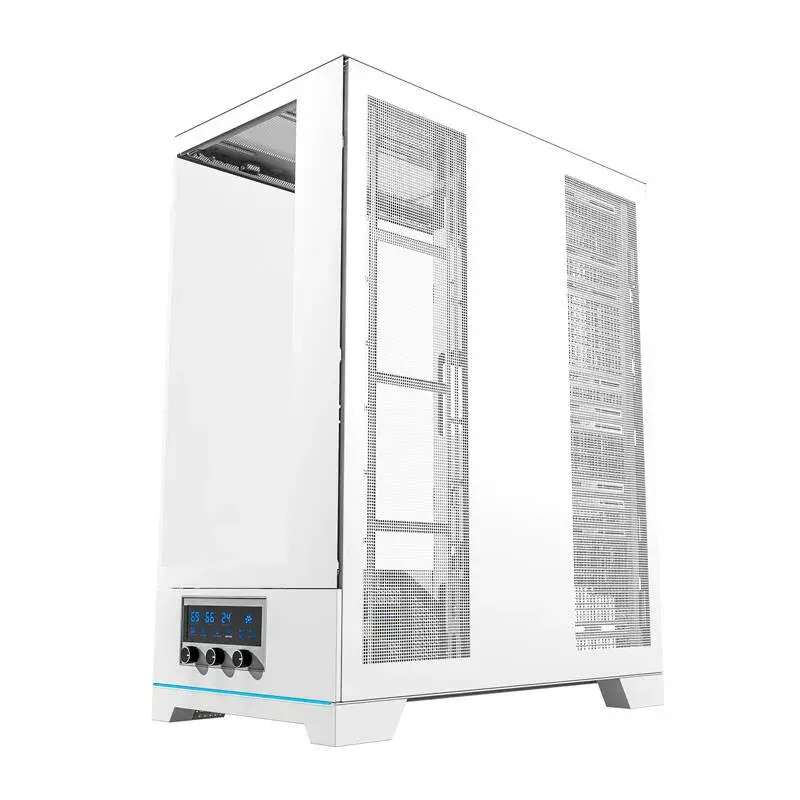

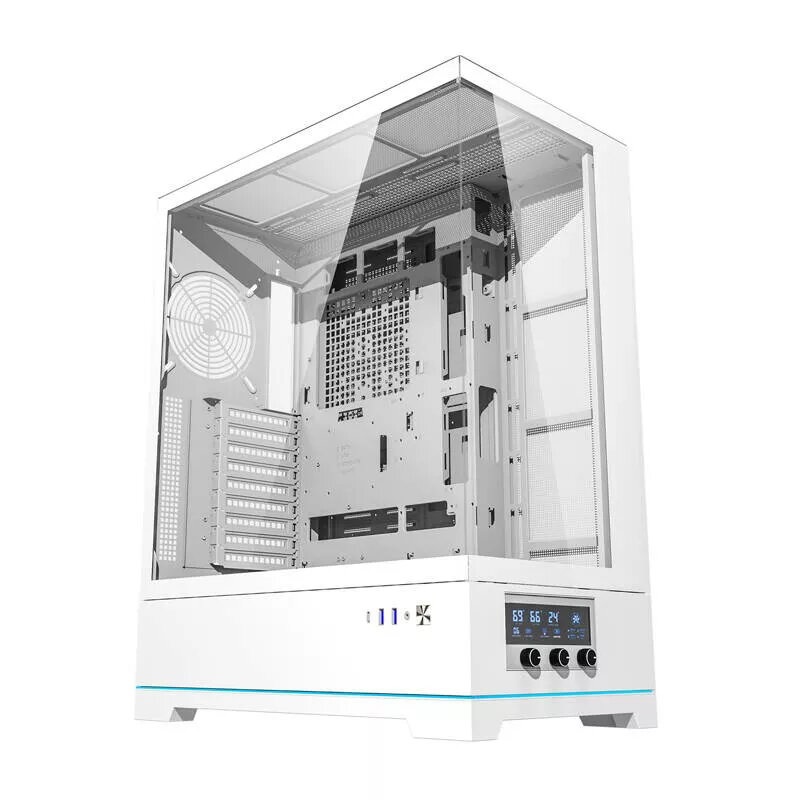

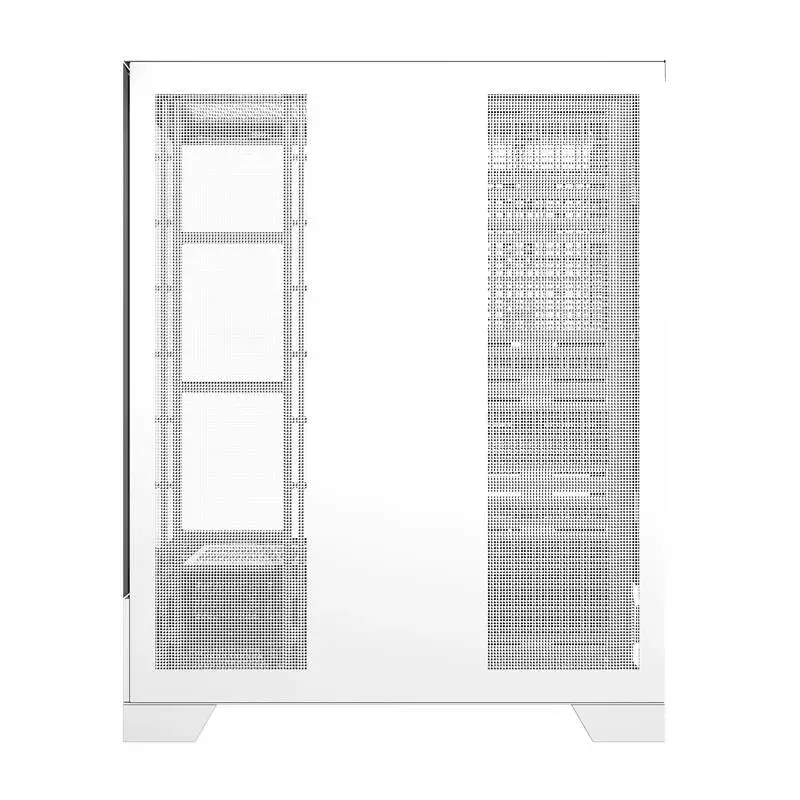

Darkflash DY451L computer case ATX white

Darkflash DY451L is a white ATX mid-tower computer case designed to offer spacious interior, expandability and durable construction for advanced desktop builds. The case supports ATX, Micro ATX and ITX motherboards and provides room for high-performance components while maintaining effective dust protection and flexible cooling options. Note: for full functioning of any integrated display features, download the driver from the manufacturer's website.

Advantages

The DY451L combines a robust 0.8 mm SPCC steel frame with a tempered glass side panel that exposes the interior layout and installed components. It features full-length removable dust filters for easier cleaning and extended component life, accommodates long graphics cards up to 420 mm and allows mounting of multiple radiators and up to 13 fans for a customizable cooling configuration. Front I/O includes USB 3.0, USB-C and HD Audio connections; fans are not included.

Suitable for

• High-performance gaming PCs requiring large GPUs (up to 420 mm)
• Custom builds with multiple storage drives (4 x 3.5" and 4 x 2.5")
• Systems that need extensive air or liquid cooling (supports top 360 mm and side up to 480 mm radiators)
• Silent or fan-optimized builds where users add their preferred A-RGB or non-RGB fans

Key specifications

• Manufacturer: Darkflash; Model: DY451L
• Case type: ATX Mid Tower; Color: White
• Side panel: Tempered glass; Front panel: Steel with ventilation holes
• Supported motherboards: ATX, Micro ATX, ITX
• Power supply: ATX, bottom mount (max length 250 mm)
• Drive bays: 4 x 3.5" and 4 x 2.5"
• Expansion slots: 9; Maximum GPU length: 420 mm
• Maximum CPU cooler height: 180 mm
• Maximum number of fans: 13 (no fans included)
• Fan mounts: Top 3x120/3x140 mm; Rear 1x120/1x140 mm; Side 4x120/3x140 mm; PSU compartment 3x120 mm
• Water cooling mounts: Top 240/280/360 mm; Side 360/420/480 mm
• Front I/O: 2 x USB 3.0, 1 x USB-C, HD Audio
• Material: 0.8 mm SPCC steel, tempered glass
• Dimensions (H x W x D): 568 x 258 x 451 mm

How to use

Install the selected motherboard (ATX/Micro ATX/ITX) on the standoffs, mount the power supply in the bottom compartment and secure drives in the 3.5" or 2.5" bays. Route cables through the available cutouts for tidy cable management and attach fans or radiators in the preferred configuration — top, side or rear — according to the cooling parts' size. Place the tempered glass panel after verifying all internal connections. If you plan to use A-RGB fans, install the lighting components and connect them to a compatible controller or motherboard header.

Recommendations

Use the removable bottom dust filter for regular cleaning to maintain airflow and component longevity. When installing large radiators or long GPUs, verify clearance dimensions (GPU up to 420 mm, CPU cooler up to 180 mm, PSU max 250 mm) to ensure compatibility with your selected components.
