Computer case Darkflash DK431 Mesh, ATX, black

Darkflash DK431 Mesh computer case combines a mesh front panel and a tempered glass side panel to provide effective airflow and a clear view of internal components. The mid-tower chassis supports E-ATX/ATX/micro-ATX motherboards and offers space for multiple storage drives, long graphics cards and tall CPU coolers, making it suitable for gaming rigs and productivity builds.

Advantages

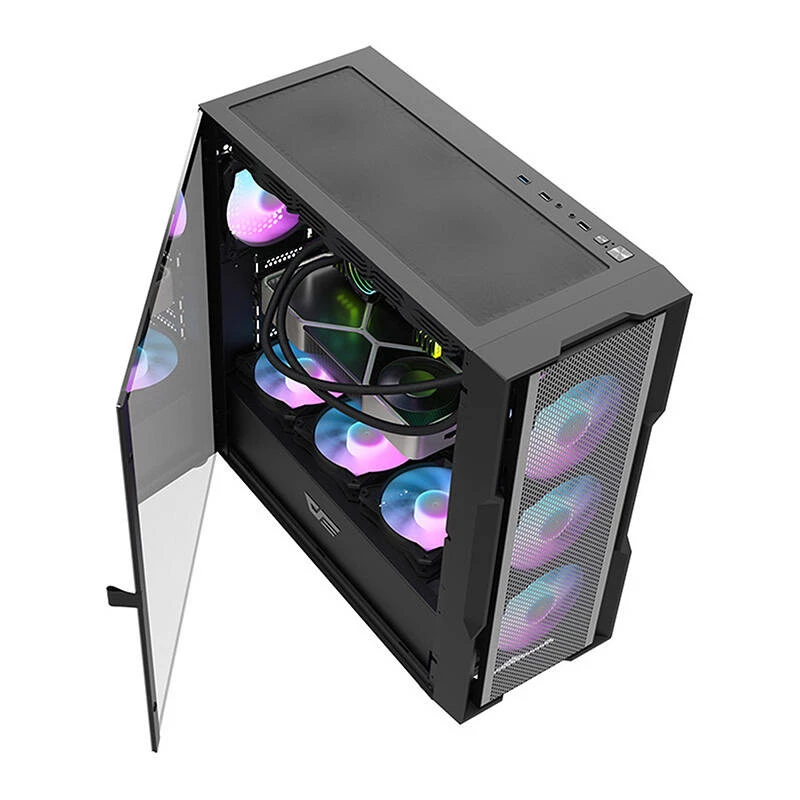

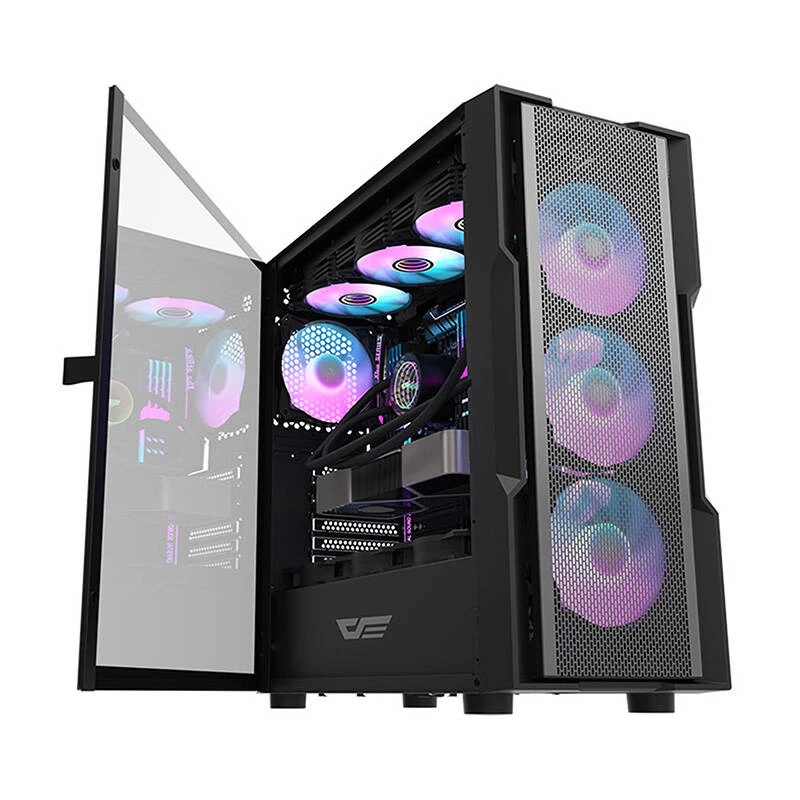

The case features a hinged tempered glass side panel with a silk handle for easy opening and component access, a front mesh panel with a PVC dust filter for improved intake airflow, and multiple mounting options for fans and radiators. Its layout supports long GPUs up to 400 mm and CPU coolers up to 160 mm, while the removable dust filter and practical cable grommet help maintain clean airflow and tidy cable routing.

Suitable for

• Gaming PC builds with high-performance GPUs
• Content creators and photographers needing multiple drives
• Enthusiast systems with custom air or liquid cooling
• Compact E-ATX/ATX/mATX workstation setups

Key specifications

• Brand: Darkflash
• Model: DK431 Mesh
• Color: Black
• Case type: Mid Tower
• Supported motherboards: E-ATX, ATX, M-ATX
• Side panel: Tempered glass (hinged)
• Front panel: Iron / ABS with mesh and PVC filter
• Dimensions: 470 x 205 x 485 mm
• Drive bays: HDD x2 / SSD x2
• Expansion slots: 7
• Max GPU length: 400 mm
• Max CPU cooler height: 160 mm
• Fan mounts: Front 3x120mm or 3x140mm; Top 3x120mm or 2x140mm; Rear 1x120mm (fans not included)
• Water cooling: Supports 360mm radiator front or top (note: right-side fans and front radiator cannot be used simultaneously)
• Front connectors: USB 3.0 x1, USB 2.0 x2, headphone output, microphone input, Power and Reset buttons
• Power supply location: Bottom-mounted

How to use

Install the motherboard according to its form factor and secure it to the standoffs. Mount storage drives in the designated HDD/SSD locations and route cables through the cable grommet to the PSU area. Use the hinged tempered glass side panel to access components during assembly and maintenance. Choose fan and radiator placements based on your cooling preference, noting the limitation on simultaneous right-side fans and front radiator installation.

Recommendations

For optimal airflow, install intake fans at the front and exhaust fans at the top/rear, keep the PVC dust filter clean, and verify GPU and cooler clearance before finalizing the build.
