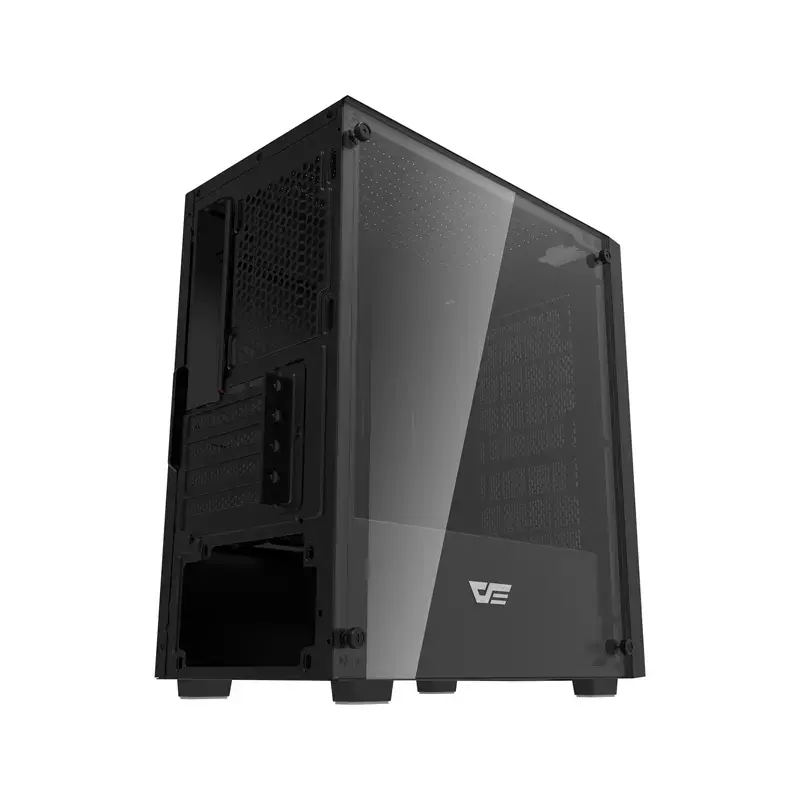

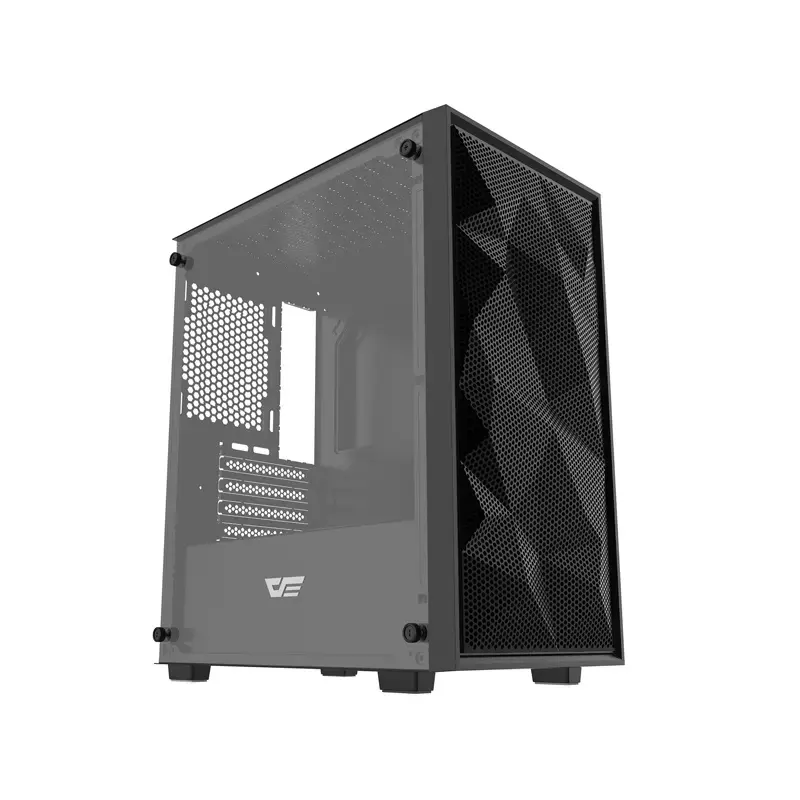

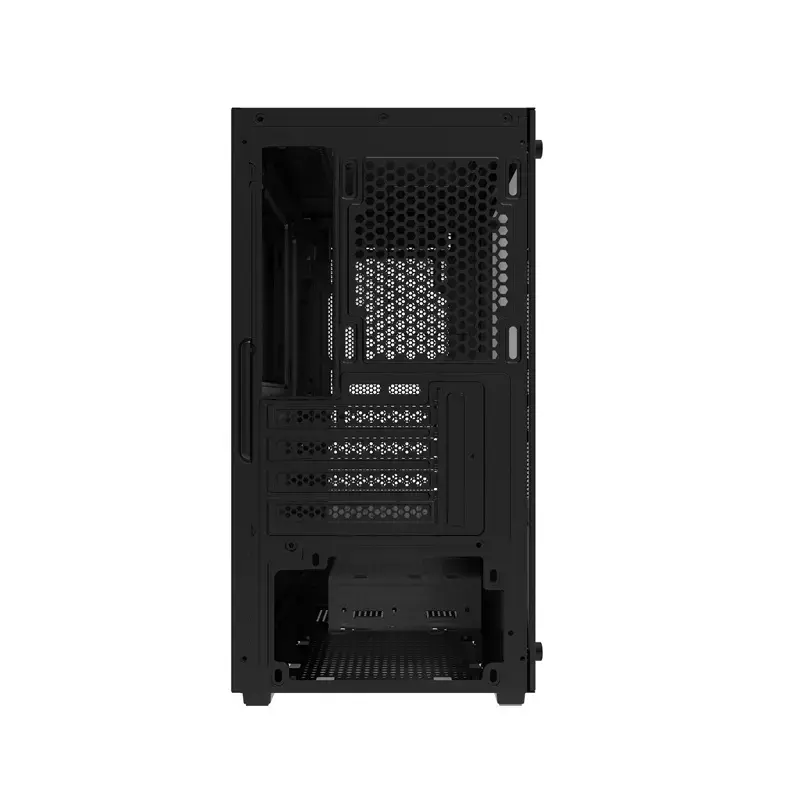

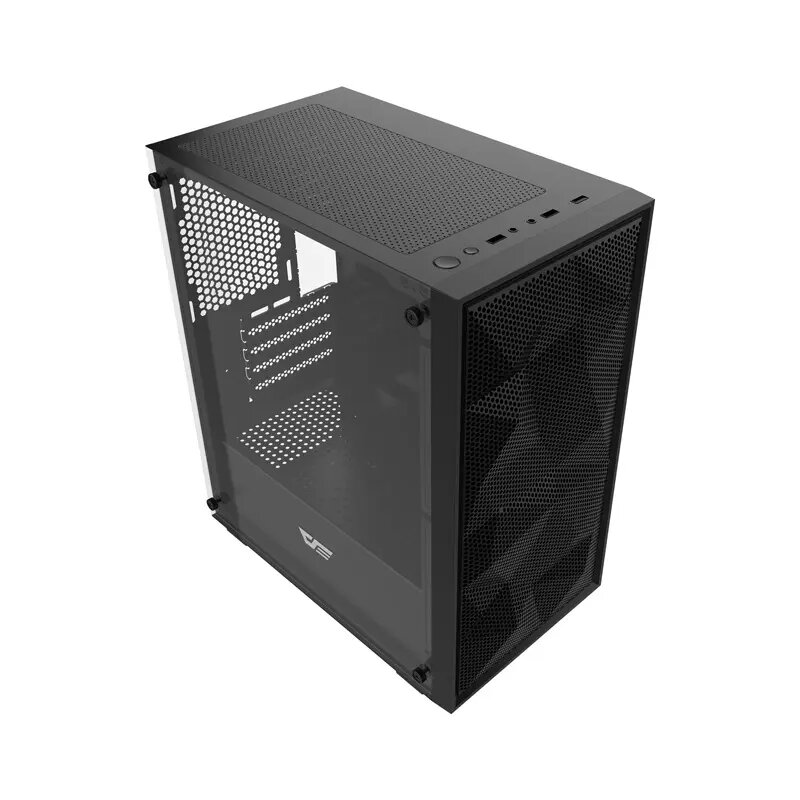

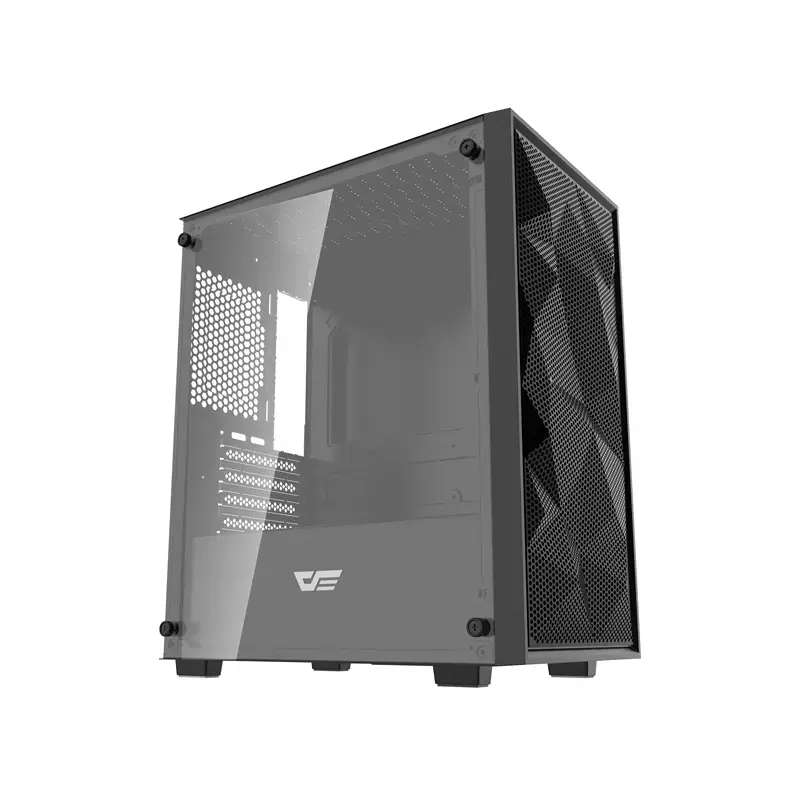

Computer case, Darkflash M305, ATX, Black

Darkflash M305 Mesh fanless computer case (Black)

Darkflash M305 Mesh is a compact M-ATX case that combines futuristic design with practical solutions. It offers a mesh front for better airflow, a tempered glass panel for easy access and presentation of components, the ability to mount as many as 7 fans, support for high-performance graphics cards and CPU (Central Processing Unit, processor) cooling, and a functional I/O panel with a USB 3.0 port (Universal Serial Bus, an interface used for powering and charging devices, as well as for data transfer). Thanks to its well-thought-out design and ample interior space, this model will be perfect for both modern gaming setups and PCs for everyday use.

Design and functionality

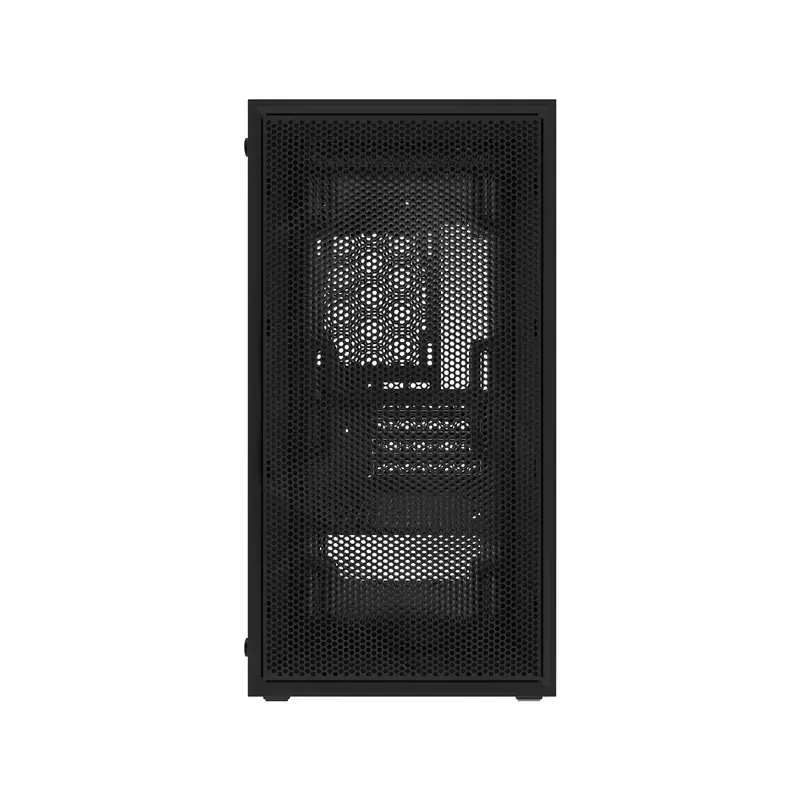

Darkflash M305 Mesh is an option for those who appreciate minimalist design, functionality and freedom in computer configuration. The front of the case has been made in an industrial style, with a full mesh panel, which first of all provides excellent airflow into the case, but also looks stylish. This solution is especially important for more demanding sets, where proper cooling directly affects the stability of hardware operation.

Efficient ventilation and free cooling

Although the M305 Mesh does not include pre-installed fans, its design has been prepared so that the user can independently select and install up to seven 120mm fans. Such flexibility gives you the opportunity to customize your cooling system - from a basic layout for an office PC to an elaborate gaming setup with advanced cooling. The mesh front not only improves air circulation, but also reduces heat buildup of components even under intense load.

Tempered glass for more style

A screw-mounted tempered glass side panel allows you to quickly access the computer's interior without the need for tools. This is especially convenient for frequent kit modifications. At the same time, the transparent panel is great for backlit components, allowing you to expose the computer's interior and create an aesthetically pleasing whole.

Compact size that does not limit the possibilities

The case supports M-ATX (Micro Advanced Technology eXtended, a motherboard format smaller than the standard ATX) and ITX (Information Technology eXtended, a very compact motherboard format) motherboards. Despite its small size (325 × 195 × 387 mm), its interior has been designed for maximum functionality. Inside there will be room for a CPU cooler up to 160 mm high and a graphics card up to 300 mm long. This allows it to accommodate most popular components without worrying about compatibility. The chassis also has room for two SSDs (Solid State Drive, a solid state drive) and two traditional HDDs (Hard Disk Drive, a classic hard drive), giving you plenty of room for storage expansion.

Functional I/O panel and modern connectors

The top of the chassis features a well-placed I/O panel with easy access to the most important ports. The presence of a USB 3.0 connector guarantees fast data transfer and convenient connection of external devices such as flash drives, portable drives or other accessories. The clear layout of the top panel simply makes it more convenient to use the computer on a daily basis.

Included

• motherboard screws x12
• hard drive screws x4
• power supply screws x6
• iron columns x2
• manual

How to use

Install a compatible M-ATX or ITX motherboard on the provided standoffs and secure it with the included screws. Mount the power supply at the bottom, paying attention to the maximum PSU length, then install storage drives in the dedicated 2.5" and 3.5" bays. Fit a CPU cooler no taller than 160 mm and a graphics card no longer than 300 mm. If additional cooling is required, choose up to seven 120 mm fans and mount them according to the case fan locations (side, front, rear, top). Connect front-panel cables to the motherboard using the labeled connectors and use the USB 3.0 port for high-speed peripherals.

Recommendations

For best thermal performance, combine a front intake fan configuration with top or rear exhaust fans to create a directed airflow path. Keep cable routing tidy behind the motherboard tray to improve airflow and ease maintenance. Verify component clearances (GPU length and cooler height) before finalizing the build.
