Raijintek Ophion M Evo TGS Micro-ATX Case, Tempered Glass - Black

Building a space-efficient PC often forces you to choose between compact dimensions and full-size component compatibility. The Raijintek Ophion M Evo TGS shatters that compromise. This Mini Tower case proudly supports Micro-ATX motherboards, long graphics cards, and even standard ATX power supplies, all within a sleek, minimalist footprint. With dual tempered glass panels and a brushed aluminum exterior, it's a showpiece that doesn't sacrifice practicality. Whether you're a gamer seeking a clean desk setup or a professional building a powerful workstation, this case delivers premium aesthetics, flexible hardware support, and thoughtful cooling options in a versatile package.

Who is it for

The Ophion M Evo TGS is ideal for PC enthusiasts and builders who value efficient use of space without cutting corners on capability. It's perfect for those who want a high-end system with a small footprint, supporting powerful GPUs and multiple drives. If you appreciate clear views of your hardware through tempered glass and demand the flexibility of an ATX PSU in a compact tower, this case is built for you.

Main features

• Dual tempered glass side panels to showcase your internal components in style.
• Compatible with Micro-ATX and Mini-ITX motherboards, offering broad build flexibility.
• Supports ATX power supplies up to 150 mm long, plus SFX and SFX-L options.
• Accommodates graphics cards up to 320 mm and CPU coolers up to 130 mm tall.
• Four expansion slots allow for multi-GPU setups or additional cards.
• Ample storage with three 2.5-inch bays and one 3.5-inch drive bay.
• Top and bottom radiator support for up to 280 mm cooling solutions.
• Dust filters on top and bottom keep the interior clean.

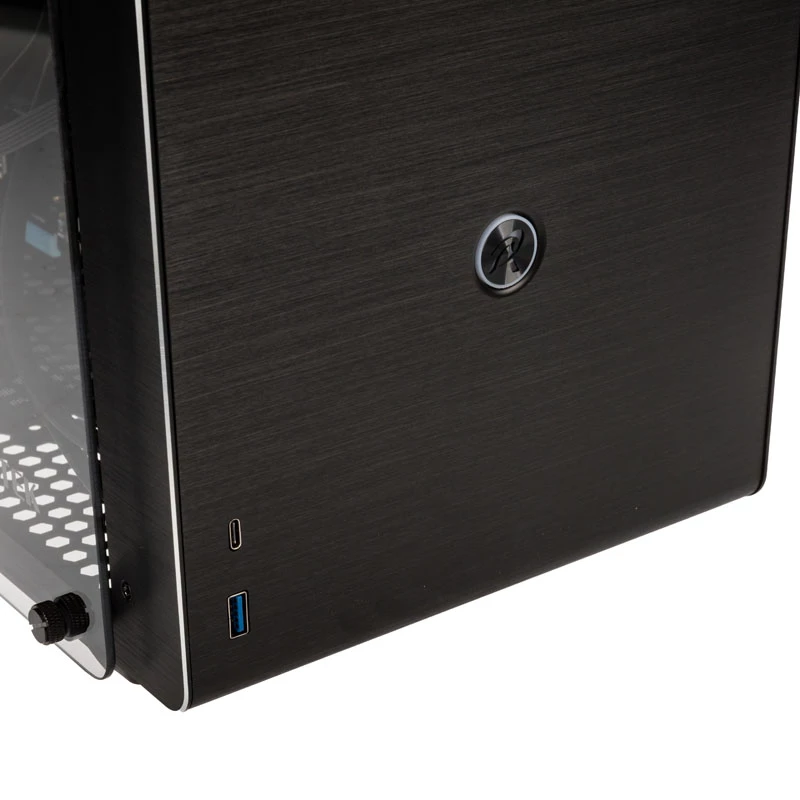

• Front I/O includes one USB 3.1 Type-C port, two USB 3.0 Type-A ports, and HD audio jacks.
• Aluminum exterior combined with a steel interior provides structural rigidity and a premium feel.

Specifications

• Colour: Black
• Form Factor: Mini Tower / Small Form Factor
• Motherboard Support: Micro-ATX, Mini-ITX
• Material: Aluminum, Steel, Tempered Glass
• Side Window: Yes (Dual Tempered Glass)
• Expansion Slots: 4
• 3.5-inch Drive Bays: 1
• 2.5-inch Drive Bays: 3
• Front I/O: 2x USB 3.0, 1x USB 3.1 Type-C, HD Audio (mic/headphone)
• Max GPU Length: 320 mm
• Max CPU Cooler Height: 130 mm
• Max PSU Length: 150 mm (ATX), SFX, SFX-L
• Fan Support Top: 2x 120 mm / 2x 140 mm
• Fan Support Bottom: 2x 120 mm / 2x 140 mm
• Radiator Support Top/Bottom: Up to 280 mm
• Dust Filters: Top, Bottom
• Cable Management: Yes

Tips

When building in the Ophion M Evo TGS, pay close attention to your PSU length—ATX units up to 150 mm fit, but shorter ones simplify cable routing. Choose a graphics card within 320 mm and a CPU cooler below 130 mm for guaranteed clearance. Use the bottom fan mounts to improve airflow, and take advantage of the dust filters to keep your system clean without compromising performance.
