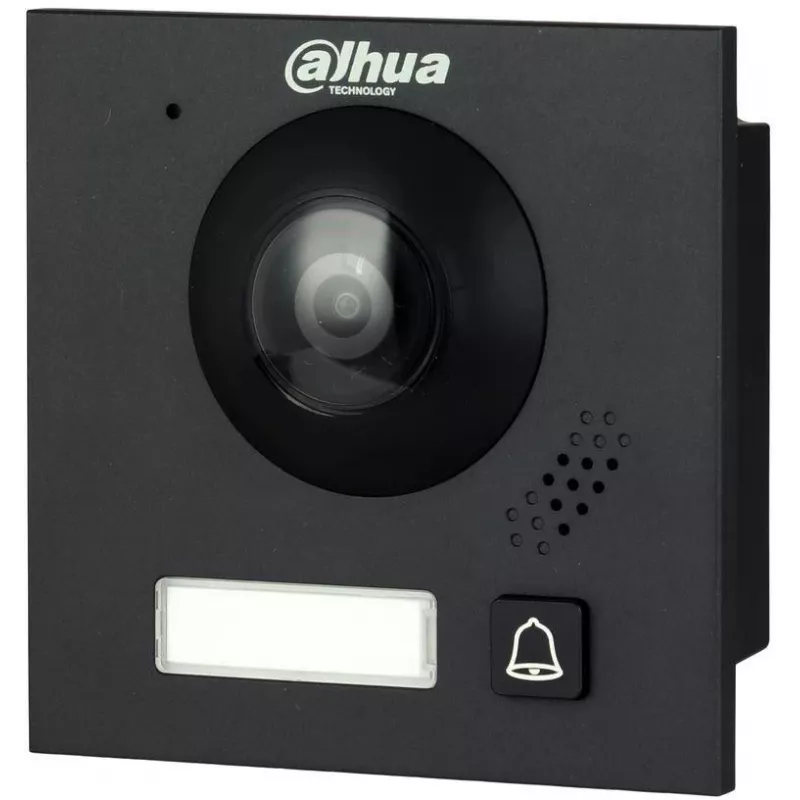

Dahua VTO4201FB-P 2MP IP Camera Module for Modular Intercom System

The Dahua VTO4201FB-P is a high-performance 2MP IP camera module designed for the VTO4201F Series modular intercom system. This module delivers crisp 1080P video with a 160° wide-angle lens, ensuring comprehensive surveillance at entrances. With 120dB True WDR, it handles challenging backlight conditions, while the built-in microphone and speaker enable two-way audio communication. The module supports Power over Ethernet (PoE) for easy installation and is rated IP65 and IK07 for weather and vandal resistance.

Advantages

This camera module offers exceptional image quality with 2MP resolution and 120dB WDR, making it ideal for door stations and access points. Its modular design allows flexible integration into Dahua intercom systems, and PoE simplifies cabling. The robust aluminum alloy housing ensures durability in outdoor environments.

Suitable for

• Residential and commercial building entrance intercom systems
• Access control integration with Dahua VTO4201F series
• Outdoor surveillance requiring wide-angle coverage
• Two-way audio communication at entry points

Key specifications

• Sensor: 2MP CMOS
• Resolution: 1920 x 1080 (1080P)
• Lens: 1.95mm fixed focal, 160° HFOV
• WDR: 120dB True WDR
• Video Compression: H.264
• Audio: Built-in microphone and speaker
• Network: 10/100 Mbps Ethernet, PoE (802.3af)
• Power: 12V DC or PoE, max 3W
• Protection: IP65, IK07
• Material: Aluminum alloy
• Operating Temperature: -30°C to +60°C

Recommendations

For a complete intercom solution, pair this module with a compatible Dahua VTO4201F frame and indoor monitor. Ensure proper mounting for optimal field of view and weather sealing.
