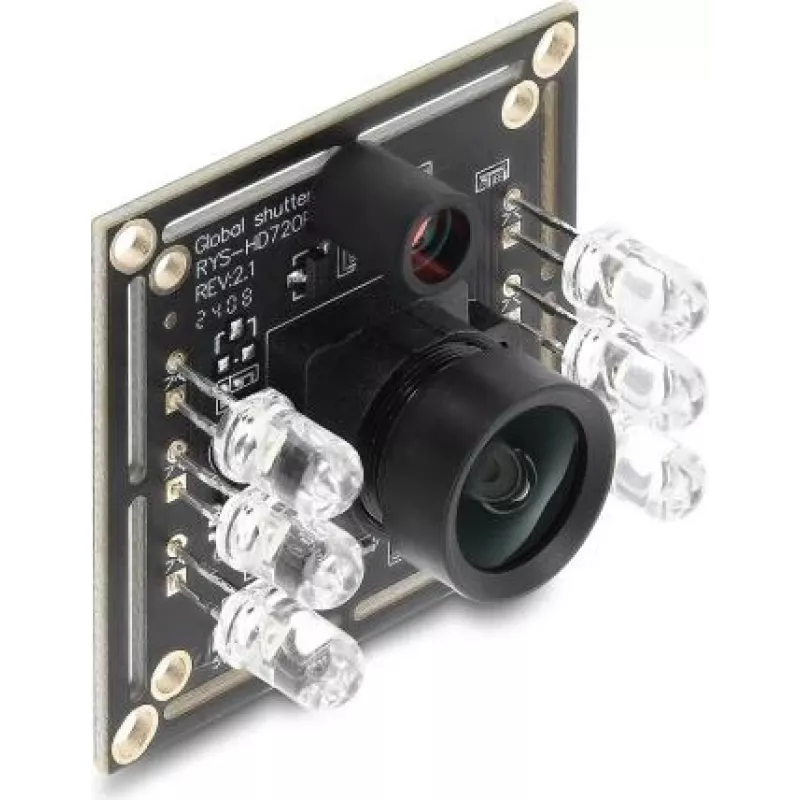

Delock USB 2.0 Camera Module with Global Shutter Monochrome 0.92 MP 65° 6 LED V6 Fixed Focus (96410)

Unlike typical rolling shutter modules that distort fast-moving subjects, this Delock camera module employs a global shutter sensor—every pixel is exposed simultaneously, eliminating motion artifacts in industrial inspection, barcode reading, and robotics. The monochrome OV9281 sensor delivers crisp 1280 x 720 images at up to 60 fps, while six 850 nm IR LEDs enable clear vision even in complete darkness. With UVC compliance, it works plug-and-play on Windows, Linux, and macOS without driver installation.

Highlights

• Global shutter CMOS sensor for distortion-free capture of moving objects
• Monochrome 0.92 MP resolution (1280 x 720) at 60 fps
• 65° diagonal field of view with fixed focus (V6)
• 6 infrared LEDs (850 nm) for night vision up to several meters
• USB 2.0 interface with 1.5 m cable, UVC compliant
• Compact plastic housing with two M2 mounting holes

In daily use

Mount the module using the integrated M2 screw holes and connect it to any USB 2.0 port—no external power supply needed. The fixed focus lens is pre-set for typical working distances, and the global shutter ensures sharp images of fast conveyor belts, rotating parts, or quick barcode scans. In low-light environments, the IR LEDs automatically illuminate the scene (depending on ambient light), producing high-contrast monochrome video. The 1.5 m cable provides flexibility in positioning, and the UVC standard guarantees compatibility with common machine vision software and video conferencing apps.

Full specifications

• Sensor: OmniVision OV9281, 1/4 inch optical format, pixel size 3 µm x 3 µm
• Resolution: 0.92 Megapixel (1280 x 720)
• Color output: Monochrome (black & white)
• Frame rate: up to 60 fps at full resolution
• Field of view: 65° diagonal
• Focus: Fixed focus (V6)
• Illumination: 6x infrared LEDs, wavelength 850 nm
• Minimum illumination: 0.01 Lux (without IR LEDs)
• Interface: USB 2.0 Type-A, cable length 1.5 m
• UVC compliant: Yes
• Power supply: USB bus power (5V)
• Housing material: Plastic
• Mounting: 2x M2 screw holes
• Operating system support: Windows, Linux, macOS

Final note

For applications that demand precise, motion-blur-free imaging in monochrome—such as OCR, pick-and-place robots, or security in total darkness—this Delock module offers a reliable, driver-free solution that integrates seamlessly into existing USB-based systems.
