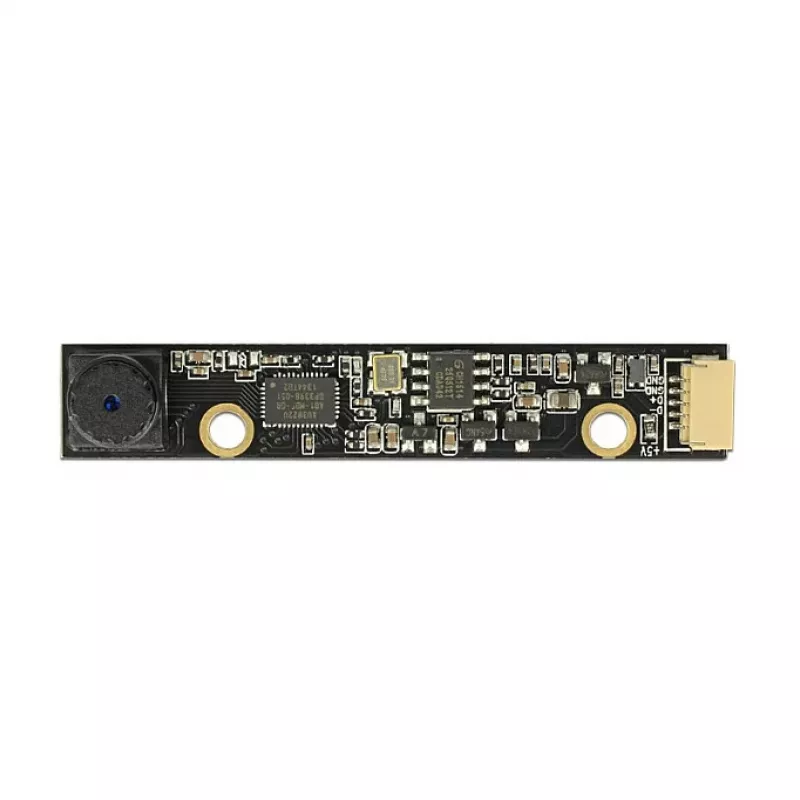

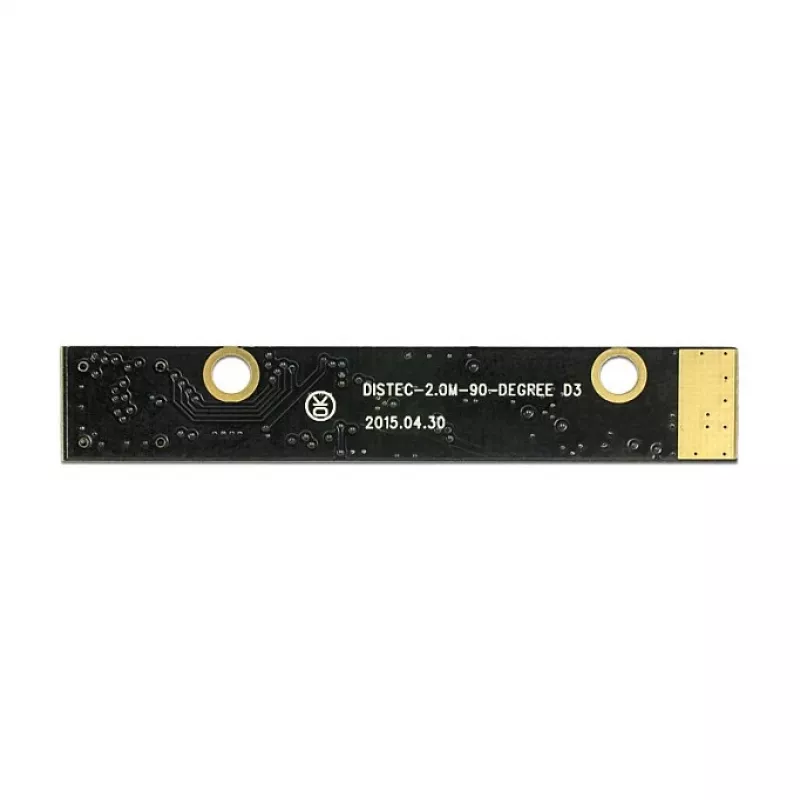

Camera DeLOCK 96366 development board accessory

The Delock USB 2.0 camera module is a compact, low-power imaging accessory designed for integration into devices and development boards. It delivers a resolution of 1280 x 720 pixels at 30 fps and uses a back side illumination (BSI) photosensitive sensor to improve low-light performance. The camera is compatible with a wide range of systems and requires minimal processor resources for basic operation.

Advantages

The module combines a small form factor (8 mm × 60 mm × 6.3 mm) with high resolution and low power consumption, making it suitable for embedded applications. Its USB 2.0 interface ensures broad compatibility, while the BSI sensor increases sensitivity in dim lighting. The camera can be integrated into various devices and development projects as an accessory component.

Suitable for

Key specifications

How to use

Connect the camera to a host system via a USB 2.0 port. Install required drivers or allow the operating system to detect and configure the device. Use compatible capture or development software on a supported Windows 7 system or other compatible OS to access the video stream at 1280 × 720, 30 fps. Secure the module within the target device or board using appropriate mounting methods for your project.

Recommendations

For reliable operation, use a stable USB 2.0 connection and ensure the host system meets the minimum processor requirement (Pentium 4 or equivalent). Keep the module in a protected location to avoid mechanical stress and provide adequate lighting for best image quality despite the BSI sensor’s improved low-light performance.
