Dahua CHS4110-8ET-110 Industrial Unmanaged PoE++ Switch, 8 PoE Ports + 2 Gigabit Uplink, 110W, DIN Rail

The Dahua CHS4110-8ET-110 is a robust industrial unmanaged PoE++ switch designed for reliable power and data transmission in harsh environments. With 8 PoE ports (10/100 Mbps) and 2 Gigabit uplink ports, it delivers a total PoE budget of 110W, supporting IEEE 802.3af/at/bt standards with up to 90W per port. Ideal for IP cameras, wireless access points, and IoT devices, this switch offers a wide operating temperature range (-40°C to +75°C) and surge protection up to 6KV, making it perfect for outdoor and industrial installations.

Advantages

High power output per port (90W) enables support for high-power devices such as PTZ cameras and Wi-Fi 6 access points. The industrial-grade design ensures stable operation in extreme temperatures and environments with high humidity. DIN rail and wall mount options provide flexible installation. Unmanaged plug-and-play operation reduces deployment complexity.

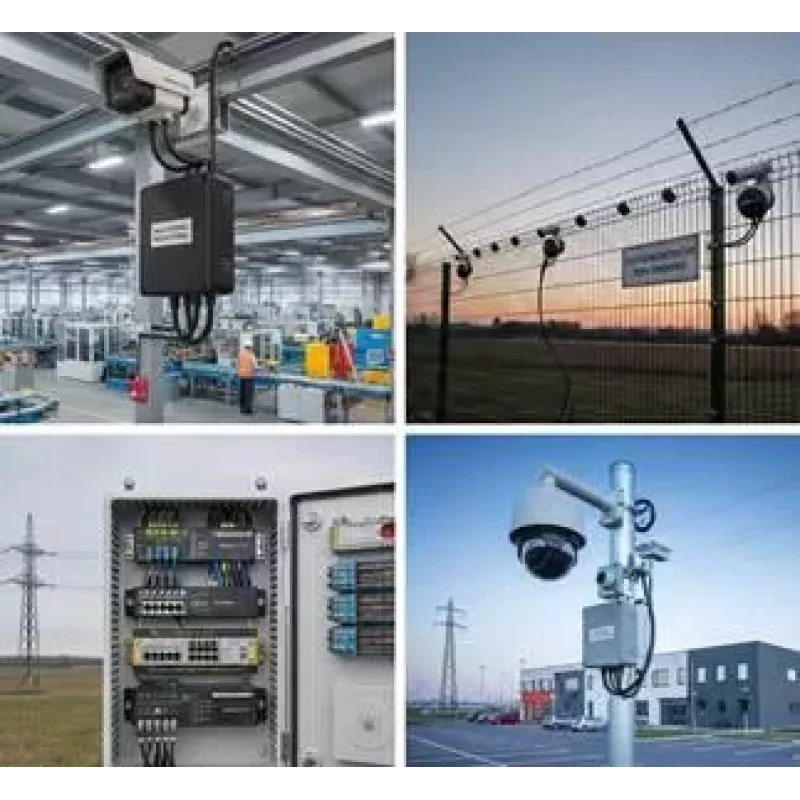

Suitable for

• Industrial automation networks
• IP surveillance systems
• Wireless access point deployments
• Smart city infrastructure
• Transportation and utility monitoring

Key specifications

• 10 Ethernet ports: 8 PoE (10/100 Mbps) + 2 Gigabit uplink (10/100/1000 Mbps)
• PoE standard: IEEE 802.3af/at/bt, total budget 110W, up to 90W per port
• Switching capacity: 5.6 Gbps, packet forwarding rate: 4.166 Mpps
• MAC address table: 8K, jumbo frame support: 10K
• Power input: DC 48V–57V
• Operating temperature: -40°C to +75°C, storage: -40°C to +85°C
• Humidity: 5%–95% non-condensing
• Surge protection: 6KV
• Mounting: DIN rail, wall mount

Recommendations

For optimal performance, use a regulated DC power supply (48-57V) with sufficient current capacity. Ensure proper grounding and surge protection for outdoor installations. This switch is ideal for edge deployments where reliability and high PoE output are critical.
