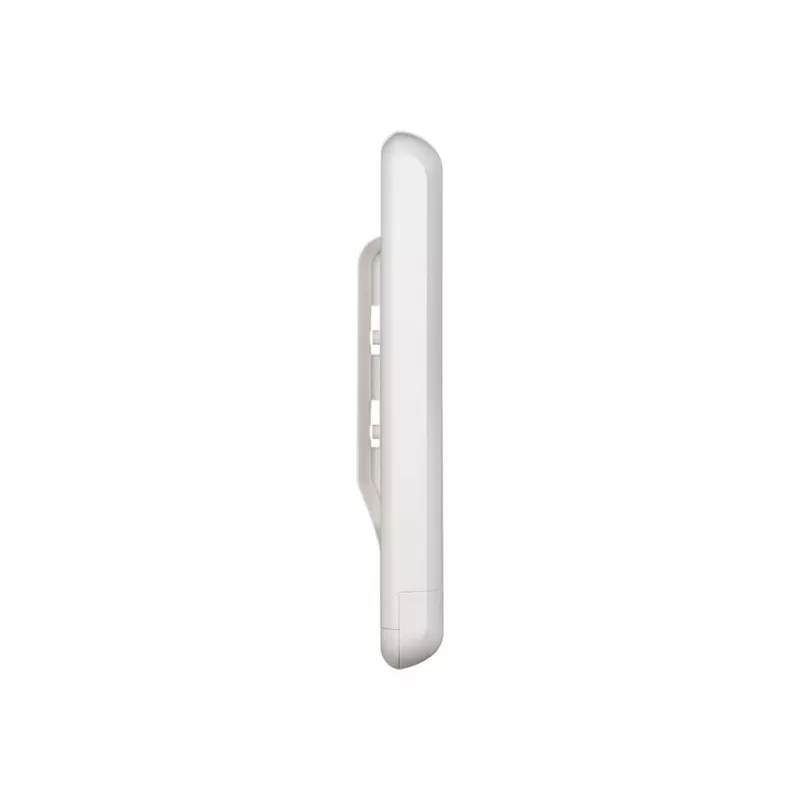

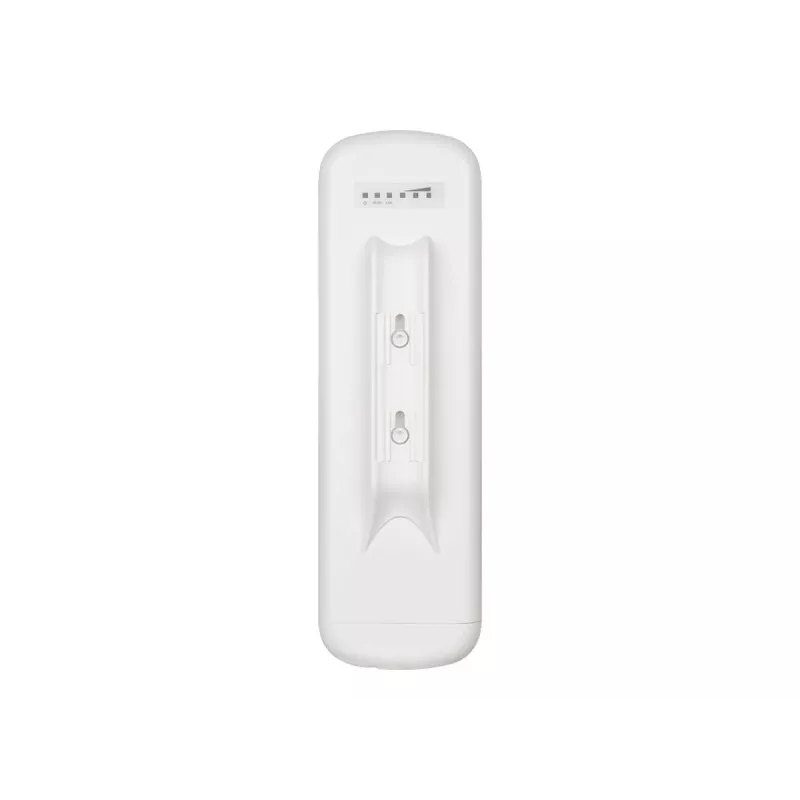

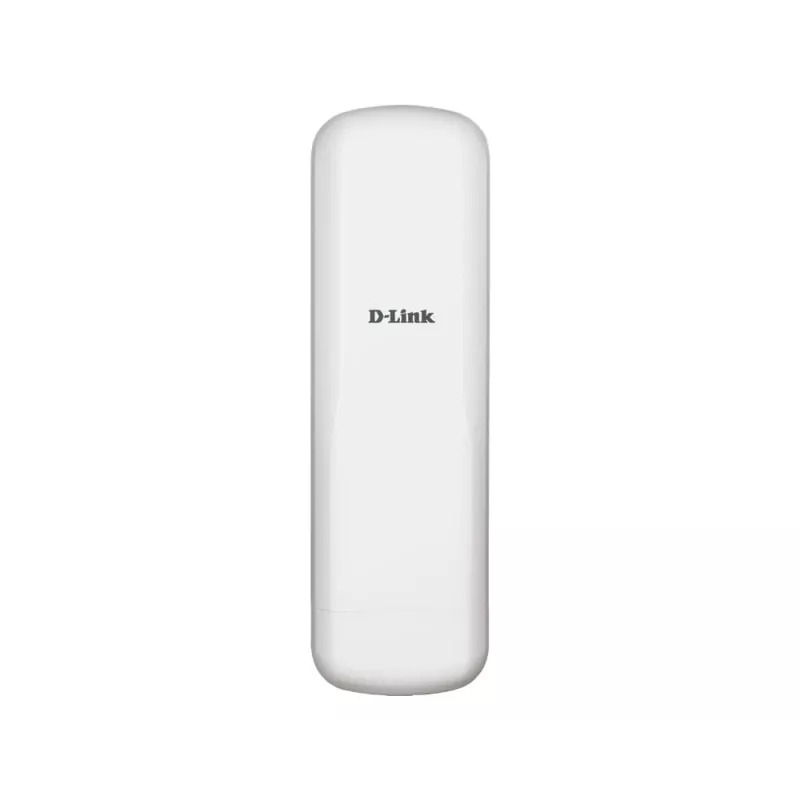

D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White

D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
D-Link 5km Long Range Wireless AC Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
R5,334
HighlightsThe DAP-3711 is the essential solution in providing connectivity to previously believed impossible-to-reach areas. Industry leading core technologies, especially designed for long distance coverage, bring high-speed connectivity to rural areas and challenging terrain equivalent to that of ... Read More
Stock Out Of StockNo Stock Code 343825 Brand D-LINK Model DAP-3711 Warranty 2 Years

Shipping & Returns

Highlights
The DAP-3711 is the essential solution in providing connectivity to previously believed impossible-to-reach areas. Industry leading core technologies, especially designed for long distance coverage, bring high-speed connectivity to rural areas and challenging terrain equivalent to that of a wired connection.

TDMA Technology Cuts Through the Chatter, Creating Even Stabler Coverage
The DAP-3711 transmission capability is augmented thanks to its integrated Time Division Multiple Access (TDMA). Everything works more efficiently on a schedule, and the DAP-3711 is no different: TDMA creates a schedule for multiple connected clients to work to. Senders and receivers get their own time slot for transmissions. This eliminates hidden node data collisions, in turn maximizing airtime efficiency, significantly cutting down interference and making for a highly scalable solution.

Form Without Sacrificing Function
It can be hard to look good while still being functional. Yet the DAP-3711 strikes the balance just right. The smooth case in crisp white makes for a low-key form that can effortlessly fit any outdoor setting without drawing attention.

Being as functional as it is well-formed, it champions an IP66 rating, fighting dust and repelling water, all while maintaining its unassuming looks.

Cutting Edge Hardware Makes the Previously Impossible, Possible
The DAP-3711 features state-of-the-art hardware, including a high-gain 15 dBi directional antennas. This powerful antenna effortlessly extends high-speed coverage to distances of up to 5 km away.

Discreet Deployment that’s Hassle-Free with Power Over Ethernet (PoE)
Power sockets can be tricky to come by, especially in outdoor deployments. But PoE makes for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.

D-Link 5km Long Range Wireless AC Bridge. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 5000 m. Antenna design: Internal, Antenna gain level (max): 15 dBi. Wi-Fi band: Single-band (5 GHz), WLAN data transfer rate (max): 867 Mbit/s, Frequency band: 5.180 - 5.825 GHz. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. Connectivity technology: Wired & Wireless

Key Highlights
  • Features high-gain 15 dBi directional antenna supplying high-speed, stable coverage to up to 5 km away
  • Integrated TDMA Technology cuts through interference to ensure high-speed, consistent coverage
  • Superior throughput with single-band transfer speeds of up to 867 Mbps
  • Refined design effortlessly blends into any setting
  • Supports WPA2™ - Wi-Fi security for more protection
  • Support for Power over Ethernet means less wires, for cleaner and easier deployment
  • Features an IP66 rating, boasting water-resistant and dust-tight housings
  • Network bridge 867 Mbit/s 5000 m
  • Wi-Fi Single-band (5 GHz)
  • Ethernet LAN Gigabit Ethernet
  • Acrylonitrile butadiene styrene (ABS) IP66
  • Antenna design: Internal 15 dBi
  • White
Specifications
Antenna design
Internal
Antenna gain level (max)
15 dBi
Cabling technology
10/100/1000Base-T(X)
Certification
CE, FCC
Channels quantity
2 channels
Connectivity technology
Wired & Wireless
Depth
45 mm
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
100,1000 Mbit/s
Ethernet LAN interface type
Gigabit Ethernet
Frequency band
5.180 - 5.825 GHz
Harmonized System (HS) code
85176990
Height
88 mm
International Protection (IP) code
IP66
LED indicators
LAN, Power, Signal strength, WLAN
MAC address filtering
Yes
Material
Acrylonitrile butadiene styrene (ABS)
Maximum data transfer rate
867 Mbit/s
Maximum transfer distance
5000 m
Mounting type
Pole
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Operating relative humidity (H-H)
0 - 90%
Operating temperature (T-T)
-40 - 65 °C
Power consumption (typical)
15 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) voltage
24 V
Power source type
PoE
Product colour
White
Product type
Network bridge
Quantity per pack
1 pc(s)
Reset button
Yes
Security algorithms
128-bit AES
Signal strength
27 dBm
Storage relative humidity (H-H)
0 - 90%
Storage temperature (T-T)
-40 - 85 °C
Surge protection
Yes
Web-based management
Yes
Weight
600 g
Wi-Fi
Yes
Wi-Fi band
Single-band (5 GHz)
Width
288 mm
Wireless Distribution System (WDS) bridge
Yes
WLAN data transfer rate (max)
867 Mbit/s
