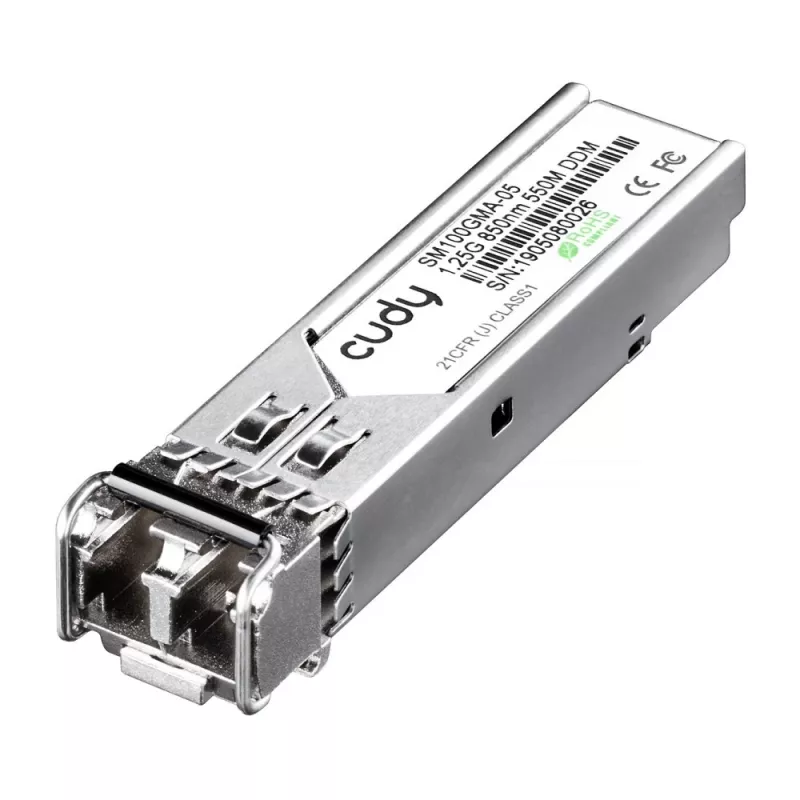

CUDY SM100GMA-05 SFP Module 1.25Gb/s 850nm Multi-mode 0.5km

The CUDY SM100GMA-05 is a high-performance SFP transceiver module designed for reliable data transmission over multi-mode fiber. Operating at 1.25 Gbps with a wavelength of 850 nm, it supports distances up to 550 meters (0.5 km) and features a VCSEL laser for efficient performance. This hot-pluggable module is ideal for Gigabit Ethernet and Fibre Channel applications in data centers and enterprise networks.

Advantages

This SFP module offers low power consumption, high reliability, and easy installation. Its compact form factor allows for high port density, and it supports Digital Diagnostic Monitoring (DDM) for real-time performance monitoring. The module is MSA compliant and compatible with a wide range of networking equipment.

Suitable for

• Gigabit Ethernet (1000BASE-SX) networks
• Fibre Channel (1.25 Gbps) storage area networks
• Data center interconnects
• Enterprise LAN and campus networks

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 850 nm
• Fiber Type: Multi-mode (MMF)
• Max Reach: 550 m (0.5 km)
• Connector Type: LC duplex
• Laser Type: VCSEL
• DDM/DOM Support: Yes
• Operating Temperature: 0 to 70°C
• Power Consumption: < 1 W
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, use with OM3 or OM4 multi-mode fiber cables. Ensure the host device supports SFP MSA standards. This module is a cost-effective solution for short-range high-speed connections.
