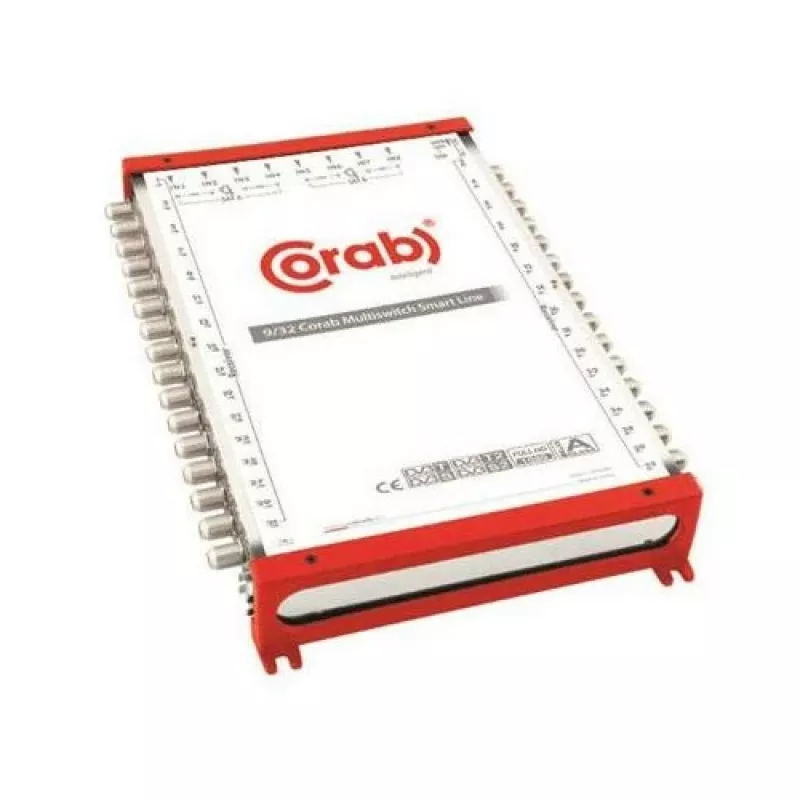

CORAB Multiswitch Smart Line 9/32

The CORAB Multiswitch Smart Line 9/32 is a high-performance multiswitch designed for distributing satellite and terrestrial signals to up to 32 subscribers. Ideal for residential and commercial installations, it combines 8 satellite inputs and 1 terrestrial input with passive satellite and active terrestrial paths, ensuring reliable signal distribution.

Advantages

This multiswitch offers exceptional signal isolation (>30 dB between satellite inputs) and supports DiSEqC 2.0 protocol for advanced switching. The terrestrial path provides gain of 15-20 dB, compensating for signal losses. With an external 20V DC power supply included, installation is straightforward.

Suitable for

• Multi-dwelling units (MDUs)
• Hotels and hospitality
• Commercial buildings requiring multiple TV outlets
• Satellite TV distribution systems

Key specifications

• Satellite Inputs: 8
• Terrestrial Inputs: 1
• Subscriber Outputs: 32
• Satellite Frequency Range: 950-2150 MHz
• Terrestrial Frequency Range: 47-862 MHz
• Satellite Path Type: Passive
• Terrestrial Path Type: Active
• Satellite Path Loss: 0 to -3 dB
• Terrestrial Path Gain: 15-20 dB
• LNB Power Supply: 18V DC, max 500 mA
• Switching Protocol: 13/18V, 0/22kHz, DiSEqC 2.0
• Connectors: F-type (input/output)
• External Power Supply: 20V DC, 2A (included)
• Isolation (SAT-SAT): >30 dB
• Isolation (TER-SAT): >30 dB
• Operating Temperature: -20°C to +50°C

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. Compatible with DiSEqC 1.0/2.0 controllers.
