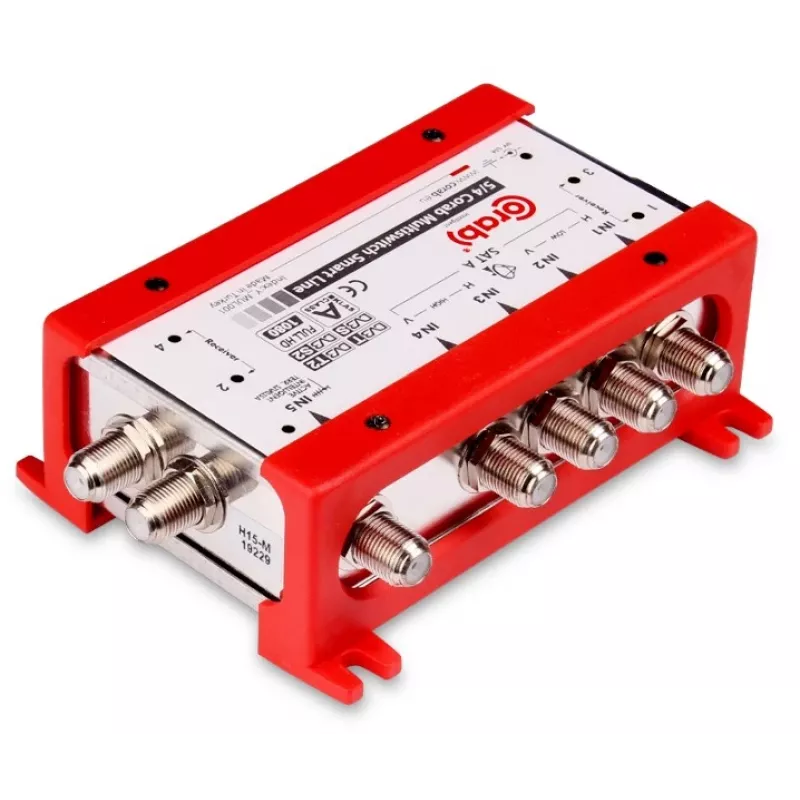

Multiswitch Smart Line 5/4 Corab

The CORAB MULTISWITCH SMART LINE 5/4 is a high-performance multiswitch designed for distributing satellite and terrestrial signals to multiple subscribers. Ideal for single-cable installations, it supports up to 4 satellite inputs and 1 terrestrial input, providing 4 subscriber outputs. This unit ensures reliable signal distribution with low insertion loss and high isolation between ports.

Advantages

Compact and robust zinc die-cast housing with nickel plating ensures durability and effective shielding. The multiswitch supports DiSEqC 2.0 control and is powered directly from connected receivers, simplifying installation. With typical input losses of only 2 dB and isolation exceeding 25 dB, signal integrity is maintained across all outputs.

Suitable for

• Single-cable satellite and terrestrial TV distribution in residential or small commercial buildings
• Systems requiring up to 4 subscriber connections from multiple satellite positions and terrestrial antenna
• Indoor installations where space is limited

Key specifications

• Inputs: 4x Satellite (SAT), 1x Terrestrial (TER)
• Outputs: 4x Subscriber
• Satellite frequency range: 950 - 2150 MHz
• Terrestrial frequency range: 47 - 862 MHz
• Satellite input loss: 2 dB (typical)
• Terrestrial input loss: 2 dB (typical)
• SAT-SAT isolation: >25 dB
• SAT-TER isolation: >25 dB
• TER-SAT isolation: >25 dB
• Switching control: 13/18V, 0/22kHz, DiSEqC 2.0 (compatible with 1.0)
• LNB power supply: Powered by connected receivers (max 500mA)
• Connector type: F-type
• Housing material: Zinc die-cast, nickel plated
• Installation environment: Indoor

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This multiswitch is compatible with most satellite receivers supporting DiSEqC control. Suitable for single-cable systems where each subscriber requires access to multiple satellite positions.
