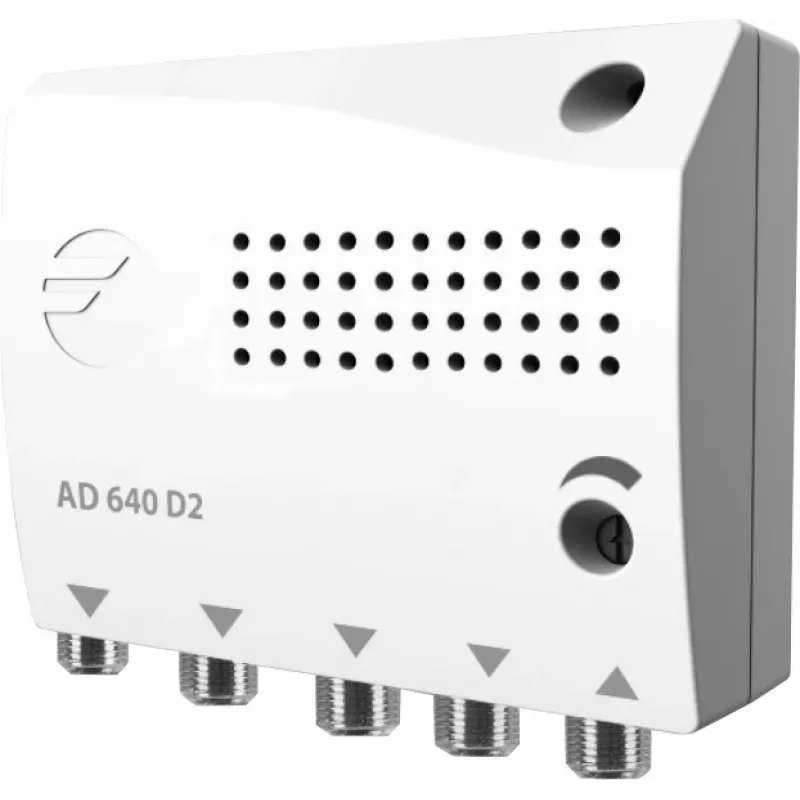

CORAB Antenna Amplifier FAGOR AD640 1 Input 4 Outputs

The CORAB Antenna Amplifier FAGOR AD640 is a high-performance indoor distribution amplifier designed to boost TV signals from a single antenna to up to four separate devices. With its compact design and reliable F-connector inputs and outputs, it ensures optimal signal strength and quality for your home entertainment system.

Advantages

This amplifier provides a clean, amplified signal with low noise figure, ensuring minimal interference and maximum picture quality. Its built-in LTE filtering (790 MHz) protects against mobile network interference, while the fixed gain settings (16 dB VHF, 20 dB UHF) deliver consistent performance without the need for adjustment.

Suitable for

• Home TV distribution systems requiring one input and up to four outputs
• Indoor use with standard 75 Ohm coaxial cables
• Users needing reliable signal amplification for VHF and UHF bands

Key specifications

• Inputs: 1 x TV (F-connector)
• Outputs: 4 x TV (F-connector)
• Frequency Range: VHF 47-230 MHz, UHF 470-790 MHz
• Gain: 16 dB (VHF), 20 dB (UHF)
• Noise Figure: < 4 dB
• Maximum Output Level: 100 dBµV
• Impedance: 75 Ohm
• Power Supply: 230V AC, 50/60 Hz
• Power Consumption: 3 W
• LTE Filtering: Yes (790 MHz)
• Isolation Between Outputs: > 15 dB
• Return Loss: > 10 dB
• Application Environment: Indoor
• Adjustable Gain: No (Fixed Gain)

Recommendations

For best performance, use high-quality 75 Ohm coaxial cables and ensure all connections are tight. This amplifier is ideal for homes with multiple TVs or devices requiring a strong, clean signal from a single antenna.
