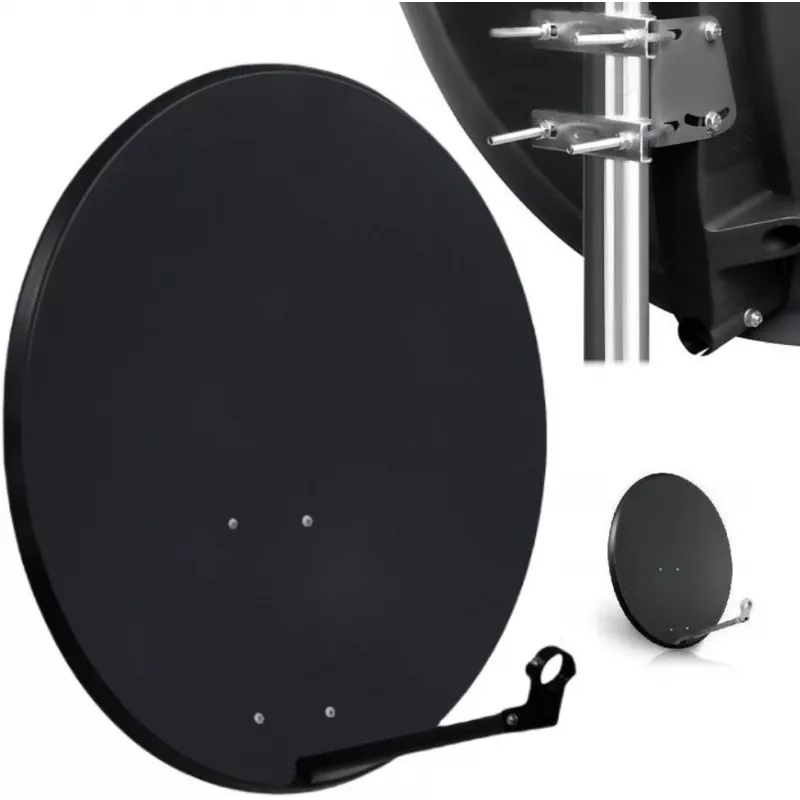

CORAB COR-800SAE-C 80 cm Offset Satellite Dish, Anthracite

The CORAB COR-800SAE-C is a high-quality 80 cm offset satellite dish designed for reliable Ku-band reception. Manufactured from galvanized steel with a durable powder-coated finish in anthracite (dark grey), this dish offers excellent corrosion resistance and long-lasting performance. Ideal for both residential and commercial installations, it provides high gain and stable signal reception even in challenging weather conditions.

Advantages

Robust construction with galvanized steel and powder coating ensures durability and resistance to rust. The offset design minimizes snow and ice accumulation, while the wide elevation adjustment range allows for precise alignment. Compatible with standard pole mounts (32-60 mm diameter), it is easy to install and suitable for various locations.

Suitable for

• Satellite TV reception (Ku-band)
• Residential and small commercial installations
• Areas with moderate wind loads (operational up to 120 km/h)

Key specifications

• Reflector Diameter: 80 cm
• Material: Galvanized Steel, Powder Coated
• Colour: Anthracite (Dark Grey)
• Frequency Range: 10.7 - 12.75 GHz (Ku-band)
• Gain: 38.5 - 40.5 dB
• Offset Angle: 26 degrees
• F/D Ratio: 0.6
• LNB Holder Diameter: 40 mm
• Elevation Adjustment: 10 - 80 degrees
• Wind Load (Operational): 120 km/h
• Wind Load (Survival): 150 km/h
• Mounting: Pole Mount (32-60 mm pole)
• Operating Temperature: -40°C to +60°C

Recommendations

For optimal performance, pair this dish with a high-quality LNB and ensure proper alignment. Regular maintenance of the mounting hardware is recommended to maintain stability.
