EDBAK ULS2500 Universal LED System for 2 cabinets 500mm | Black

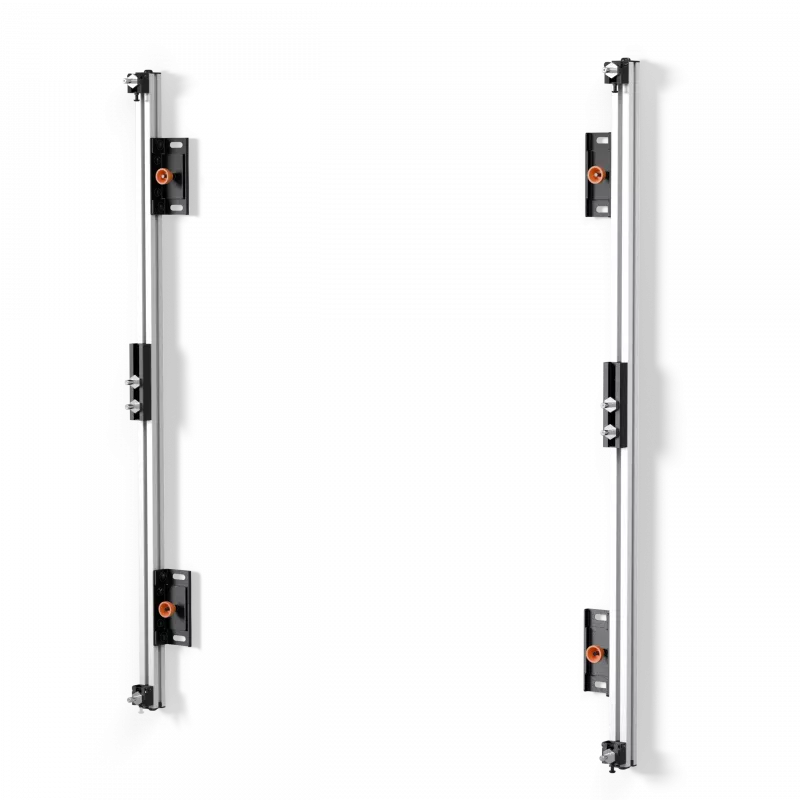

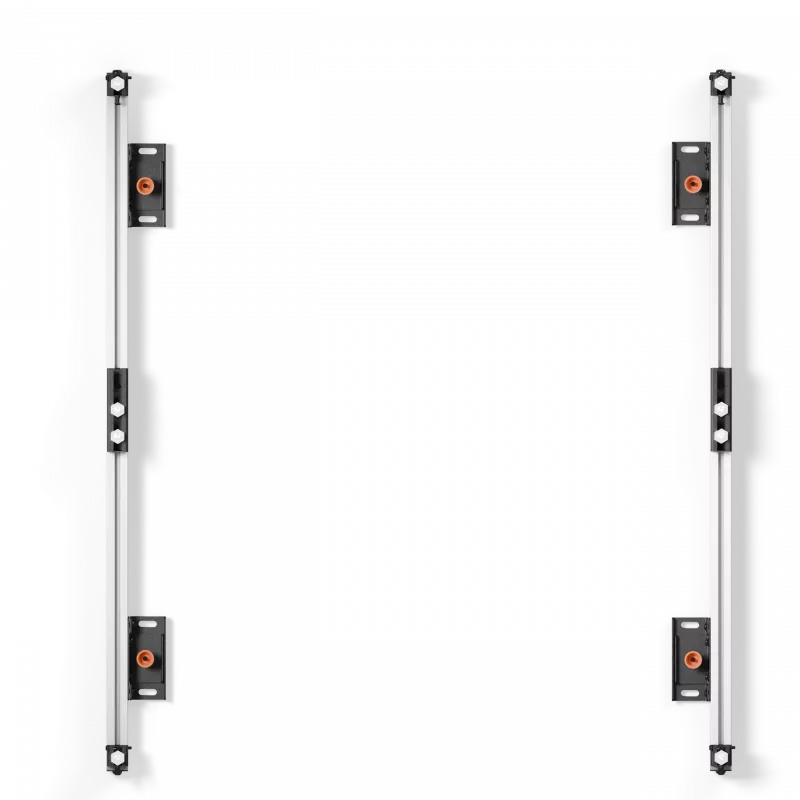

The EDBAK ULS2500 Universal LED System is a high-grade steel wall mount designed for securely installing two LED cabinets with a width of 500 mm each, supporting a total display width of up to 1000 mm. This modular system offers 6-axis micro-adjustment (X, Y, Z, Roll, Pitch, Yaw) and depth adjustment up to 20 mm, ensuring precise alignment for professional indoor LED video walls. With a load capacity of 50 kg and integrated cable management, it provides a clean and reliable mounting solution.

Advantages

Easy assembly and modular design reduce installation time. The powder-coated black finish offers durability and a sleek appearance. Integrated cable management keeps cables organized and out of sight.

Suitable for

• Fixed indoor LED video walls
• Universal LED cabinets with compatible mounting points
• Professional AV installations requiring precise alignment

Key specifications

• System Type: Universal LED Display Mounting System
• Supported LED Cabinet Count: 2
• Supported LED Cabinet Width: 500 mm
• Maximum Total Display Width: 1000 mm
• Mounting Orientation: Horizontal
• Mounting Type: Wall Mount
• Material: High-grade Steel
• Color: Black
• Load Capacity: 50 kg
• Depth Adjustment: Yes, up to 20 mm
• Micro-adjustment: 6-axis (X, Y, Z, Roll, Pitch, Yaw)
• Installation: Modular, Easy Assembly
• Cable Management: Integrated
• Finish: Powder Coated
• Application: Fixed Indoor LED Video Walls
• Compatibility: Universal for LED cabinets with compatible mounting points
• System Depth from Wall: 50 - 70 mm (adjustable)
• Rail Length: 1000 mm

Recommendations

For optimal performance, ensure that the LED cabinets have compatible mounting points and that the wall can support the total weight. Professional installation is recommended.
