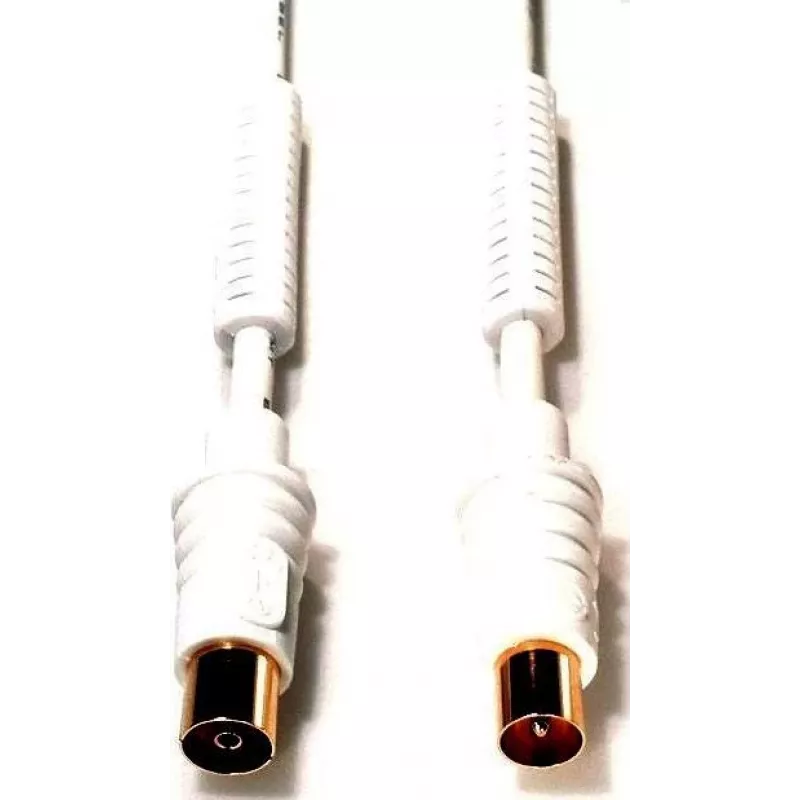

Coaxial Cable e+p AB 202 G 2.5 m

The e+p AB 202 G 2.5 m coaxial cable is a double-shielded 75 Ω connection lead with gold-plated contacts and ferrite cores on both ends, developed for reliable transmission of TV, radio and digital signals in wide-band cable installations. It comes with a coax plug and coax jack and is compatible with standard DIN 45 325 connectors.

Advantages

Double shielding and screening greater than 95 dB reduce electromagnetic interference and crosstalk. Gold-plated contacts improve contact reliability and resist corrosion. Ferrites on both ends suppress high-frequency noise. The cable’s construction is digital-capable and suitable for modern audio/video signal requirements.

Suitable for

• Connecting TVs to antenna or cable outlets
• Linking satellite receivers or set-top boxes
• Extending or replacing coaxial leads in wide-band installations
• Radio and other 75 Ω audio/video equipment connections

Key specifications

• Length: 2.5 m
• Impedance: 75 Ω
• Shielding: double shielded, screening > 95 dB
• Contacts: gold-plated
• Connectors: coax plug + coax jack, DIN 45 325 compatible
• Features: ferrite cores at both ends, digital-capable
• Brand: e p, MPN: AB202G, EAN: 4005298014346

How to use

Plug the coax plug into the device (for example TV or receiver) and insert the coax jack into the wall outlet or the matching connector on the other device. Ensure connectors are fully seated to provide optimal shielding and contact. Route the cable to avoid sharp bends and keep it away from power cables to minimise interference.

Recommendations

For best results in wide-band cable installations, use short, direct routing and avoid running the cable parallel to mains wiring. If signal degradation occurs, check connector seating and ferrite positioning before replacing the cable.
