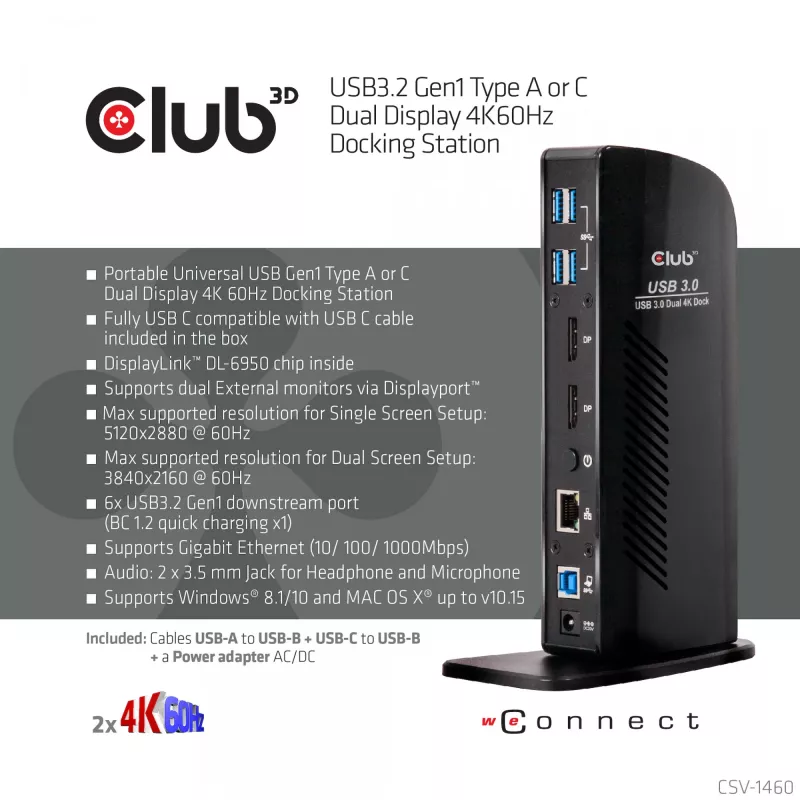

CLUB3D USB3.2 Gen1 Type A or C Dual Display 4K60Hz Docking Station DisplayLink® Certified

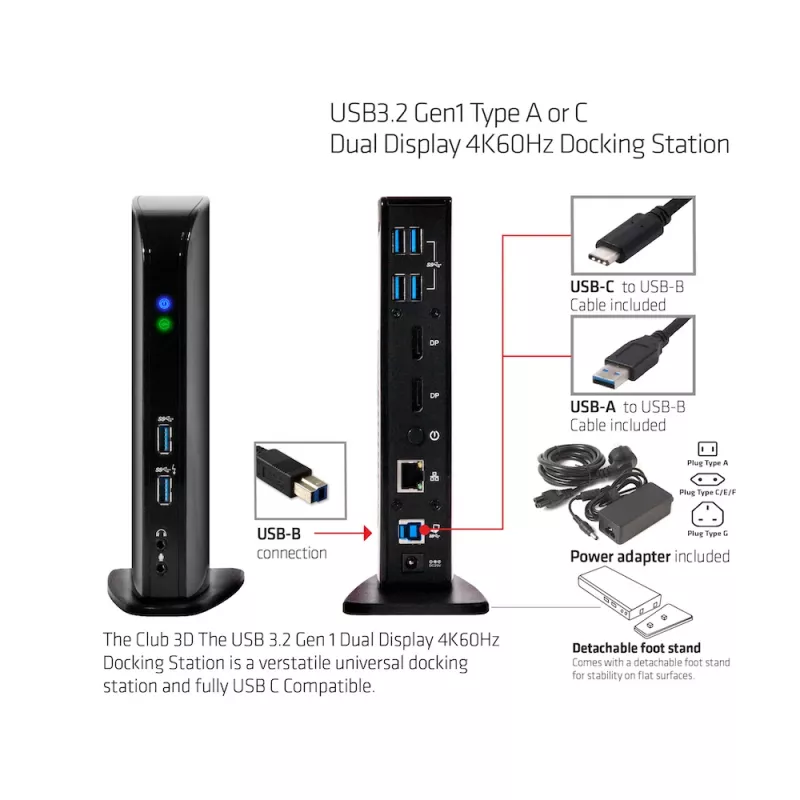

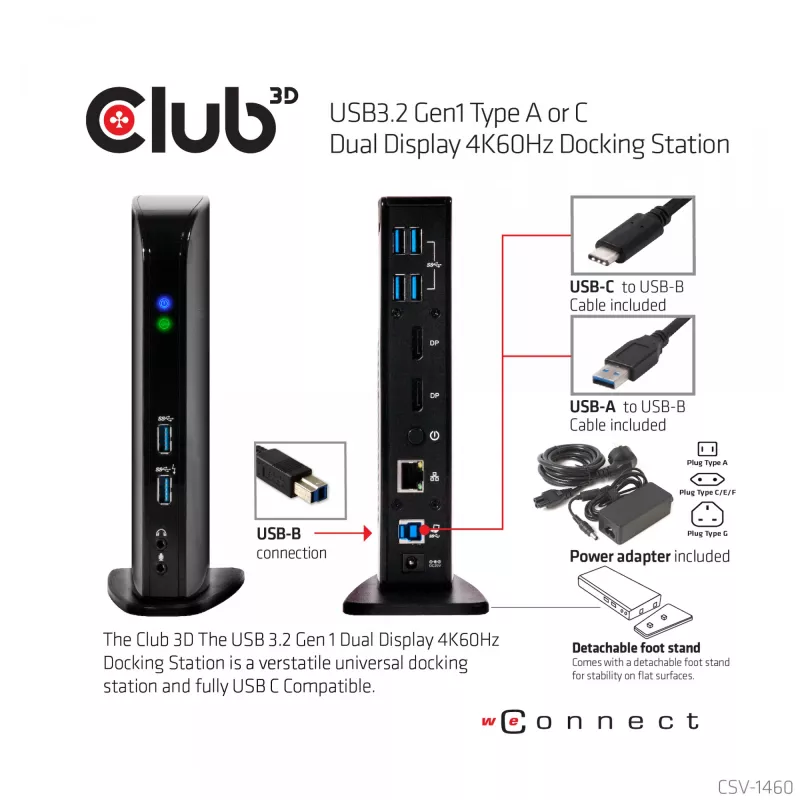

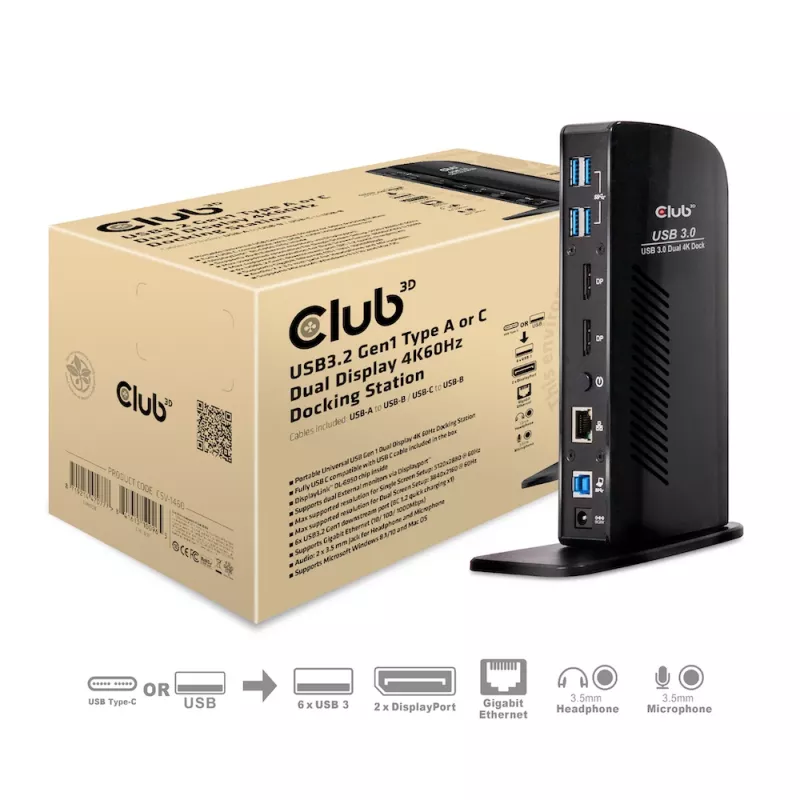

The CLUB3D USB3.2 Gen1 Type A or C Dual Display 4K60Hz docking station (MPN CSV-1460) expands a single USB port into a full workstation hub. It provides six USB 3.0/3.2 Gen1 ports, separate headphone and microphone jacks, a Gigabit Ethernet port and two DisplayPort outputs. The dock is USB‑C compatible and includes a USB‑C cable. Using the DisplayLink DL‑6950 chipset, the dock supports two external displays at up to 3840×2160 (4K) at 60Hz and can drive a single display at up to 5K@60Hz. The unit has a detachable stand and can be positioned horizontally or vertically to fit desk layouts.

Advantages

This docking station converts one USB 3.0/3.2 Gen1 port into multiple high‑speed USB ports and wired LAN, enabling reliable 1 Gbit/s network access. Dual DisplayPort 1.2 (Dual Mode) outputs allow connection of two UHD 4K@60Hz monitors or conversion to HDMI/DVI via passive adapters. The included USB‑C cable ensures compatibility with USB‑C and USB‑A hosts. Its compact design with a removable stand offers flexible placement on a desk.

Suitable for

• Office and home office setups requiring multiple USB peripherals and wired Ethernet

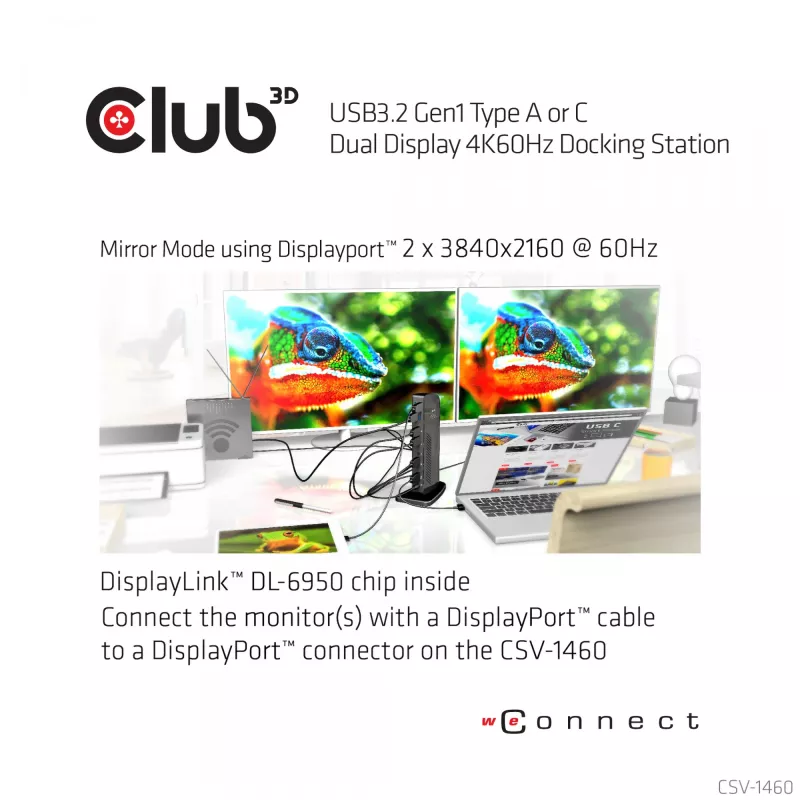

• Users who need to connect two 4K@60Hz monitors to a laptop or tablet via a single USB port
• Power users who require additional audio jacks and high‑speed data ports

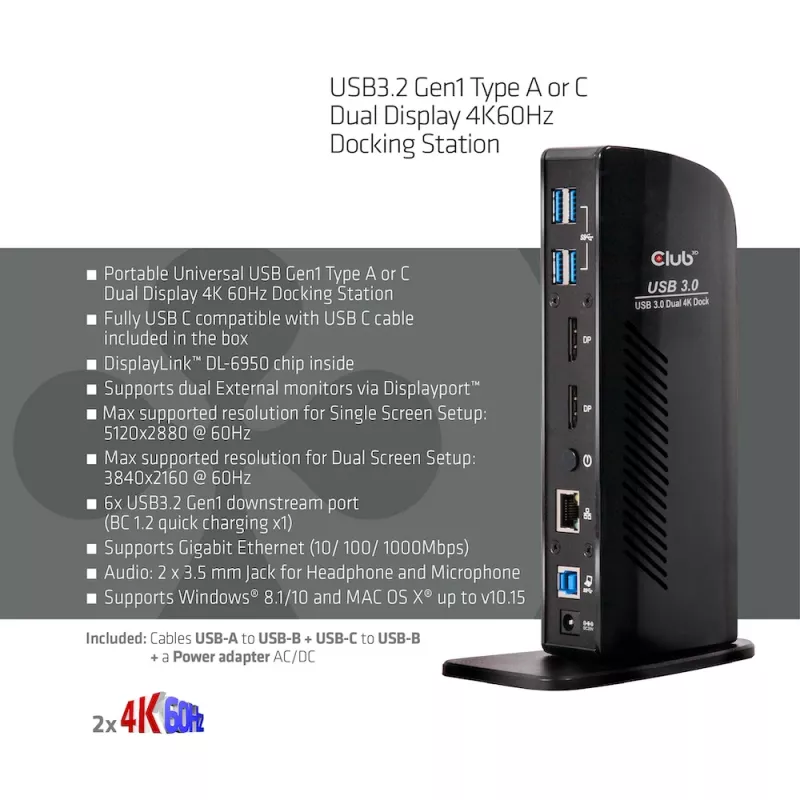

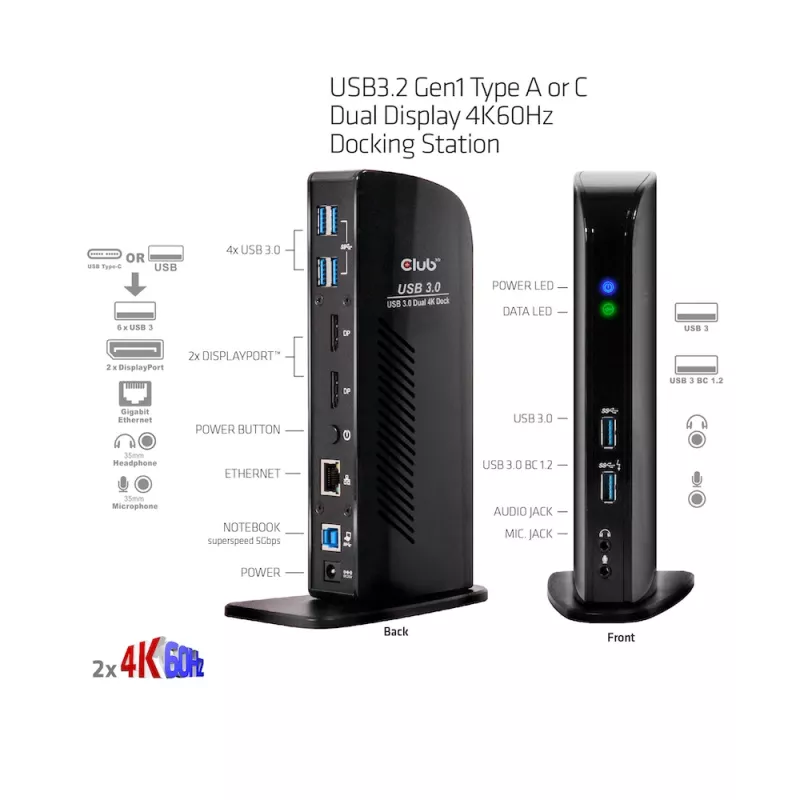

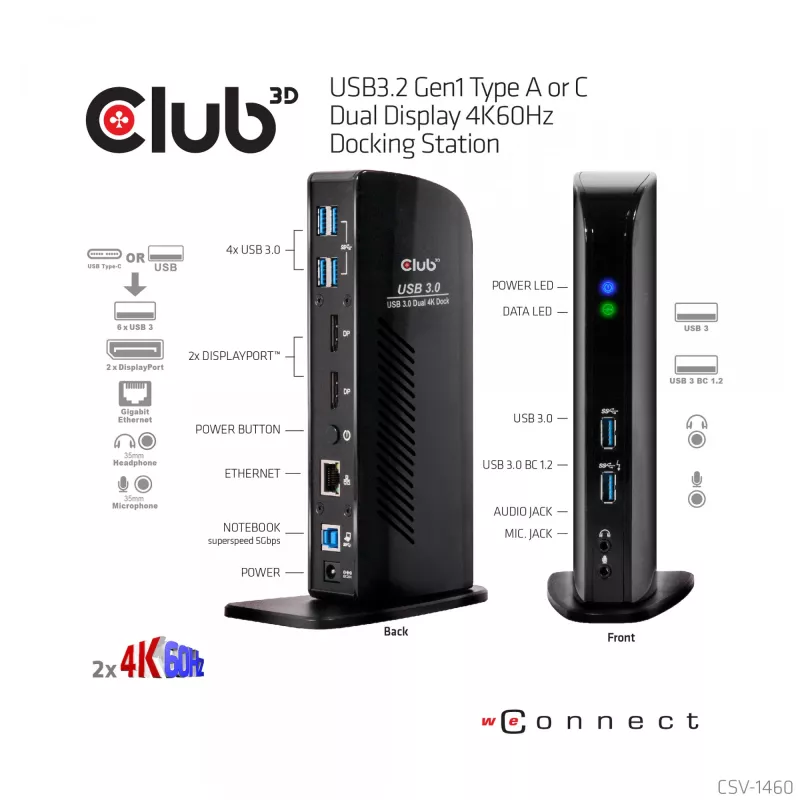

Key specifications

• Model: CLUB3D CSV-1460
• Interface: USB 3.2 Gen1 (USB 3.0) — Type A compatible, USB‑C cable included
• Video outputs: 2 × DisplayPort 1.2 (Dual Mode/DP++); supports 2 × 4K@60Hz or single 5K@60Hz (DisplayLink DL‑6950)
• USB ports: 6 × USB 3.0 / 3.2 Gen1 Type‑A
• Audio: 3.5 mm headphone and microphone jacks
• Ethernet: 1 × Gigabit RJ‑45 (up to 1000 Mbit/s)
• Colour: Black

How to use

Connect the docking station to your host device using the supplied USB‑C cable or a compatible USB‑A to USB cable on a USB 3.0/3.2 Gen1 port. Attach monitors to the DisplayPort outputs; when converting to HDMI or DVI use passive DP++ adapters or cables. Plug peripherals into the USB ports and connect your network cable to the Gigabit Ethernet port. If required by your operating system, install DisplayLink drivers to enable multi‑display support and maximum resolution capability.

Recommendations

For optimal multi‑monitor performance, connect displays using DisplayPort cables and ensure the host port supports USB 3.0/3.2 Gen1. Install the latest DisplayLink drivers for your OS and use an external power adapter when driving high‑resolution configurations or multiple power‑hungry peripherals.
