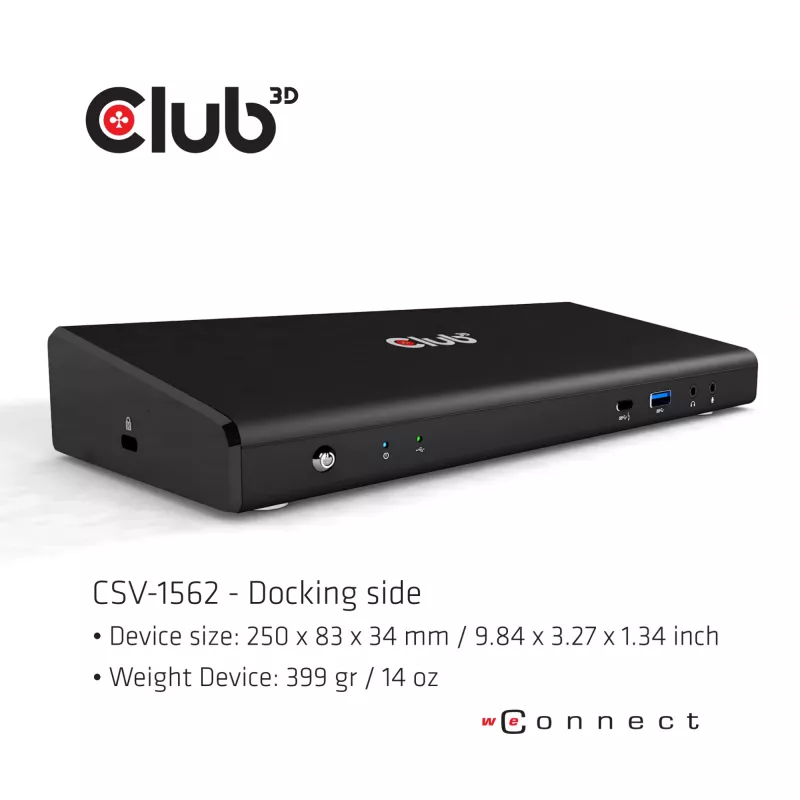

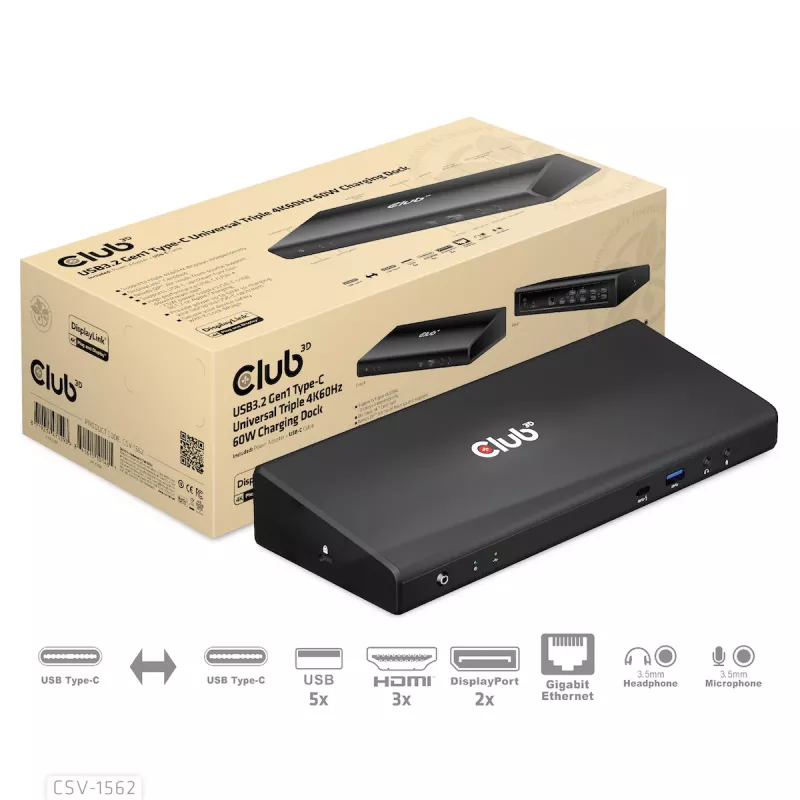

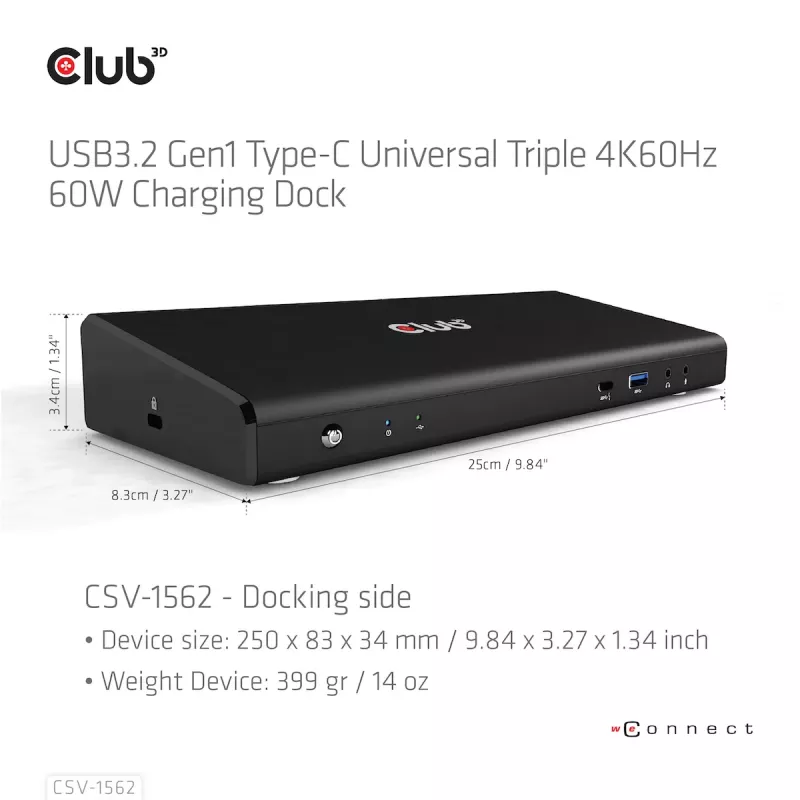

CLUB3D The CSV-1562 is an USB3.2 Gen1 Type-C Universal Triple 4K30Hz Charging Docking Station and is DisplayLink® Certified. The Universal Charging Dock

The CSV-1562 is a USB-C 3.2 Gen 1 Universal Triple 4K Charging Docking Station that expands a single USB-C port into multiple connectivity options. It provides USB 3.2 Gen 1 data transfer up to 5 Gbps, supports up to three external 4K displays simultaneously, and includes wired network, audio and microphone outputs. The dock also supports Power Delivery charging via the upstream USB-C connection and features an optional Kensington Lock for physical security. Connection to a laptop or ultrabook requires one free USB 3.2 Gen 1 port and a single USB cable.

Advantages

The dock combines high-speed USB 3.2 Gen 1 data transfer with multi-display 4K output and network connectivity in a single compact device. Power Delivery charging through the USB-C upstream port lets you charge a connected smartphone, tablet or laptop while using peripherals. The inclusion of audio and microphone outputs and an optional Kensington Lock increases versatility and security for both home and office setups.

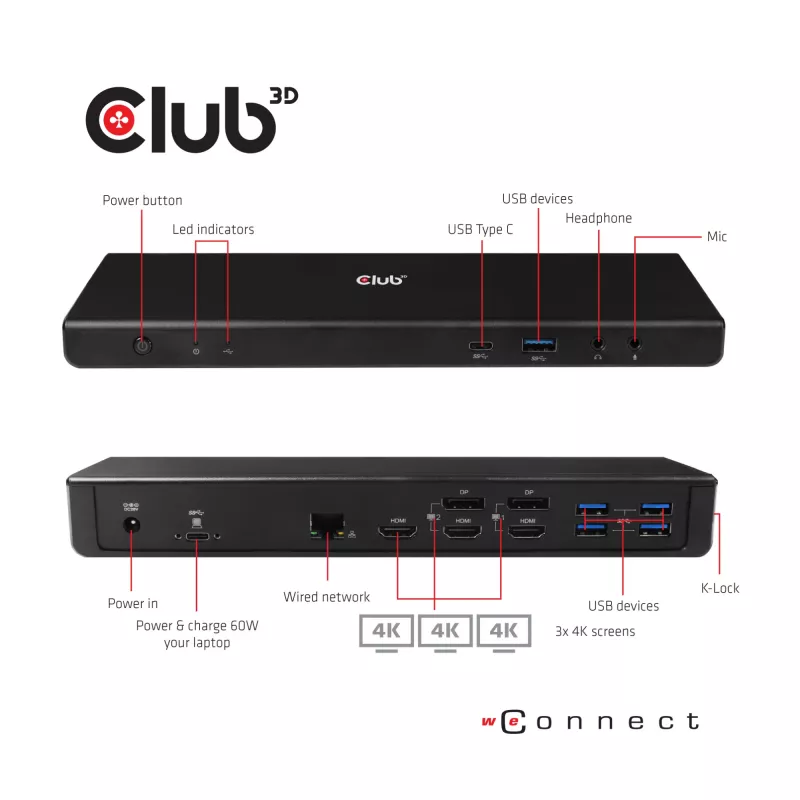

Key specifications

• Interface: USB-C 3.2 Gen 1 (upstream)
• Data bandwidth: up to 5 Gbps
• Display support: up to three external 4K displays simultaneously
• Charging: Power Delivery via USB-C upstream (charges phone/tablet/laptop)
• Network: wired Ethernet port
• Audio: audio output and microphone output
• Security: Kensington Lock option
• Connection: single USB cable to a free USB 3.2 Gen 1 port on laptop/ultrabook

How to use

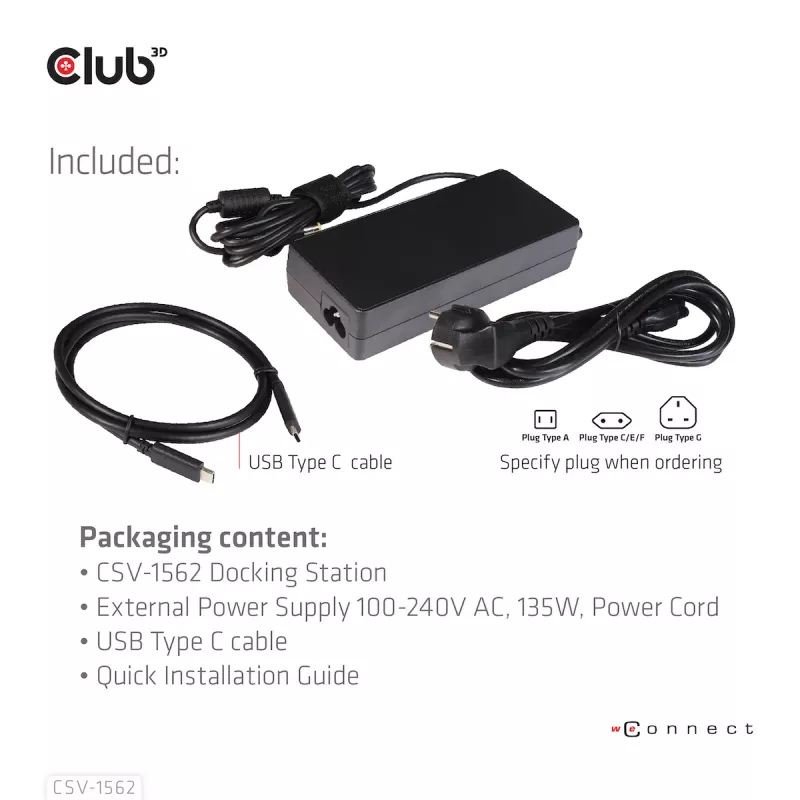

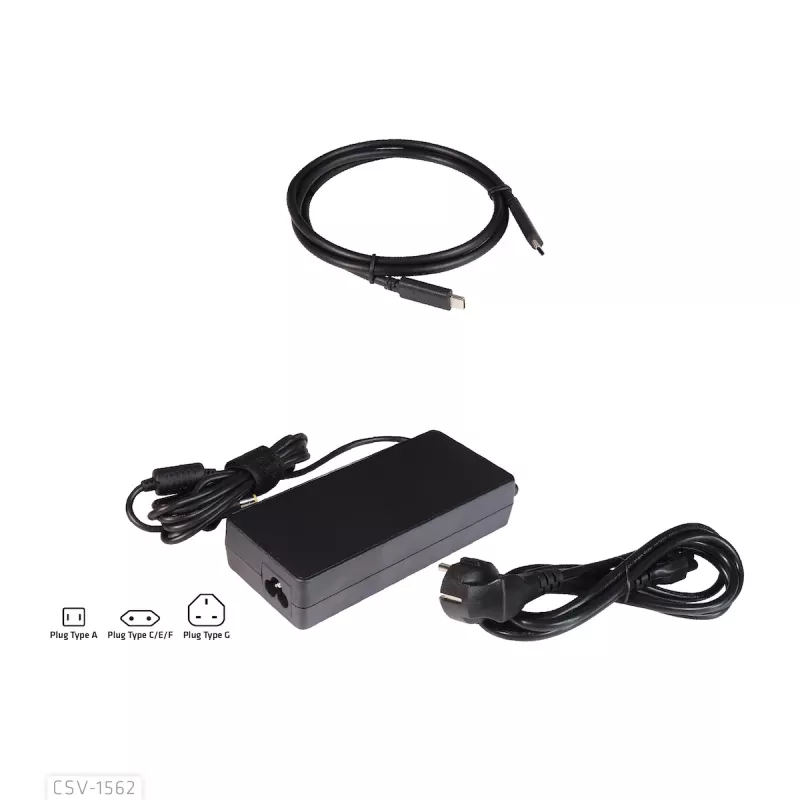

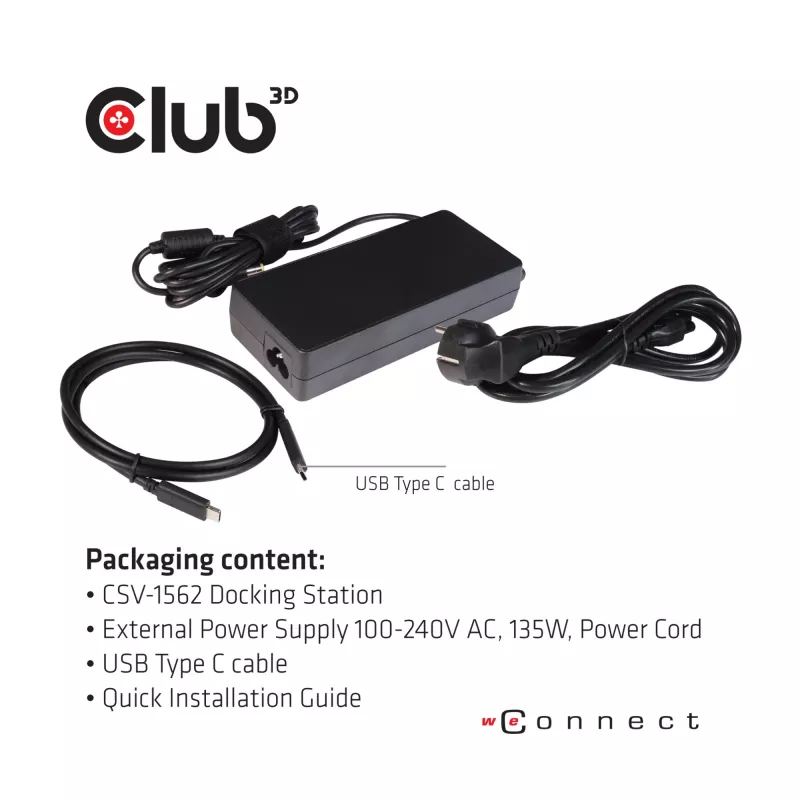

Connect the CSV-1562 to a laptop or ultrabook using the supplied USB-C cable and an available USB 3.2 Gen 1 port. Attach external monitors to the display outputs to configure up to three 4K screens according to your operating system’s display settings. Plug in USB peripherals to the available ports and connect a network cable to the Ethernet port for wired internet access. If needed, enable Power Delivery by connecting a device to the upstream USB-C port to charge a phone, tablet or compatible laptop. Optionally secure the dock with a Kensington Lock.

Recommendations

For optimal performance, use a laptop with a native USB-C 3.2 Gen 1 port and updated display drivers. When running multiple 4K displays, check your host device’s GPU and OS support for multi-stream transport or extended display configurations. Use quality cables and a stable power source for charging and reliable network connectivity.
