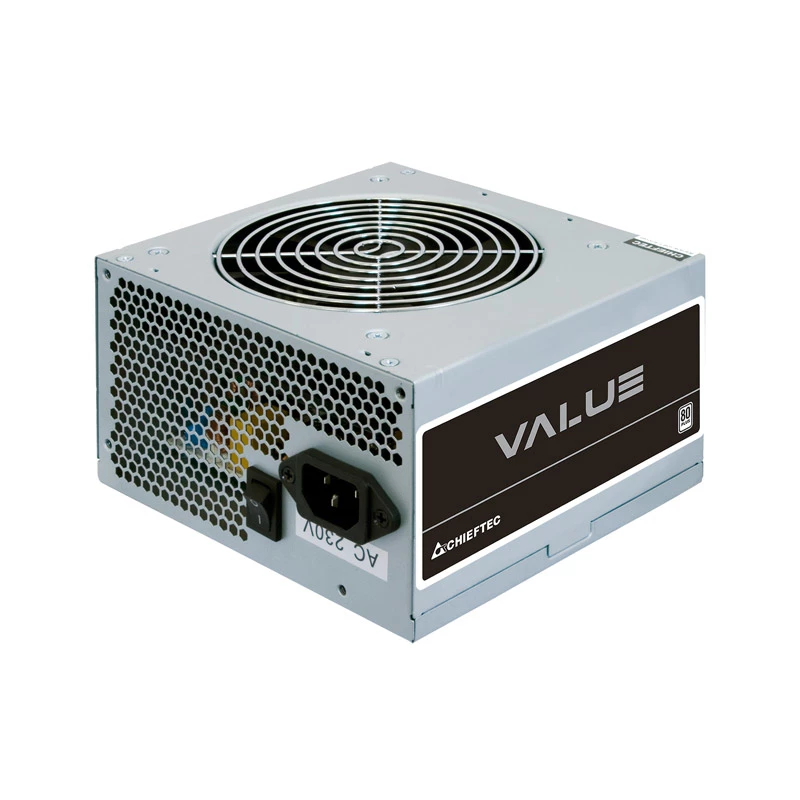

Chieftec Value APB-500B8 power supply unit 500 W 20+4 pin ATX ATX Silver

Chieftec Value APB-500B8 power supply unit 500 W 20+4 pin ATX ATX Silver
Chieftec Value APB-500B8 power supply unit 500 W 20+4 pin ATX ATX Silver
R925
The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan withinstalled thermal board, the PSU runs quietly on full load and provides REAL power, thereby pr... Read More
Stock 100 Code 349214 Brand CHIEFTEC Model APB-500B8 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, September 29
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with
installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB TÜV, EAC amongst many others, it’s the VALUE choice!

Chieftec Value APB-500B8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, TÜV, EAC

Key Highlights
  • 500 W 230 V 50 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC ATX 80 PLUS
  • Active 12 cm
  • Silver
Specifications
80 PLUS certification
80 PLUS
AC input frequency
50 Hz
AC input voltage
230 V
ATX version
2.3
Cabling type
Non-Modular
Certification
CE, CB, TÜV, EAC
Combined power (+3.3V)
130 W
Combined power (+5V)
130 W
Combined power (+5Vsb)
12.5 W
Combined power (-12V)
3.6 W
Compliance certificates
RoHS
Cooling type
Active
Depth
140 mm
Efficiency
80%
EPS power connector (8-pin)
No
Fan diameter
12 cm
Floppy disk drive connector
Yes
Harmonized System (HS) code
84733020
Height
87 mm
Input current
4 A
Max output current (+12V1)
24 A
Max output current (+12V2)
21 A
Max output current (+3.3V)
22 A
Max output current (+5V)
19 A
Max output current (+5Vsb)
2.5 A
Max output current (-12V)
0.3 A
Motherboard power connector
20+4 pin ATX
Number of fans
1 fan(s)
Number of SATA power connectors
3
On/off switch
Yes
PCI Express power connectors (6+2 pin)
1
Peripheral (Molex) power connectors (4-pin)
2
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power protection features
Over voltage, Overload, Short circuit, Under voltage
Power supply unit (PSU) form factor
ATX
Product colour
Silver
Purpose
PC
Total power
500 W
Width
150 mm

Leaflet

Open Leaflet
