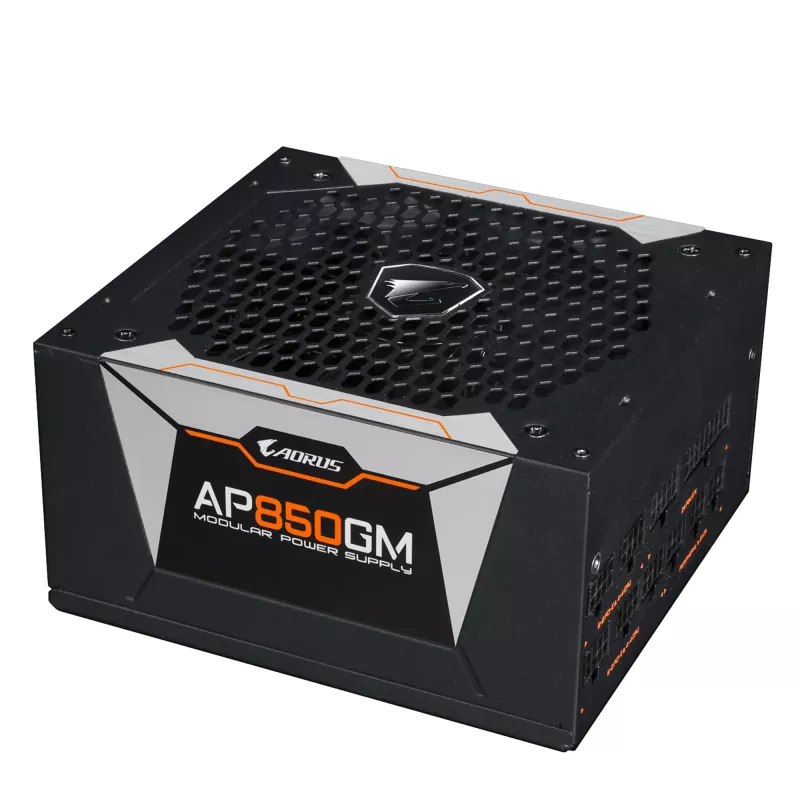

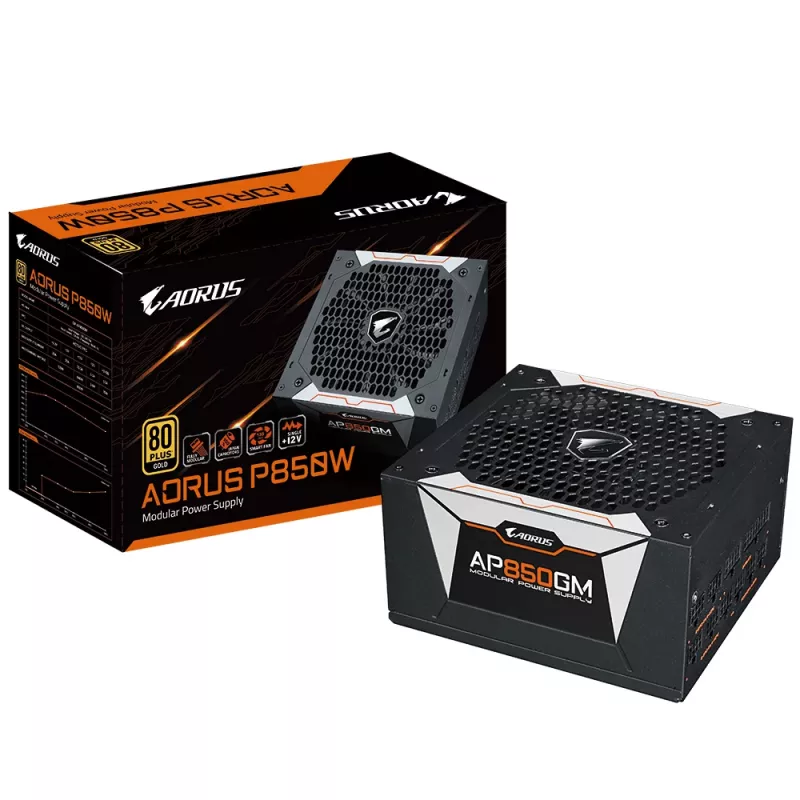

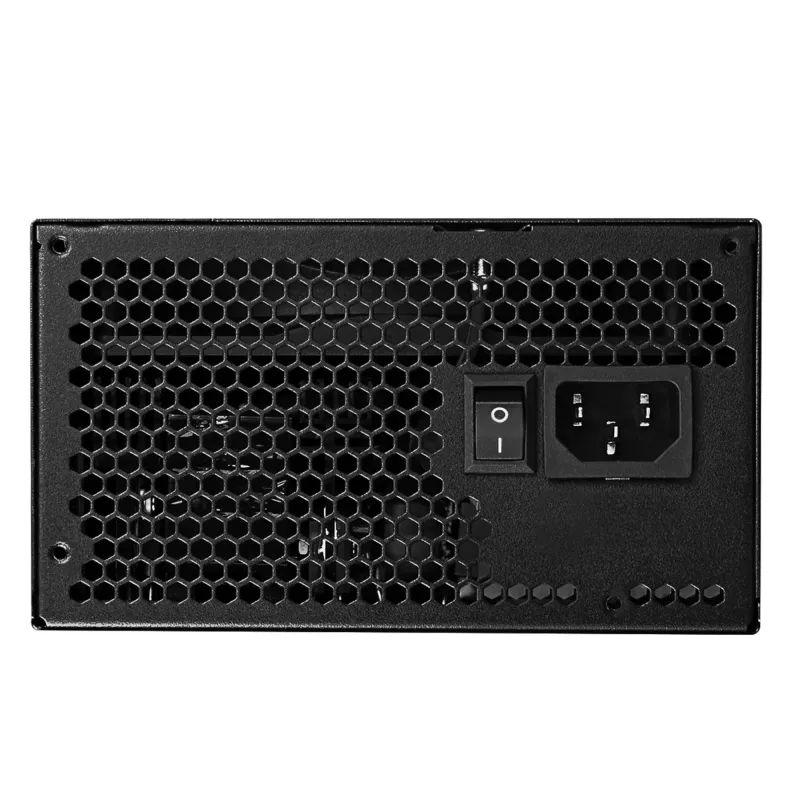

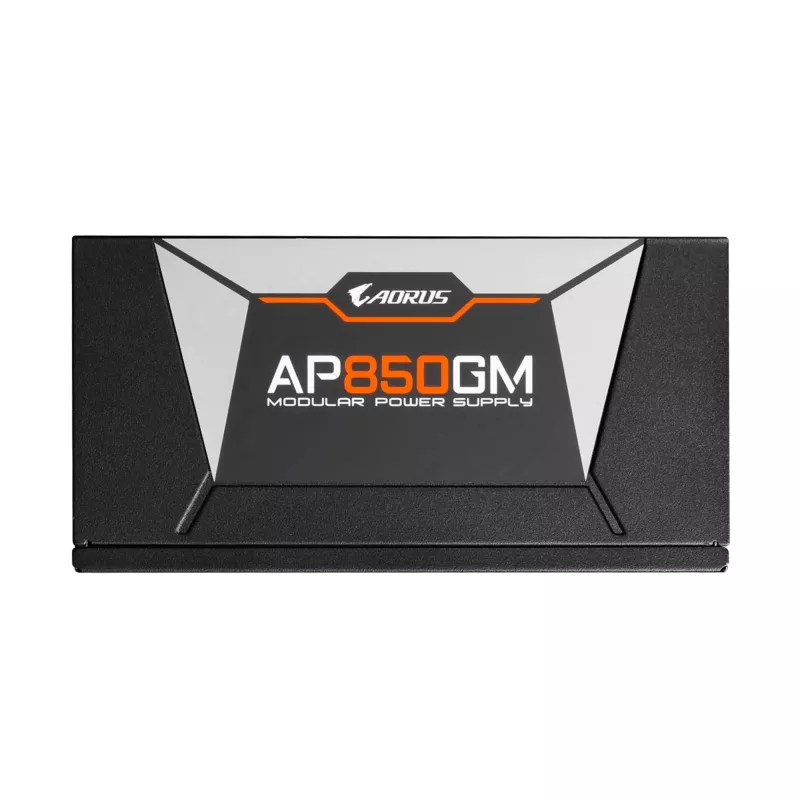

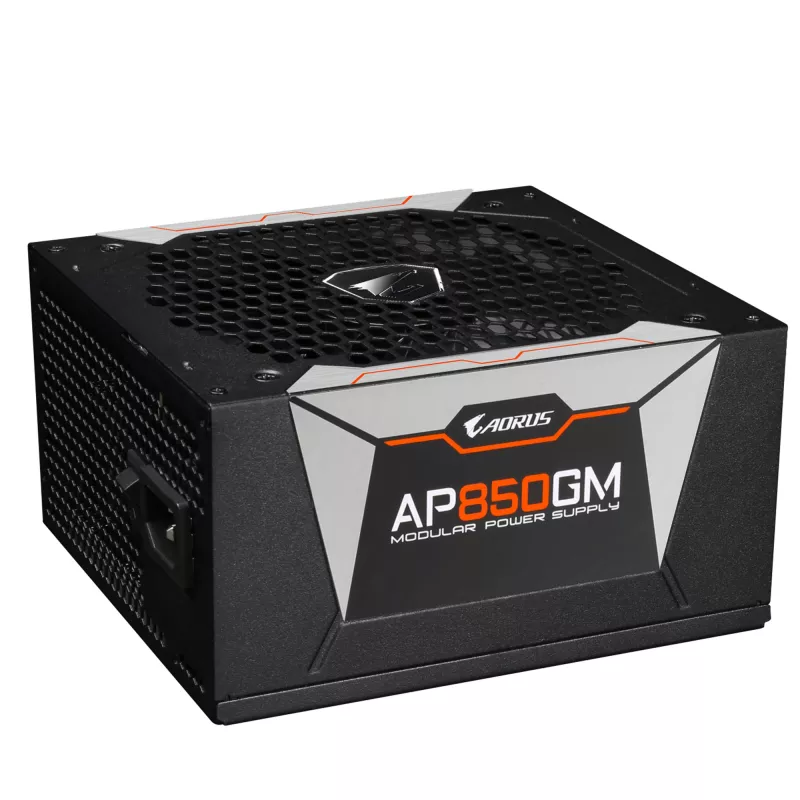

GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black

GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
GIGABYTE GP-AP850GM power supply unit 850 W 20+4 pin ATX ATX Black
R2,941
High Quality 100% Japanese CapacitorsAll capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.135mm Smart FanFan speed will be adjusted according to the system load. And the fan will stop when the system is idle or under low load ... Read More
Stock 32 Code 1181016 Brand GIGABYTE Model 28200-AP85GM-1EUR Warranty 2 Years

Shipping & Returns

Estimated delivery Monday, October 12
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
High Quality 100% Japanese Capacitors
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

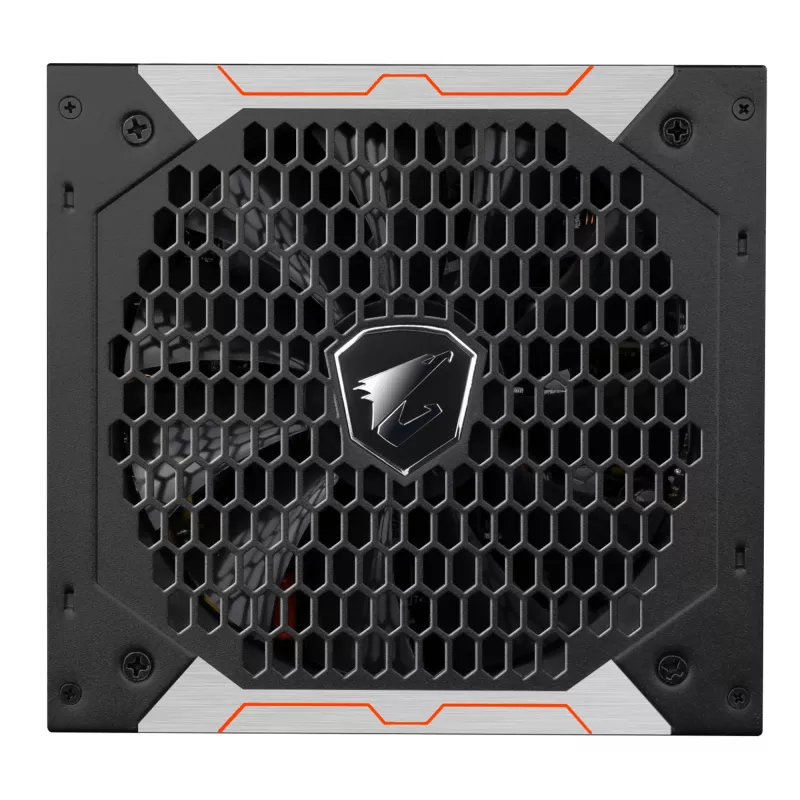

135mm Smart Fan
Fan speed will be adjusted according to the system load. And the fan will stop when the system is idle or under low load (less than 20% load). The 2 ball bearing structure provides longer life time.

2 ball bearing is the most durable fan construction with a durability of over 50,000 hours. The life of the 2 ball bearing is more than 5 years.

80 Plus Gold Certified
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

Protection
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

GIGABYTE GP-AP850GM. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,550,650,750 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 13.5 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 160 mm, Height: 86 mm

Key Highlights

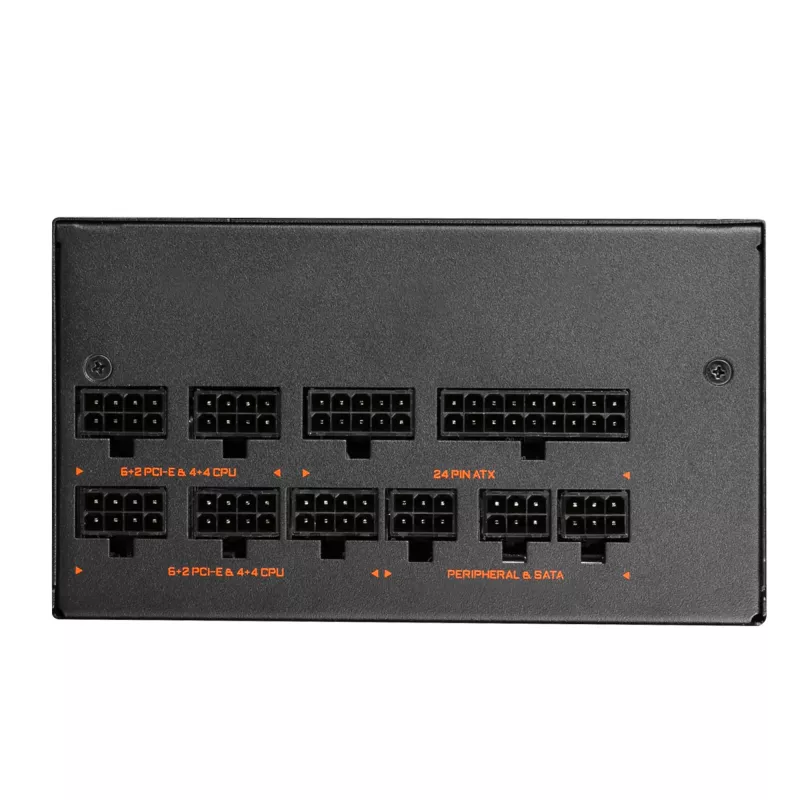

  • Fully Modular Design
  • High quality 100% Japanese Capacitors
  • 135mm 2 ball bearing smart fan with fan stop function
  • 80 PLUS Gold certified: above 90% efficiency at 50% load
  • Single +12V rail
  • OCP/OTP/OVP/OPP/UVP/SCP protection
  • 10 years warranty (Adjusted according to different regions)
  • 850 W 100 - 240 V 47 - 63 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC ATX 80 PLUS Gold
  • 13.5 cm
  • Black
Specifications
80 PLUS certification
80 PLUS Gold
AC input frequency
47 - 63 Hz
AC input voltage
100 - 240 V
ATX power connector (20+4 pin)
Yes
ATX version
2.31
Cabling type
Fully-Modular
Combined power (+12V)
846 W
Combined power (+3.3V)
120 W
Combined power (+5V)
120 W
Combined power (+5Vsb)
15 W
Combined power (-12V)
3.6 W
CPU power connector (4+4 pin)
Yes
Depth
160 mm
Efficiency
90%
EPS power connector (8-pin)
Yes
Fan diameter
13.5 cm
Fan location
Top
Floppy disk drive connector
Yes
Floppy drive power connector
2
Harmonized System (HS) code
84733020
Height
86 mm
Hold time
16 ms
Input current
10 A
Max output current (+12V)
70.5 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.3 A
Mean time between failures (MTBF)
100000 h
Motherboard power cable length
65 cm
Motherboard power connector
20+4 pin ATX
Number of fans
1 fan(s)
Number of SATA power connectors
6
On/off switch
Yes
Package type
Box
PCI Express connector
Yes
PCI Express power connectors (6+2 pin)
6
Peripheral (Molex) power connectors (4-pin)
6
Power factor
0.9
Power Factor Correction (PFC) type
Active
Power Good signal delay range
100 - 150 ms
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power supply unit (PSU) form factor
ATX
Product colour
Black
Purpose
PC
SATA power cable length
450,550,650,750 mm
Total power
850 W
Width
150 mm
