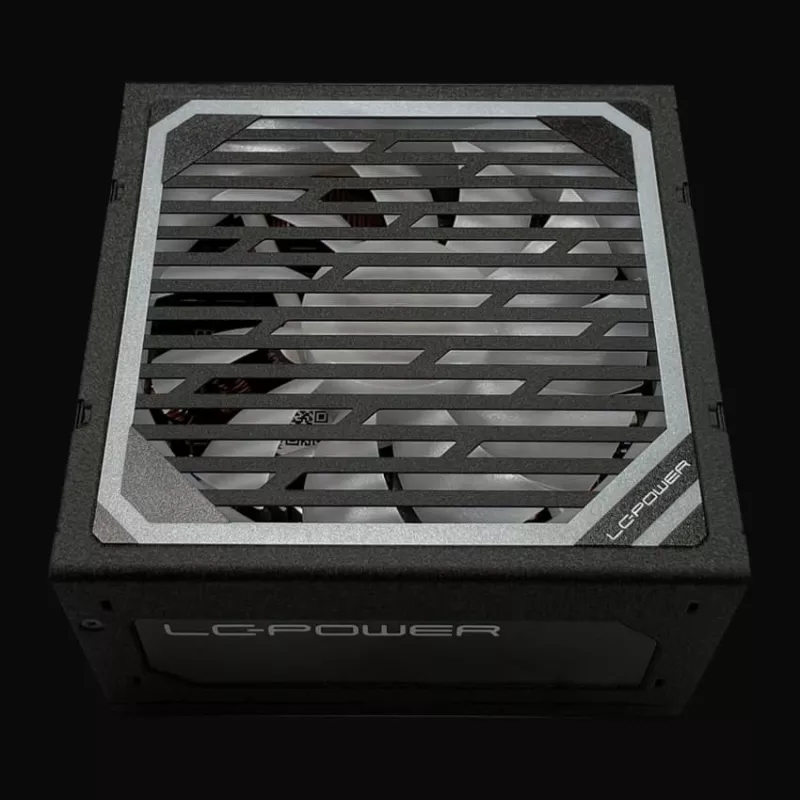

Power supply unit LC-Power LC6750M V3.1 750 W 20+4 pin ATX 80 PLUS Gold

ATX 3.1 with 750 watts and 135 mm fan The LC6750M V3.1 is an 80 PLUS GOLD-certified, fully modular ATX power supply with PCIe 5.1, which ensures high performance and stability in the system. The Super Silent Modular Series LC6750M V3.1 power supply offers an impressive 750 watts of power and is a reliable power supply solution for a wide range of applications. Equipped with a quiet 135mm fan, it works efficiently and ensures optimum cooling. Power supplies for demanding systems The LC6750M V3.1 features a 20+4-pin motherboard connector that is compatible with most motherboards, as well as two 4+4-pin motherboard 12V connectors, nine SATA and five PATA, which ensure a stable power supply for powerful CPUs, hard disks and drives. For graphics cards, the LC6750M V3.1 has an excellent four PCI Express 6+2 pin connectors and a powerful PCI Express 5.1 12+4-pin connector, providing a direct and reliable power supply for multiple GPUs. Fully modular & ribbon cable Equipped with a fully modular cable management system, the LC6750M V3.1 offers users optimum flexibility when installing and configuring their system. The Super Silent Modular Series LC6750M V3.1 power supply comes with high-quality black ribbon cables, which not only offer an aesthetically pleasing appearance, but also enable simple and clean installation. Special features ATX form factor 750 W 135 mm fan fully modular cable management black sleeved cables 80 PLUS GOLD certified high efficiency of up to 90 % Full range: 100 – 240 V DC-to-DC technology powerful +12 V line (62.4 A) 4x PCIe 6+2-pin 1x PCIe 5.1 12+4-pin Specifications: Power supply series: Super Silent Modular series ATX standard: ATX 3.1 Dimension power supply: 86 × 150 × 150 mm Dimension packaging: 115 × 275 × 200 mm Weight (product/total): 2.46 / 2.78 kg +3.3V: 20.0 A +5V: 20.0 A Max. combined: 100.0 W +12V: 62.4 A Max. combined: 748.8 W Power: 750 W Certification: 80 PLUS GOLD PFC: active Efficiency: up to 90 % Standby consumption: Temperature-dependent control for enclosures: Yes Safety circuits: OVP, OCP, OPP, SCP, UVP Full Range: 100 - 240 V Prüfzeichen: CE, TÜV Material: metal, plastic Colour: black Barcode: 4262443281033 Manufacturer code: LC6750M V3.1 Connections: 20+4-pin mainboard: 1× 650 mm 4+4-pin mainboard 12V (EPS): 2× 650 mm PCIe 5.1 12+4-pin: 1× 600 mm PCIe 6+2-pin: 2× 675 mm / 2× 750 mm SATA: 3× 500 mm / 3× 650 mm / 2× 800 mm / 2× 950 mm PATA: 1× 350 mm / 2× 500 mm / 1× 650 mm / 1× 800 mm

• Customs tariff number: 3926909790
• Height packaging: 0.200m
• Packaging volume: 0.0063m³
• Output voltage: 3.3 - 12.0V
• Length packaging: 0.170m
• Manufacturer information: Silent LC Power
  Formerweg 8-12
  47877 Willich
  Deutschland
  [email protected]
• Country of origin: Taiwan
• Im Angebot: No
• Stark reduziert: No
• Manufacturer No.: LC6750M V3.1
• EAN Barcode: 4262443281033
• Modular: Yes
• 80 PLUS: Gold
• Form factor: ATX 3.1
• Weight: 2,830kg
• Width packaging: 0.275m
• Brand: LC-Power
• Colour: Black
• Max. output power: 750W

How to use

Install the LC-Power LC6750M V3.1 into a compatible ATX case following standard PSU mounting procedures. Connect the 20+4 pin ATX cable to the motherboard main power socket and attach additional peripheral and PCIe power connectors as required by your components. Ensure the input voltage selector (if present) matches your mains supply or use the unit in auto-range mode where available, then power on the system and verify stable operation.

Recommendations

Use this PSU with systems whose combined component power draw remains within the 750 W rating, allow adequate case airflow for cooling, and pair with compatible connectors and high-quality cables. For systems with high-end multi-GPU or extreme overclocking, verify total power requirements before selection.
