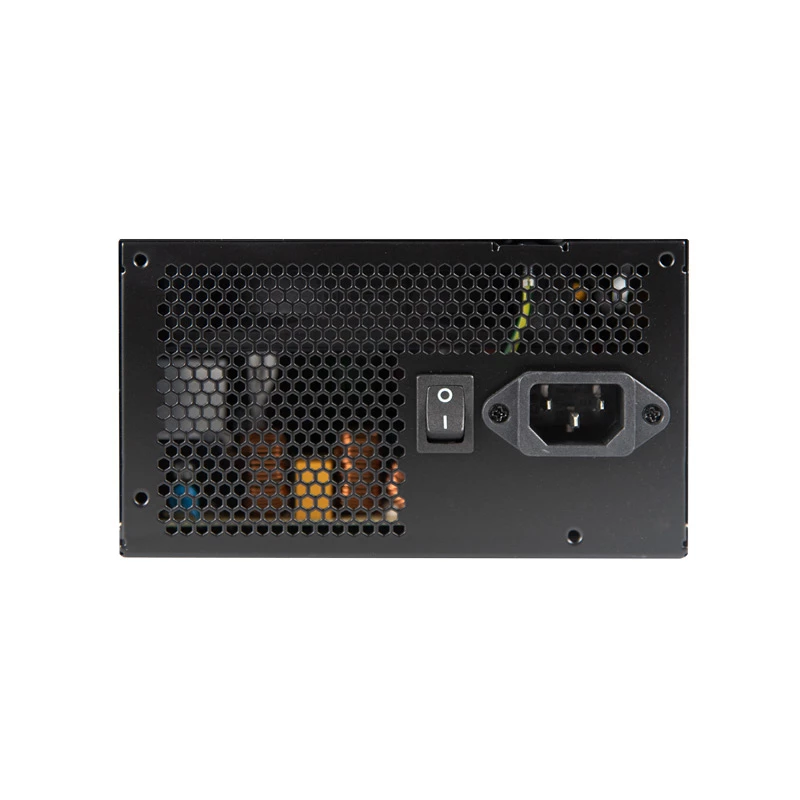

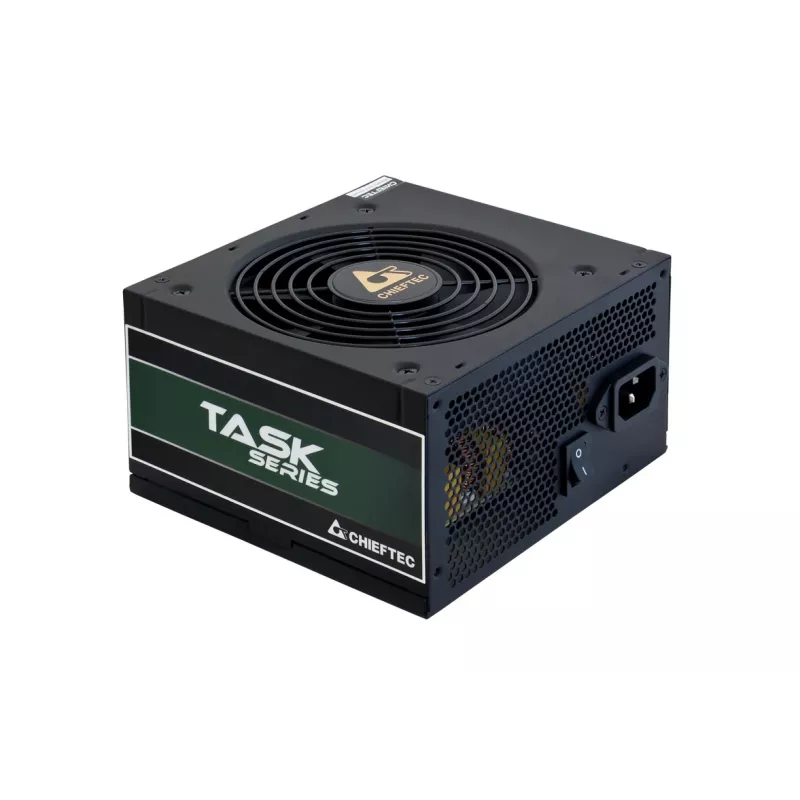

Chieftec Task TPS-700S power supply unit 700 W 20+4 pin ATX ATX Black

The Chieftec Task TPS-700S is a 700 W power supply unit designed for desktop PCs. It delivers stable power with 80 PLUS Bronze efficiency and includes modern protection features for reliable operation. Cable lengths are extended for easier routing in larger cases, and a 120 mm fan provides active cooling. The unit supports 100–240 V input and complies with common safety and environmental standards.

Advantages

The PSU offers certified 80 PLUS Bronze efficiency to reduce wasted energy and heat. Extended motherboard and CPU cable lengths (up to 650 mm) facilitate neat cable management in spacious cases. Integrated protections and international certifications ensure safe and compliant operation, while a 120 mm fan maintains adequate cooling during typical desktop use.

Suitable for

• Mid-tower and full-tower desktop builds
• Office and home PCs requiring stable 700 W supply
• Systems where longer motherboard and CPU cables improve cable routing

Key specifications

• Total power: 700 W
• Motherboard power connector: 20+4 pin ATX
• 80 PLUS certification: 80 PLUS Bronze

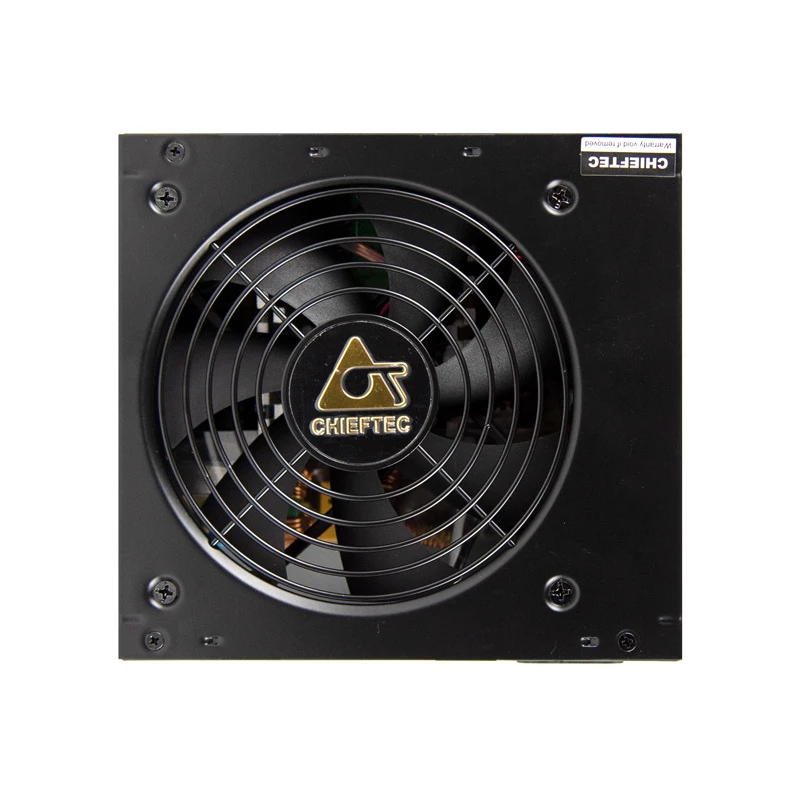

• Fan diameter: 120 mm
• Input voltage/frequency: 100–240 V, 47–63 Hz
• Weight: 1.74 kg
• Color: Black
• Compliance: RoHS, ErP, CE, CB, EAC, TUV

How to use

Install the Chieftec Task TPS-700S into a compatible ATX power supply bay in your PC case and secure it with the supplied screws. Connect the 20+4 pin ATX connector to the motherboard and route SATA and peripheral cables to drives and devices as required. Ensure the mains input matches the PSU’s 100–240 V range and connect to a properly grounded outlet. Power on the system and verify stable operation.

Recommendations

For reliable operation, keep the PSU intake and exhaust areas free of dust, ensure adequate case airflow, and verify that total system power draw does not exceed the 700 W rating. Use a surge protector or UPS where appropriate.
