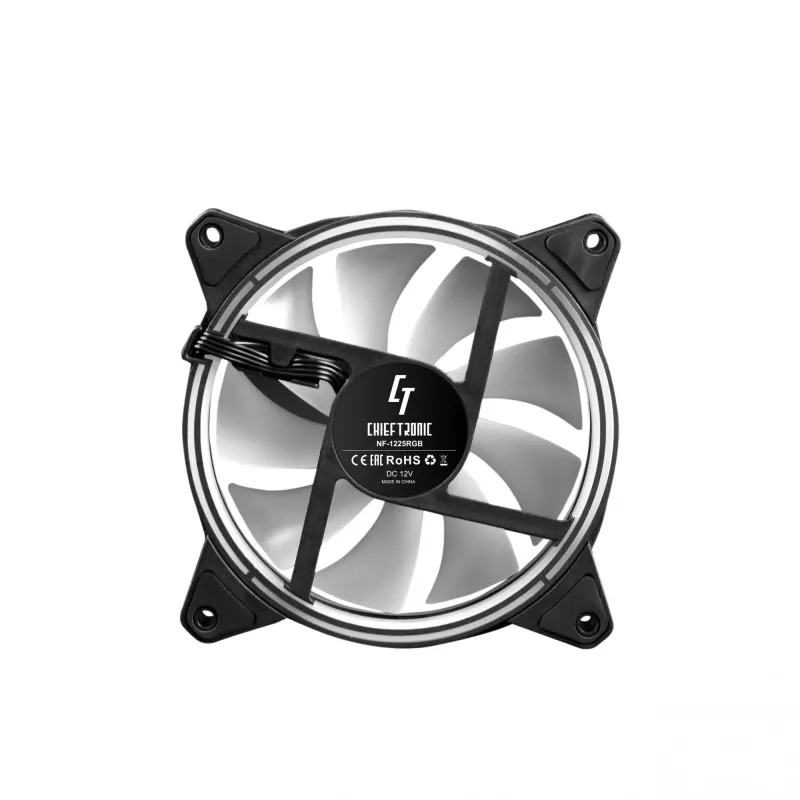

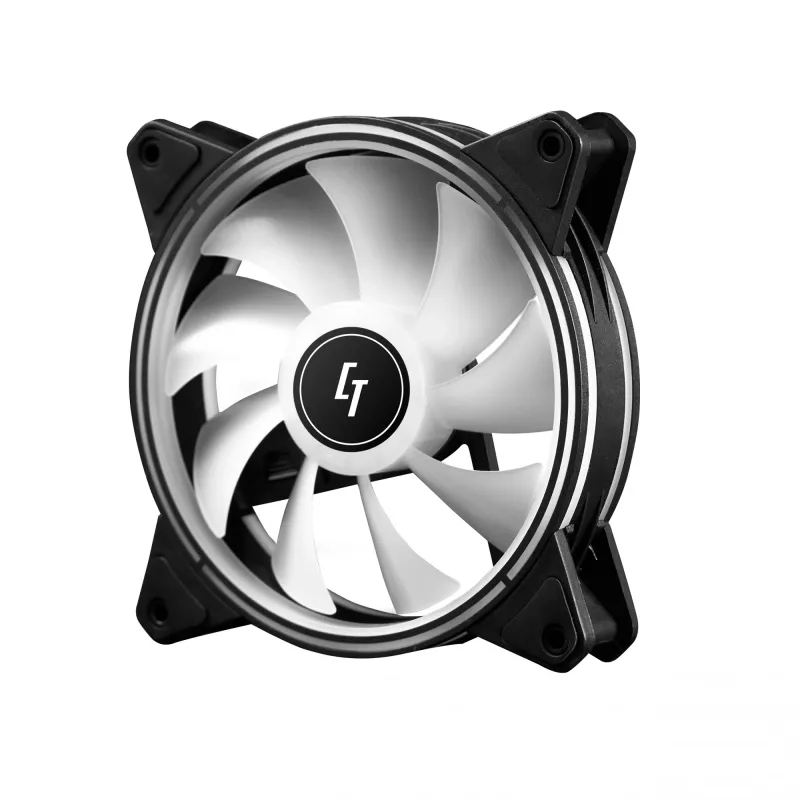

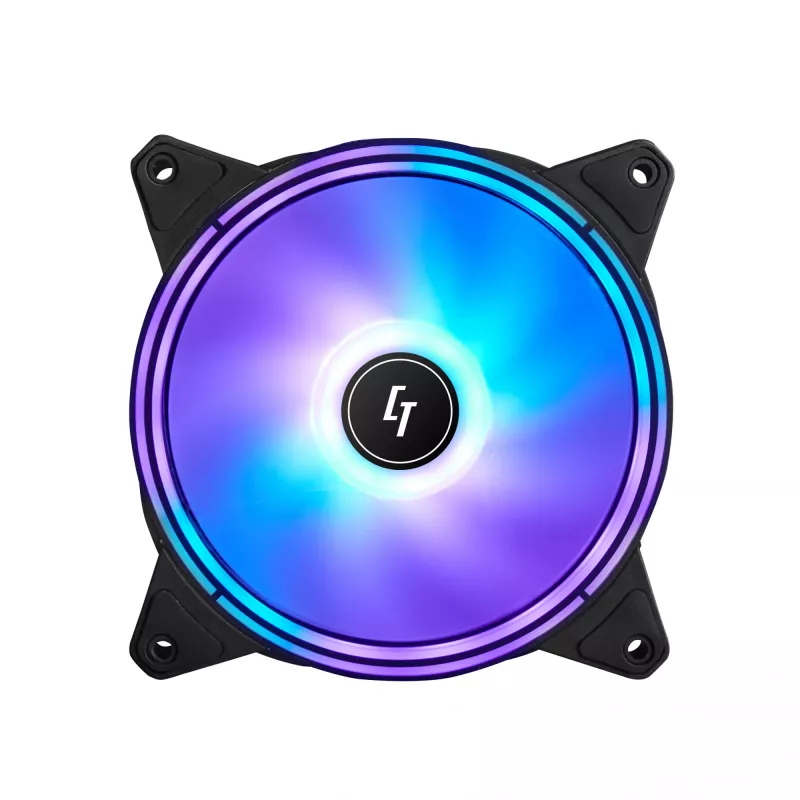

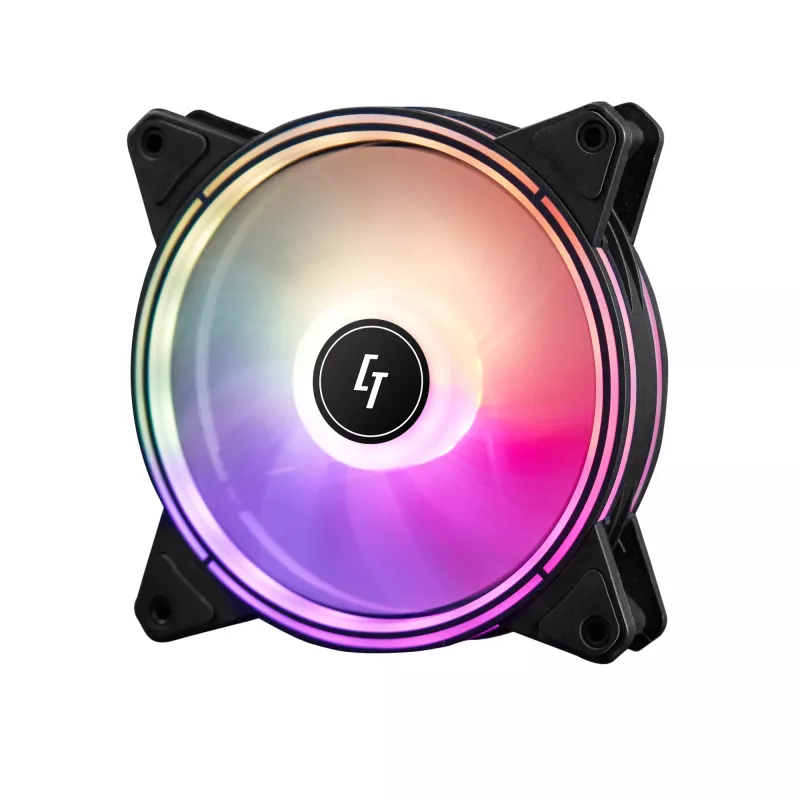

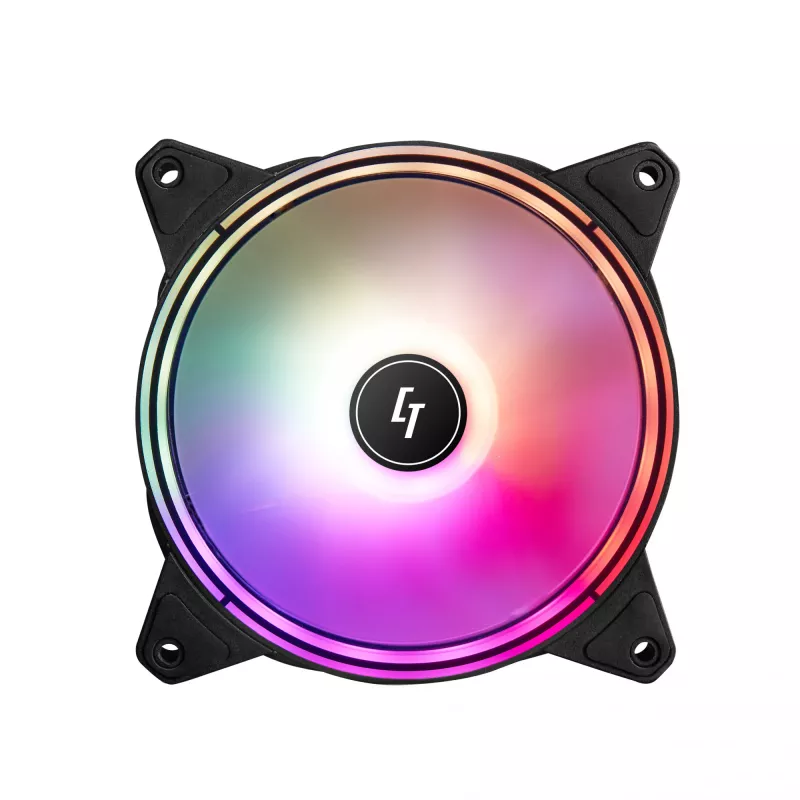

Chieftec NF-1225RGB computer cooling system Computer case Fan 12 cm Black 1 pc(s)

The CHIEFTRONIC NOVA RGB Fan (Chieftec NF-1225RGB) is a 120 mm case fan with a dual-ring A-RGB lighting system. The translucent blades and two concentric LED rings (16 LEDs inner + 16 LEDs outer) provide even illumination across the fan. The black frame includes additional design elements on the outer ring for a distinctive look. The fan uses a hydraulic bearing for quieter operation and is intended for PC case cooling.

Advantages

The fan offers smooth, full RGB lighting from dual LED rings and translucent blades that distribute light evenly. It supports PWM speed control via a 4-pin connector for motherboard-controlled fan curves and includes a 3-pin +5V A-RGB connector compatible with major syncing technologies (ASUS AURA SYNC, MSI MYSTIC LIGHT, ASROCK POLYCHROME, GIGABYTE RGB FUSION). Anti-vibration pads reduce noise and vibration during operation.

Suitable for

• Standard ATX, micro-ATX and mini-ITX PC cases requiring 120 mm fans
• Systems where synchronized A-RGB lighting is desired
• Cooling intake or exhaust positions in desktop computer builds

Key specifications

• Model: Chieftec NF-1225RGB (CHIEFTRONIC NOVA RGB)
• Fan diameter: 120 mm
• Maximum speed: 1600 RPM
• Maximum static pressure: 2.2 mmH2O
• Operating voltage range: 7–13.2 V
• Bearing type: Hydraulic bearing

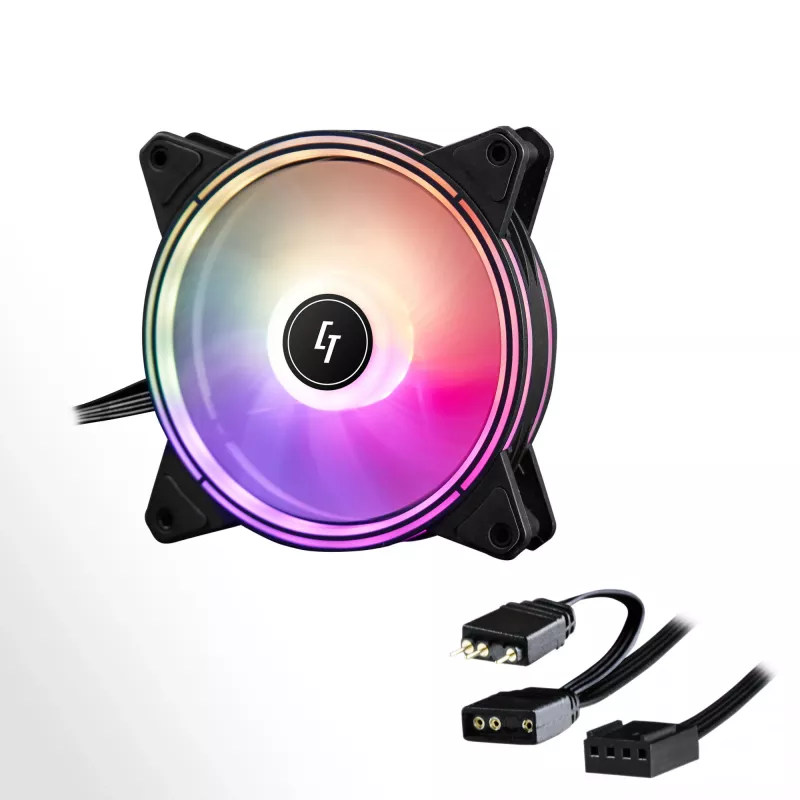

• Connectors: 4-pin PWM (power & speed control) + 3-pin 5V A-RGB (lighting)
• Frame color: Black

How to use

Install the fan in a compatible 120 mm fan mount in your PC case, securing it with the supplied screws. Connect the 4-pin PWM cable to a motherboard fan header to allow RPM control and automatic fan curves. Connect the 3-pin +5V A-RGB cable to a compatible 5V addressable RGB header on the motherboard or to an A-RGB controller to manage lighting effects and synchronization.

Recommendations

For optimal cooling and noise balance, place the fan in intake or exhaust positions according to your case airflow plan, enable PWM control in BIOS or software, and use motherboard RGB software for synchronized lighting. Ensure the A-RGB header matches 5V addressable RGB standards before connecting.
